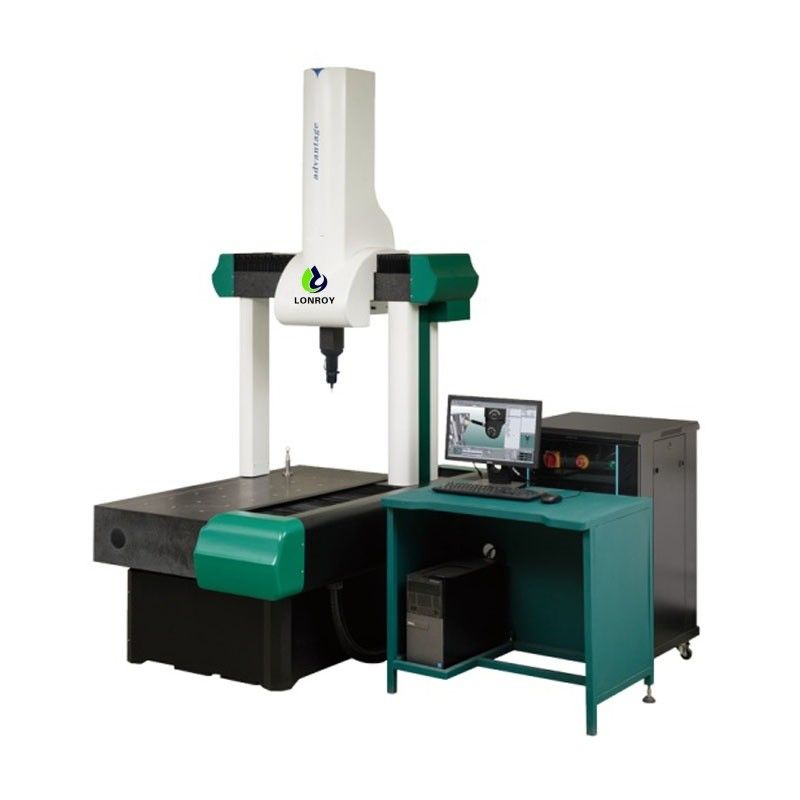

DIN EN ISO 10360CNC CMM Coordinate Measuring Machine
1. Summary
Coordinate measuring machine combines single-point probing and analog scanning in a single high performance measuring machine also can equipped with contact and non-contact probe system. Based on the new generation of controller combines and optimizes temperature and accuracy compensation systems and advanced algorithms to support high-speed, high-accuracy analog open and closed loop scanning.
2. Design Characteristic
- Granite fixed worktable, all three axes are made of high performance granite, good temperature characteristic, have the same coefficient of thermal expansion.
- Granite worktable with integral “dovetail” guide in X axis, eliminate the pitch and yaw, also provides superior motion stability.
- Z axis air-balance with self-protection, improve motion capability.
- Advanced synchronous belt drive system with non-slip and high stiffness, ensures high stability, lower noise.
- High precise, rigid, and pre-loaded air bearings on all axes, can ensure the guidance never be damped
- Transmission system uses high-power DC servo motor and new double level tape reducer to ensure rapid and accurate axes movement.
- RENISHAW steel scale and readhead
- Famous parts from all over the world are used in every important sub systems
3. Technical Description
Coordinate Measuring Machine (CMM)
- High performance granite fixed worktable and all three axes are made in TAIWAN.
- RENISHAW stainless steel scale and readhead, Resloution: 0.5um
- Pneumatic system made
- Synchronous belt drive system
- Precision filter
- Full screen and high soft cable towline
|
Code
|
20031503
|
20031505
|
20031507
|
|
Model
|
LR-575
|
LR-7106
|
LR-9128
|
|
Resolution(μm)
|
0.5
|
0.5
|
0.5
|
|
Indication Error MPEE(μm)*
|
1.8＋3.3L/1000
|
2.0＋3.3L/1000
|
2.3＋3.3L/1000
|
|
Probing Error MPEP(μm) *
|
1.8
|
2.0
|
2.3
|
|
Measuring Range(Dx*Dy*Dz, mm)
|
500*700*500
|
700*1000*600
|
900*1200*800
|
|
Load Capacity(kg)
|
1000
|
1200
|
1500
|
|
Dimension(Lx*Ly*Lz, mm)
|
1292*1789*2426
|
1492*2089*2626
|
1692*2289*3026
|
|
Weight(kg)
|
approx. 1080 kg
|
approx. 1800 kg
|
approx. 2240 kg
|
|
Code
|
20031509
|
20031511
|
20031513
|
|
Model
|
LR-10128
|
LR-10158
|
LR-121510
|
|
Resolution(μm)
|
0.5
|
0.5
|
0.5
|
|
Indication Error MPEE(μm)*
|
2.5＋3.3L/1000
|
2.8＋3.3L/1000
|
3.5＋3.3L/1000
|
|
Probing Error MPEP(μm) *
|
2.5
|
2.8
|
3.5
|
|
Measuring Range(Dx*Dy*Dz, mm)
|
1000*1200*800
|
1000*1500*800
|
1200*1500*1000
|
|
Load Capacity(kg)
|
1600
|
1700
|
1800
|
|
Dimension(Lx*Ly*Lz, mm)
|
1790*2430*3130
|
1790*2730*3130
|
1990*2730*3530
|
|
Weight(kg)
|
approx. 3000 kg
|
approx. 3410 kg
|
approx. 4150 kg
|
|
Code
|
200315XX
|
|
Model
|
LR-15Y10
|
|
Resolution(μm)
|
0.5
|
|
Indication Error MPEE(μm)*
|
4.0＋3.3L/1000
|
|
Probing Error MPEP(μm) *
|
4.0
|
|
Measuring Range(Dx*Dy*Dz, mm)
|
1500*Y≥2000*1000
|
|
Load Capacity(kg)
|
≥1900
|
|
Dimension(Lx*Ly*Lz, mm)
|
/
|
|
Weight(kg)
|
≥4500 kg
|
All data tested according to Standard DIN EN ISO 10360-2.
2.3 Computer System
De ll™ Computer
- CPU:Dual-Core ≥ 2.5G Hz
-OS:Windows 10/11 Pro.
-RAM:≥8GB
-Hard Disk: ≥ 1TB
-Graphic Card:Integrated one
-Graphic Database:OPENGL
-Monitor: D ELL™ ≥ 21.5’’ LCD Monitor
Probe System
(1) Renishaw™ PH10M/MH20i probe head with TP20 probe system from U.K.
(2) Renishaw™ Probe Styli Kit from U.K.
. 1.2.3.4mm STYLI KIT
|
H10 or H20 probe head
|
|
|
Highly repeatable, UK made, index able probe head H10
|
|
Characteristics:
|
|
|
Model
|
LR-H10(auto)
|
LR-M20(manual)
|
|
• Index able A axis (Pitch)
|
from +90° to -115°, 7.5° step
|
from +90° to -115°, 15° step
|
|
• Index able B axis (Roll)
|
± 180°, 7.5° step
|
± 180°, 15° step
|
|
• Total number of positions
|
720
|
720
|
|
• Position Repeatability
|
0.5 μm
|
0.5 μm
|
|
• Extension Rods
|
Max. 300 mm
|
Max. 300 mm
|
|
|
|
T20 Probe Kit
|
|
|
Capability of automatic styli changes through detachable probing force modules
|
|
Characteristics (Standard Force):
|
|
|
• 2D FORM Deviation
|
±0.4 μm
|
|
• 3D FORM Deviation
|
± 0.65 μm
|
|
• Measuring direction
|
6 ways, ±X, ± Y, ± Z
|
|
• Repeatability 2 sigma
|
0.3 μm
|
|
• Weight
|
22 gram
|
|
• Trigger Force
|
XY
|
0.02N at 50 mm stylus length
|
|
Z
|
0.07N at 50 mm stylus length
|
