Product Details:
|
Product Name: | Warm Body Sweating Motion Foot Test System | Customization: | Available |
---|---|---|---|
Warranty: | 1 Year | Heat Flow: | ≤ 800W/m² |
Temperature Setting Range: | 20 - 45℃ | Power Measurement Accuracy: | 1% |

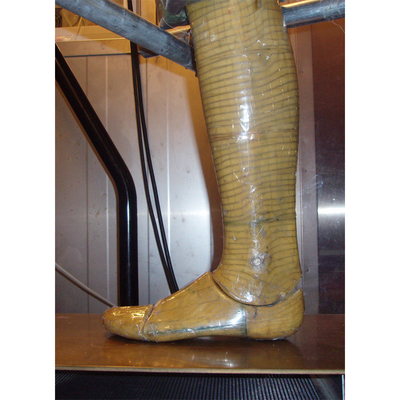

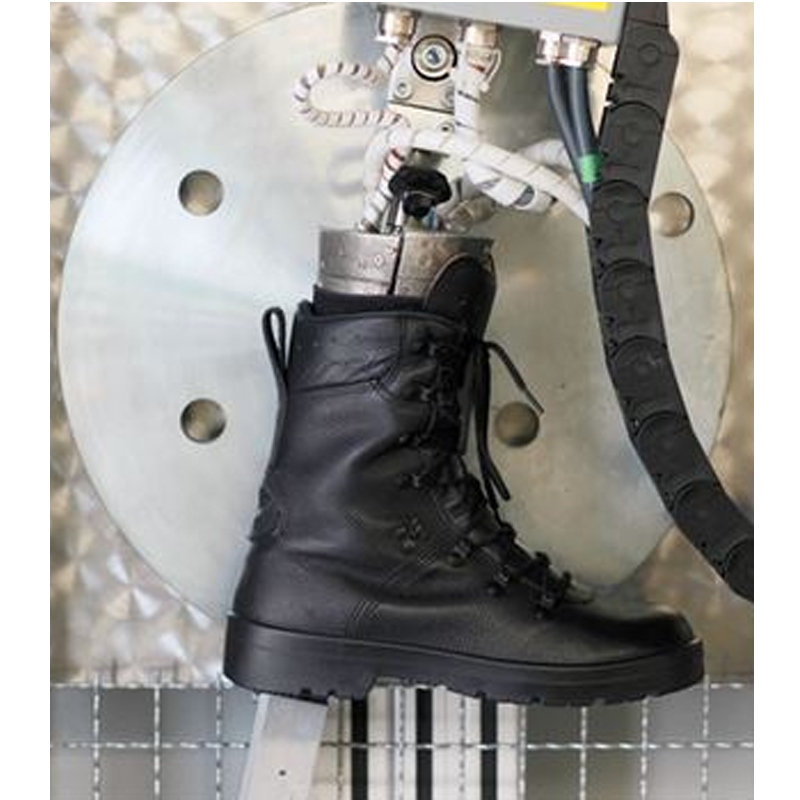

Warm Body Sweating Motion Foot Test System Shoes Comfort Measure Tester
Scope of application
The warm body sweating motion foot test system can measure and evaluate the comfort of shoes, especially simulating the actual walking process in daily use, to truly reflect the warmth retention, breathability, moisture permeability, etc. of the shoes during actual use. It is applicable to both the production quality control of shoes and the development of new products, as well as the functional verification of design. The sensory experience of shoe comfort is expressed in the form of test result data, and the comfort evaluation is transformed into objective data. This enables the avoidance of unreliable performance comparisons due to human sensory differences, while also allowing for the comparison of comfort between different types of shoes.
Product details
1. 9 independent control sections, with an independent control and supervision system for each section;
2. Silver-plated foot model;
3. Built-in water discharge system, with a high-precision flow pump for adjustable flow;
4. Moving toes and ankles, facilitating the putting on and taking off of the shoes;
5. Surrounding heating components and corresponding surrounding sensors;
6. Precise wire-type temperature sensor to avoid the deviation between the detected temperature and the actual temperature caused by single-point detection;
7. External control system, highly integrated, stable and reliable;
8. Adjustable walking speed;
9. Real-time display of test data, independent display of test results for each section;
10. Visual display of pictures and numerical values;
11. Test results can be extracted at any time, real-time display of test data;
12. Control software integrates data acquisition, real-time statistics, and automatic calibration functions.
Technical specifications
System's temperature measurement accuracy |
0.2℃ |
Power measurement accuracy |
1% |
Temperature setting range |
20 - 45℃ |
Heat flow |
≤ 800W/m² |
Testing modes |
Multiple options available: temperature control, heat flow control, comfort control, and customizable mode |
