GA147 Portable X-ray DR Imaging Device Handheld X-ray Test Device

GA147 Portable X-ray DR Imaging Device

System performance and features

It is compact and portable in shape, and has remarkable penetration ability at the same time
All the accessories can be placed in one package, which is very portable
Low cost, greatly saving labor and time costs
Friendly user interface and simple operation
It can be easily connected to a tripod or a custom fixing tool
Low radiation dose, safe and reliable
It contains no harmful or dangerous substances, so there is no need to worry about transportation issues.

Parameters

System composition

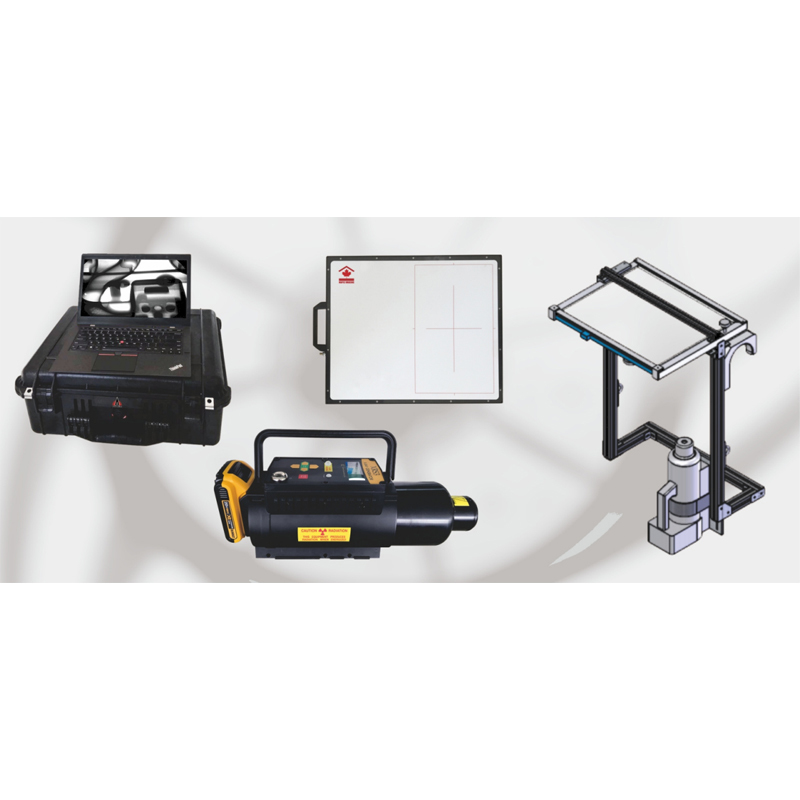

Pulse X-ray machine.Digital flat panel detector.Digital image processing system.Special tooling.Special drag box for equipment.Main functions of the software.Size measurement, picture storage, picture query, image zooming in and out.Pseudo-color, gray level transformation, brightness/contrast adjustment.Image enhancement, image sharpening;Image printing, user management, parameter setting, system exit, etc.Software environment: windows7.It has the functions of storing and retrieving multiple images, and the images can be saved.Geometric measurement function for defects of the workpiece under test Window position technology.Edge enhancement and negative image function.Application field - Power detection.X-ray flaw detection of tensile clamps .X-ray flaw detection of hardware for transmission lines.X-ray flaw detection of power fittings.Flaw detection of tensile clamps on three-span lines.X-ray flaw detection of continuation pipes .Internal inspection of GIS equipment.
