| Instrument weight: | 20 kg | Dimensions: | 250mm × 444mm × 500mm |
|---|---|---|---|
| Test conditions: | Temperature 20 - 40℃, Relative humidity ≤ 85%RH | Sample size: | Length ≥ 50mm, Width 25mm |

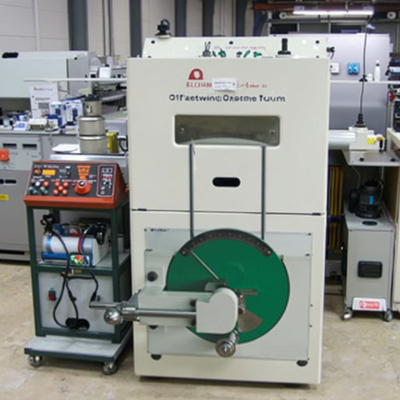

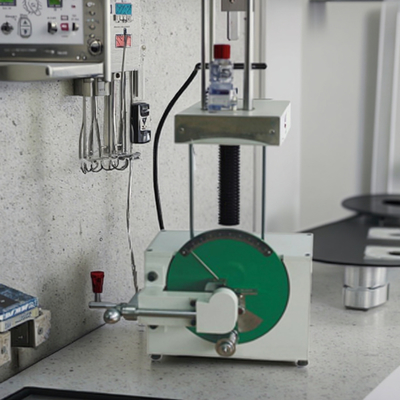

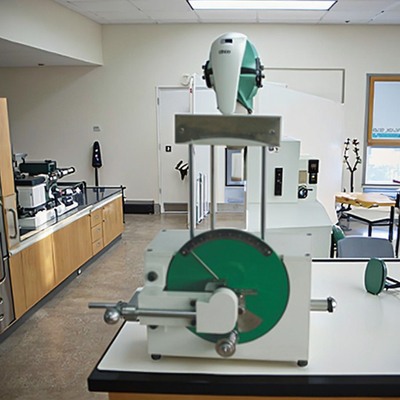

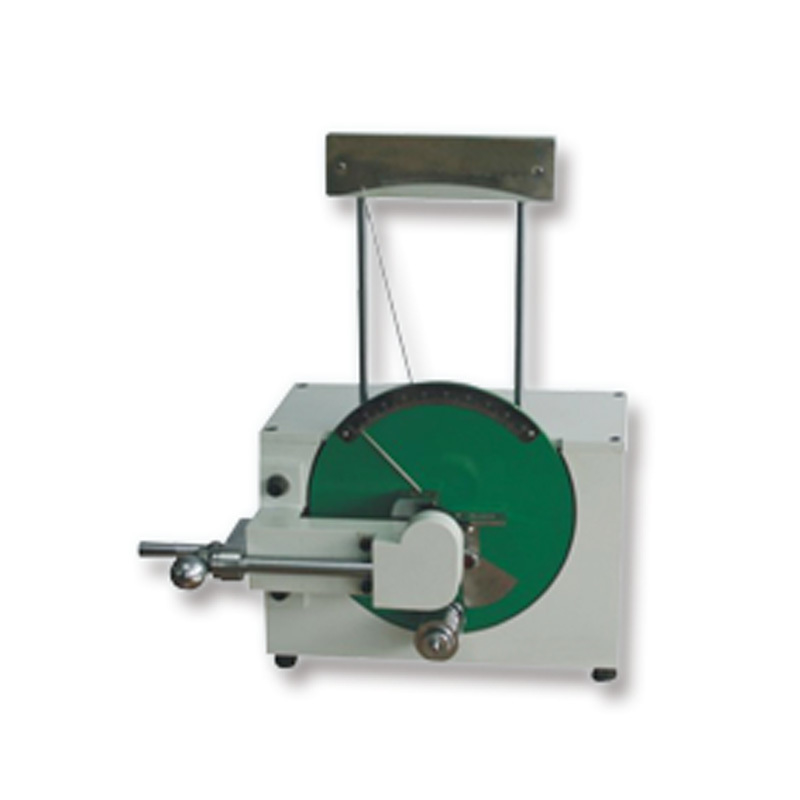

Paperboard Bending Performance Tester Fabric Textile Bending Performance Testing Machine
Scope of Application
Used for testing the bending performance of various textile fabrics, paper boards and other materials.
Relevant standards
GB/T 18318.4-2009 "Textiles - Determination of bending properties - Part 4: Cantilever method"
Instrument Characteristics
1. The bending angle disc has undergone static parallel alignment.
2. After setting the weights, the pointer tends to return to zero.
3. The handwheel is driven by a worm gear and worm mechanism, which operates smoothly, quietly and conveniently.
4. The mechanical processing and manufacturing techniques are highly precise and have a high degree of accuracy.
Technical Specification
|
Measuring range |
0.05 - 1 kg·cm (weights ranging from 50 grams to 1000 grams, a total of 11 pieces) |
|
Stiffness distance |
0.3 - 1.2 cm |
|
Clamping opening width |
2.5 cm |
|
Measuring accuracy |
The bending angle dial has an accuracy of 1° |
|
Test speed |
60° per minute |
|
Sample size |
Length ≥ 50mm, Width 25mm |
|
Test conditions |
Temperature 20 - 40℃, Relative humidity ≤ 85%RH |
|
Dimensions |
250mm × 444mm × 500mm |
|
Instrument weight |
20 kg |
