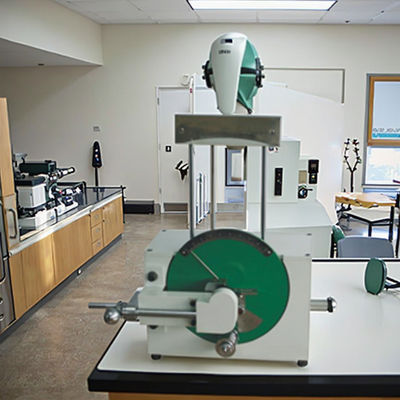

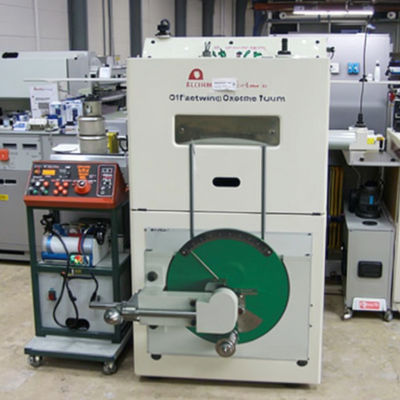

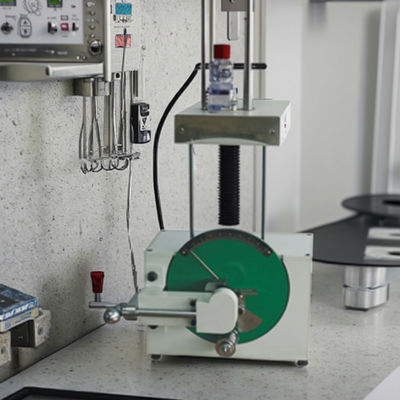

Paperboard Bending Performance Tester Fabric Textile Bending Performance Testing Machine

Paperboard Bending Performance Tester Fabric Textile Bending Performance Testing Machine
Paperboard Bending Performance Tester Fabric Textile Bending Performance Testing Machine Paperboard Bending Performance Tester Fabric Textile Bending Performance Testing Machine Paperboard Bending Performance Tester Fabric Textile Bending Performance Testing Machine Paperboard Bending Performance Tester Fabric Textile Bending Performance Testing Machine

Large Image :  Paperboard Bending Performance Tester Fabric Textile Bending Performance Testing Machine

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Model Number: LR-A076
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

Paperboard Bending Performance Tester Fabric Textile Bending Performance Testing Machine

Description
Instrument Weight: 20 Kg Dimensions: 250mm × 444mm × 500mm
Test Conditions: Temperature 20 - 40℃, Relative Humidity ≤ 85%RH Sample Size: Length ≥ 50mm, Width 25mm

Paperboard Bending Performance Tester Fabric Textile Bending Performance Testing Machine

Scope of Application

Used for testing the bending performance of various textile fabrics, paper boards and other materials.



Relevant standards

GB/T 18318.4-2009 "Textiles - Determination of bending properties - Part 4: Cantilever method"



Instrument Characteristics

1. The bending angle disc has undergone static parallel alignment.

2. After setting the weights, the pointer tends to return to zero.

3. The handwheel is driven by a worm gear and worm mechanism, which operates smoothly, quietly and conveniently.

4. The mechanical processing and manufacturing techniques are highly precise and have a high degree of accuracy.



Technical Specification

Measuring range

0.05 - 1 kg·cm (weights ranging from 50 grams to 1000 grams, a total of 11 pieces)

Stiffness distance

0.3 - 1.2 cm

Clamping opening width

2.5 cm

Measuring accuracy

The bending angle dial has an accuracy of 1°

Test speed

60° per minute

Sample size

Length ≥ 50mm, Width 25mm

Test conditions

Temperature 20 - 40℃, Relative humidity ≤ 85%RH

Dimensions

250mm × 444mm × 500mm

Instrument weight

20 kg
