ISO 5627 Bekk Paper Smoothness Tester Fully Automatic Board Surface Smoothness Testing Machine Paper Test Device

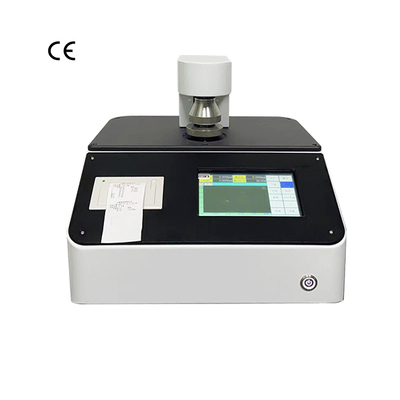

Large Image : ISO 5627 Bekk Paper Smoothness Tester Fully Automatic Board Surface Smoothness Testing Machine Paper Test Device

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z229

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200

Contact Now

ISO 5627 Bekk Paper Smoothness Tester Fully Automatic Board Surface Smoothness Testing Machine Paper Test Device

Description

Highlight:

Fully Automatic Bekk Paper Smoothness Tester

7-inch Touchscreen Board Surface Smoothness Testing Machine

High-Precision Sensors Paper Test Device

ISO 5627 Bekk Paper Smoothness Tester

Fully Automatic Board Surface Smoothness Testing Machine

The fully automatic smoothness tester is a specialized instrument designed to measure the smoothness of paper based on the internationally recognized Bekk method principle. This advanced testing device features innovative mechanical design and modern control systems for precise, reliable measurements.

Product Features

One-touch testing for simple and convenient operation
Eliminates the need for weights; utilizes stepper motor with force sensor for automated loading
ARM processor enhances instrument response speed for precise, rapid control
7-inch touchscreen with Chinese and English menus
Automatic mode for efficient testing of highly smooth paper
Measures and calculates smoothness difference between paper sides
High-precision sensors and imported oil-free vacuum pump
Comprehensive data processing with storage, display, and printing capabilities

Technical Specifications

Parameter	Specification
Power Supply Voltage	AC220V±10% 50Hz (AC110V±10% 60Hz customized)
Working Environment	Temperature (10 ~ 35)°C, Relative Humidity ≤ 85%
Display	7-inch dot matrix color touch screen
Test Area	10±0.05 cm²
Measuring Range	(1 ~ 9999)s, divided into (1 ~ 15)s, (15 ~ 300)s, (300 ~ 9999)s and auto gear (max 200s)
Pressure	100±2 kPa
Timing Error	≤1s (at 1000s timing)
Contact Pressure	(100±10) kPa; (adjustable); For film (17.5±1) kPa (other pressure customizable)
Print	Thermal Printer
Communication Interface	RS232
Overall Dimension	370330390 mm
Net Weight of Instrument	Approx. 29kg
Vacuum Setting Range	Gear I 50.66 ~ 48.00; Gear II 50.66 ~ 48.00; Gear III 50.66 ~ 29.33 kPa
Test Method	Front / Back side test, two-side difference

Applicable Standards

ISO 5627 "Paper and board -- Determination of smoothness (Bekk method)"

GB/T 456-2002 "Paper and board -- Determination of smoothness (Bekk method)"

Applications

Ideal for papermaking, packaging, scientific research, and quality supervision and inspection industries. Combines advanced technology, comprehensive functions, reliable performance, and ease of use for professional testing requirements.
