ASTM D202 TAPPI T815 Inclined Plane Friction Coefficient Tester ASTM D4918 Slope Friction Resistance Testing Machine

Large Image : ASTM D202 TAPPI T815 Inclined Plane Friction Coefficient Tester ASTM D4918 Slope Friction Resistance Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-COF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200

Contact Now

ASTM D202 TAPPI T815 Inclined Plane Friction Coefficient Tester ASTM D4918 Slope Friction Resistance Testing Machine

Description

Highlight:

ASTM D202 TAPPI T815 Inclined Plane Friction Coefficient Tester

Microcomputer Controlled Packaging Slip Resistance Testing Machine

Laser Distance Sensor Coefficient of Friction Tester

ASTM D202 TAPPI T815 Inclined Plane Friction Coefficient Tester ASTM D4918 Packaging Slope Friction Resistance Testing Machine

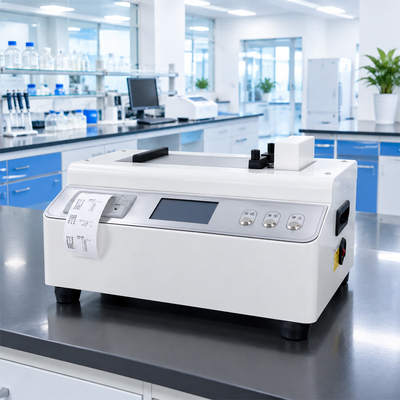

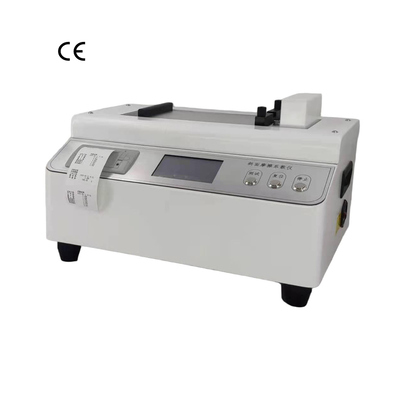

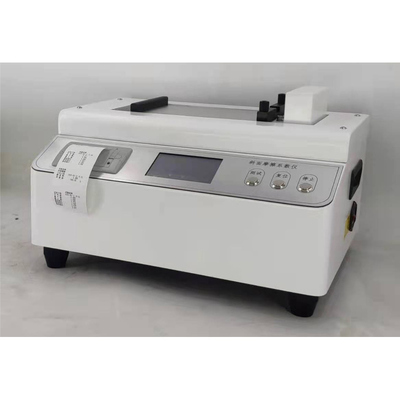

The Inclined Plane Coefficient of Friction Tester measures the coefficient of friction for materials including paper, paperboard, plastic films, sheets, and conveyor belts. By analyzing material slip properties, users can optimize production quality parameters such as packaging bag opening performance and packaging machine operating speed to meet specific requirements.

Key Features

Stepless angular velocity adjustment with automatic platform reset for versatile testing conditions
Specifically designed to measure static coefficient of friction on an inclined plane
Degaussed test platform and sliding block with residual magnetism testing to minimize measurement errors
Microcomputer-controlled with menu-driven interface, PVC control panel, metal buttons, and LCD touchscreen
Laser distance sensor for precise detection of sliding block movement initiation
Integrated micro-printer and standard RS232 interface for PC connectivity and data transmission

Compliance Standards

Complies with ASTM D202, ASTM D4918, and TAPPI T815 standards.

Testing Applications

Films: Plastic films and sheets including single-layer and multi-layer composite films (PE, PP, PET) for food and pharmaceutical packaging
Paper: Paper and paperboard materials, including paper-aluminum-plastic composite printed materials
Extended Materials: Aluminum sheets, silicon wafers, textiles, and non-woven fabrics including woven bags

Product Configuration

Standard: Main unit, micro-printer, 1300 g sled
Optional: Professional software, communication cable, 235 g sled, 200 g sled, non-standard sleds

Technical Specifications

Angle Range	0° - 85°
Precision	0.01°
Angular Velocity	0.1°/s - 10.0°/s
Sled Specifications	1300 g (standard); 235 g, 200 g (optional) Sleds of other weights can be customized
Environmental Requirements	Temperature: 23 ± 2°C; Humidity: 20% RH - 70% RH
Dimensions	330 mm (L) * 455 mm (W) * 250 mm (H)
Power Supply	220 VAC 50 Hz / 120 VAC 60 Hz
Net Weight	22 kg
