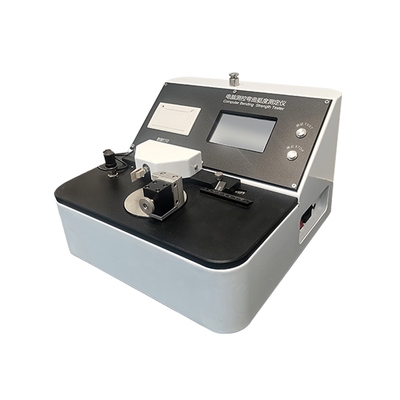

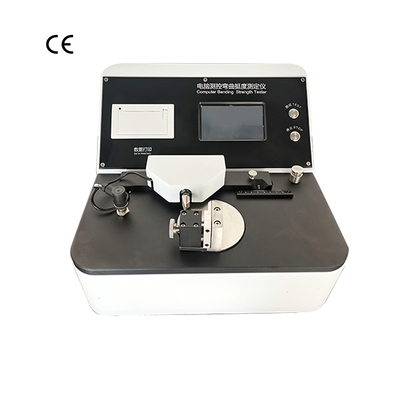

ISO 2493 ISO 5628 Computer Controlled Bending Strength Testing Machine For Paper Paperboard Films Sheets Flexural Stiffness

Large Image : ISO 2493 ISO 5628 Computer Controlled Bending Strength Testing Machine For Paper Paperboard Films Sheets Flexural Stiffness

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z214

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	D/A,D/P,T/T,L/C
Supply Ability:	200

Contact Now

ISO 2493 ISO 5628 Computer Controlled Bending Strength Testing Machine For Paper Paperboard Films Sheets Flexural Stiffness

Description

Highlight:

ISO 2493 ISO 5628 Bending Strength Testing Machine

Computer Controlled Flexural Stiffness Tester

Touchscreen Interface Paperboard Stiffness Tester

ISO 2493 ISO 5628 Computer-controlled Bending Strength Testing Machine Paper Paperboard Cardboard Flexural Stiffness Tester

Product Overview

The material bending property tester is an instrument designed to measure the bending stiffness of paper and paperboard. It can also be used to evaluate the bending stiffness of sheet materials such as films, mica sheets, graphite sheets, and composite materials.

Compliance Standards

GB/T 23144, GB/T 22364, ISO 5628, ISO 2493

Key Features

Testing instrument for measuring bending stiffness of paper and paperboard
Supports self-calibration with included calibration tools and weights
5/7-inch touchscreen interface with visual menu operation
Quick replaceable sensor system
Integrated modular thermal printer

Technical Specifications

Parameter	Specification
Measuring Range	(0~500) mN.m, (0~10000) mN (optional according to requirements)
Accuracy	±0.1%
Span Range	8 adjustable force arm positions: 5-10-15-20-25-30-40-50
Sample Size	Compatible with old standard 3870mm and new standard 3880mm specimens
Resolution	0.01mN
Angle Resolution	0.1°
Angular Speed Control	0.5 - 1000 °/min adjustable
Bending Time	Customizable within 5~35s based on material elasticity
Bending Angle	1~92° stepless adjustment; common angles (±7.5° or ±15°) ±0.3°
Operation Interface	5/7-inch touch screen with visual menu operation
Print Output	Integrated modular thermal printer
Overall Dimension	350330350mm
