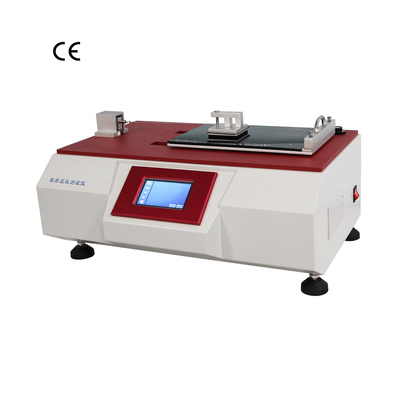

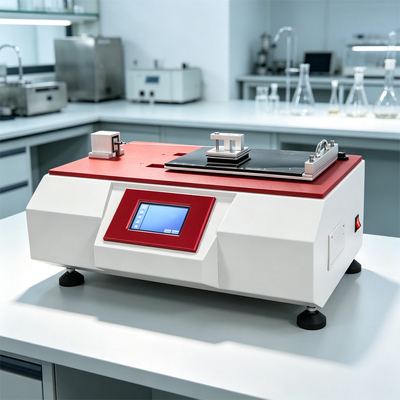

ASTM D1894 ISO 8295 Friction Coefficients Tester COF Tribometer Films Packaging Slip Resistance Test Machine

ASTM D1894 ISO 8295 Friction Coefficients Tester COF Tribometer Films Packaging Slip Resistance Test Machine
ASTM D1894 ISO 8295 Friction Coefficients Tester COF Tribometer Films Packaging Slip Resistance Test Machine ASTM D1894 ISO 8295 Friction Coefficients Tester COF Tribometer Films Packaging Slip Resistance Test Machine

Large Image :  ASTM D1894 ISO 8295 Friction Coefficients Tester COF Tribometer Films Packaging Slip Resistance Test Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Certification: CE,ISO,ASTM,DPR,ROHS
Model Number: LR-Z172
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 7 work days
Payment Terms: D/A,T/T,D/P,L/C
Supply Ability: 200
Contact Now

ASTM D1894 ISO 8295 Friction Coefficients Tester COF Tribometer Films Packaging Slip Resistance Test Machine

Description
Highlight:

ASTM D1894 ISO 8295 Friction Coefficients Tester

,

Fully digital automatic system Tribometer

,

High-precision force sensor COF Test Machine

ASTM D1894 ISO 8295 Friction Coefficients Tester Tribometer Films Slip Resistance Analyzer Packaging COF Test Machine
Product Overview

This advanced friction coefficients tester is primarily used to measure the static and dynamic (kinetic) coefficients of friction for plastic films, sheets, and similar materials. By determining these coefficients, the instrument enables precise assessment of the slip properties of plastic films—particularly those used in packaging—and is widely utilized in the packaging industry and by testing agencies.

Standards Compliance

Complies with GB 10006, ASTM D 1894, and ISO 8295 standards.

Instrument Features
  • Fully digital automatic system with LCD display; tracks and displays friction force during testing and shows dynamic and static friction coefficients in the results
  • PC connectivity: In addition to automatically storing test results, the system can display and save friction force curves when connected to a computer
  • Equipped with a high-precision force sensor (Class 1 accuracy)
  • Specially designed drive system ensures smooth operation and more accurate test results
Technical Specifications
Measuring Range 0.01N～5N, Resolution: 0.01N
Indication Accuracy Indication Error ±2%
Sample Thickness ≤0.2mm
Slider Dimension 63*63mm
Slider Weight 200g±2g (800±10g optional)
Test Platform Size 170*336mm
Test Speed (100±10)mm/min
Slider Travel 0～150mm (adjustable)
Overall Dimension 500*335*220mm
Weight 25kg
Power Supply AC110～240V 50Hz 200W
