ISO 5264 TAPPI T200 Valley Beater Papermaking Machine Hollander Pulp Refining Tester Valley Pulp Beater

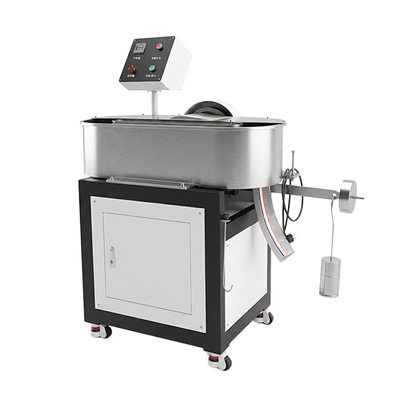

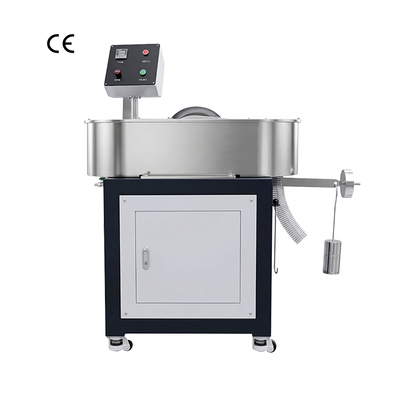

Large Image : ISO 5264 TAPPI T200 Valley Beater Papermaking Machine Hollander Pulp Refining Tester Valley Pulp Beater

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z117

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	D/A,D/P,T/T,L/C
Supply Ability:	200

Contact Now

ISO 5264 TAPPI T200 Valley Beater Papermaking Machine Hollander Pulp Refining Tester Valley Pulp Beater

Description

Highlight:

ISO 5264 TAPPI T200 Valley Beater

45 L Total Volume Pulp Refining Test Machine

Adjustable Knife-Pressure Range Papermaking Equipment

ISO 5264 TAPPI T200 Valley Beater Papermaking Machine

Product Overview

The Valley Beater is an internationally standardized laboratory instrument for papermaking, designed for comprehensive beating trials across diverse fiber types including plant, synthetic, carbon, and glass fibers. Through mechanical interaction between the fly-bar roll and bedplate, the equipment subjects fiber pulp to cutting, crushing, kneading, splitting, swelling, and fibrillation processes.

This advanced processing facilitates cell wall displacement and deformation, along with rupture of primary walls and outer secondary wall layers, achieving precise fiber fibrillation and controlled shortening. By adjusting weight load and beating duration, operators can precisely control beating degree to meet specific requirements—from low to high beating levels—providing reliable samples for pulp property analysis and sheet formation studies.

This versatile equipment supports fiber processing in both wet-laid and dry-laid forming processes, serving as an essential tool for production testing, quality control, process development, and as fundamental equipment for educational and research applications.

Compliance Standards

ISO 5264/I
TAPPI-T200
GB 7980-87 (Pulps—Laboratory beating—Valley beater method)
GB/T 24325-2009
GB 5226.1-2008

Technical Specifications

Parameter	Specification
Total Volume	45 L
Standard Effective Beating Volume	23 L
Pulp Processing Capacity	Oven-dry pulp: 200-700 g (Standard beating load: 360 g oven-dry pulp, consistency 1.57%); Fiber processing capacity: 0.01-0.5 kg (adjustable according to fiber density)
Beating Consistency Range	0.01%-3%
Fly Cutter Roll Specification	φ194 mm, length 155 mm; 32 fly cutter blades, single-blade thickness 4.7 mm; 7 bed blades, single-blade thickness 3.2 mm
Fly Cutter Roll Rotation Speed	Standard speed: 8.3±0.2 r/s
Beating Load (Knife Pressure)	Standard lever-arm load: 54±1 N (5.5±0.1 kgf); Adjustable knife-pressure range: 9.8-55 N (adjusted by replacing weights)
Knife Gap Adjustment	Adjustment range: 0-10 mm, manual adjustment. Equipped with knife-pressure parallel-adjustment station to ensure uniform beating effect
Beating Time Control	1-999 min configurable; time unit switchable (second / minute / hour)
Fiber Beating Mode	Circulating beating mode, suitable for plant fibers, synthetic fibers, inorganic fibers and other materials
Power Isolation Design	Separation distance between power unit and pulp tank >50 mm, equipped with water-resistance isolation center disc for improved bearing stability and repeatability
Fiber Beating Efficiency	30%-80%
Knife Pressure Parallelism	Equipped with knife-pressure parallel-adjustment station
Knife Advance & Retract	Equipped with advance-retract wrench for fast loaded knife advance-retract; Power unit separated from pulp tank by more than 50 mm with water-resistance isolation center disc; Large pulp tank with stainless-steel protective cover and quick-open window
Power Requirement	Optional 220V / 1200W (Single-phase)
Overall Dimension	1240×700×1300 mm
Net Weight	200 kg
