ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer

Large Image : ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	LR-AD108

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer

Description

Platens Size:

Resolution:

Type:

Tensile Compressive Fatigue Testing Machine

Input Voltage:

220 V

Highlight:

ASTMD7615 electronic tensile testing machine

compressive fatigue endurance tester

push-pull life analyzer machine

Products Description

ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer

Standards Compliance ASTM D7615, GB/T 3075 (Metallic materials – Axial force-controlled fatigue testing)

ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer

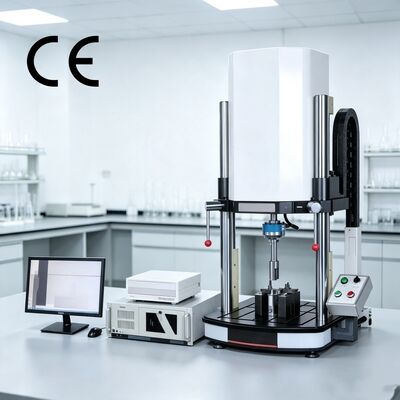

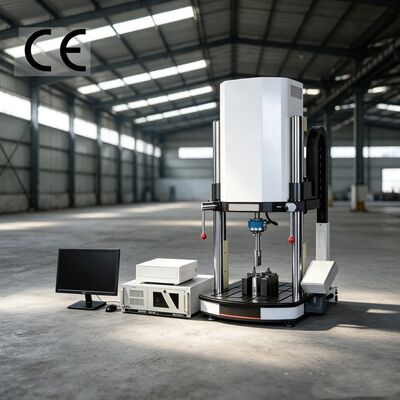

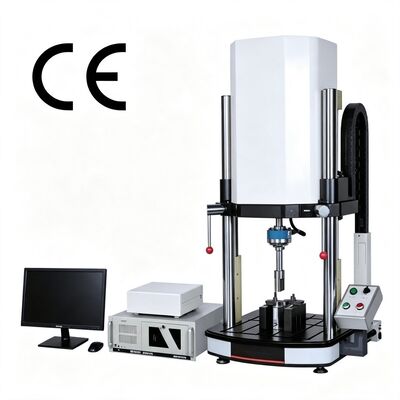

Equipment Overview The main unit features a closed-frame structure composed of two vertical columns, a T-slotted base, and a crosshead. It offers flexible and convenient operation, with motorized crosshead lifting and manual locking. The system utilizes advanced electric cylinder drive technology for loading, along with high-precision dynamic load cells and high-resolution displacement sensors to measure specimen force and displacement. The fully digital measurement and control system enables closed-loop control of displacement and deformation. The testing software operates in a Windows environment and offers powerful data processing capabilities, automatically saving, displaying, and printing test conditions and results.

ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer

Functions and Applications This machine is primarily used for dynamic and static mechanical performance testing of various materials—including metals, non-metals, and composites—as well as products such as metal bone plates. It supports tensile, compressive, flexural, and low-cycle fatigue testing under various waveforms, including sine, triangle, square, trapezoidal, random, and combined waveforms. When equipped with an environmental temperature control device, it can also perform environmental simulation tests at specific temperatures.

ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer

Specification

Main Technical Specifications

Item	Specification
Product Model	LR-AD108
Maximum Static Load	±3000N
Maximum Continuous Load	±2400N
Load Measurement Range	±1% ~ 100%
Load Accuracy	Within ±0.5%
Test Frequency	0.1 ~ 20Hz
Displacement Stroke	±50mm (100mm)
Displacement Accuracy	Within ±0.5% of indicated value
Test Height	≤400mm
Test Width	Approx. 340mm
Control Waveform	Sine wave, triangular wave, square wave, trapezoidal wave, random wave, combined waveform, etc.
Movable Crossbeam	Electric lifting, manual locking
Bearing Capacity	≥±10KN
Test Platform Mounting Size	Length 400 × Width 340 × Height 400mm
Electric Cylinder Operating Speed	1 μm ~ 0.15m/s
Overall Dimensions (Excluding Control Cabinet)	750×400×1240mm
Weight	Approx. 200kg
Power Supply	AC 220V 50Hz, 1.5Kw
