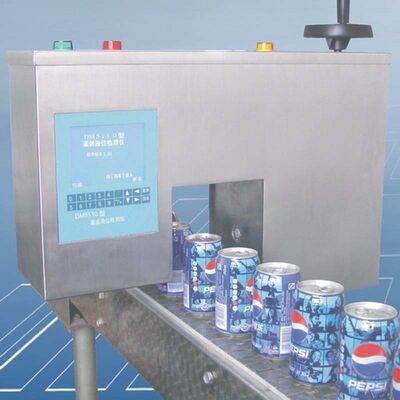

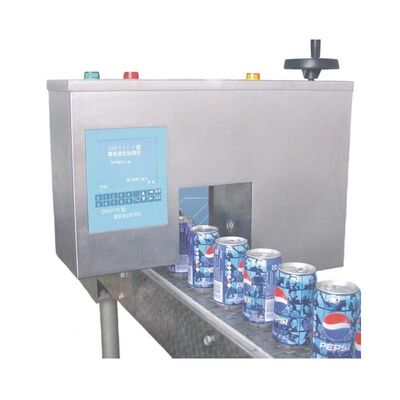

LONROY DM5110 Can Filling Level Detector Non-contact Bottles Filling Level Tester Conveyor Belt Can Liquid Level Test Machine

DM5110 Can Filling Level Detector Non-contact Automatic Bottles Filling Level Tester Conveyor Belt Can Liquid Level Test Machine

DM5110

Filling Level Detector

Non-contact, high-speed, and high-precision online detection

Automatic rejection of non-compliant cans (or bottles)

Priced at only one-fifth of comparable foreign products

Overview

The DM5110 Filling Level Detector is an online level monitoring instrument developed and manufactured by LONROY. It employs nuclear technology, utilizing the principle that the intensity of low-energy X-rays changes based on the material level after interacting with the substance being measured; this allows for the monitoring of liquid fill volumes. Its non-contact measurement method fundamentally solves the challenge of measuring liquid fill volumes on production lines—a task conventional weighing methods cannot handle. Consequently, it is widely used for automatic online control in liquid filling lines (for both bottles and cans) across industries such as food, pharmaceuticals, chemicals, and munitions. It plays a vital role in ensuring product quality and enhancing both economic and social benefits. The DM series of filling level detectors holds a significant share of the domestic market and is sold nationwide.

The DM5110 represents the company's new generation of filling level detectors. Its most significant difference from the previous generation is the absence of an isotopic radioactive source. In recent years, relevant government authorities have tightened regulations on radioactive sources; the entire lifecycle—from the application and purchase of source-containing instruments to testing, daily management, safety protocols, inspections, and the mandatory buy-back of the source upon decommissioning—entails considerable hassle and expense. Against this backdrop, and prioritizing user interests, the company mobilized its top technical talent to rapidly develop the DM5110, eliminating these burdens for customers. Another key feature is its superior detection precision compared to the previous generation, enabling accurate level monitoring even at high production line speeds and when inspecting liquid levels in bottled product lines.

Features

1. Non-contact detection offering high speed and high precision; suitable for monitoring liquid fill levels on both bottled and canned product lines.

2. Capable of operating while the production line conveyor belt changes speed; performance is unaffected by fluctuations in conveyor belt speed. Features a stainless steel housing and a sealed main unit design that is resistant to fog and water droplets, ensuring strong environmental adaptability.

3. Utilizes a relative measurement method based on sampling during idle intervals, ensuring measurement resolution remains unaffected by temperature fluctuations or long-term drift.

4. Incorporates a microcontroller to ensure high reliability and strong resistance to interference.

5. Features simultaneous audible and visual alarms, along with an automatic rejection system for non-compliant containers.

6. Equipped with built-in testing and debugging routines, enabling automatic fault diagnosis.

7. Features a large-screen, LED-backlit LCD display with clear, bright text and an intuitive human-machine interface.

8. Contains no radioactive isotopes, ensuring safe and reliable operation without radiation hazards.

9. Offers excellent cost-performance value, priced at approximately one-fifth of comparable imported products.

DM5110 Can Filling Level Detector Non-contact Automatic Bottles Filling Level Tester Conveyor Belt Can Liquid Level Test Machine

Technical Specification
