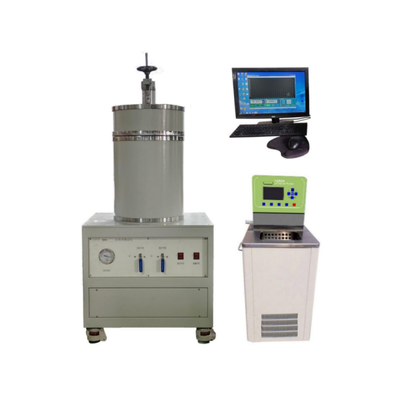

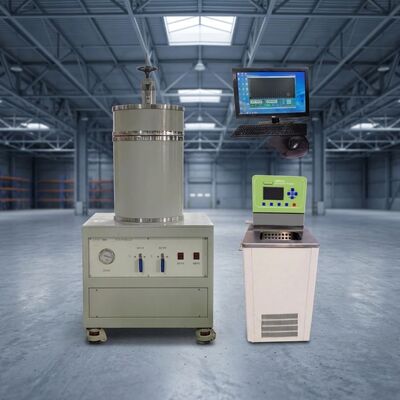

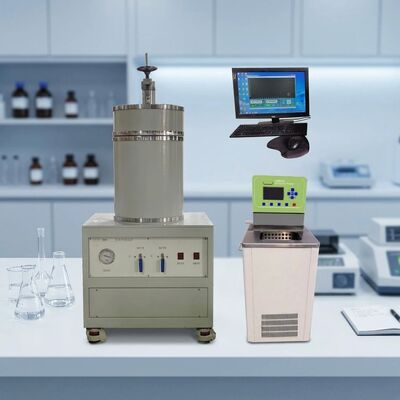

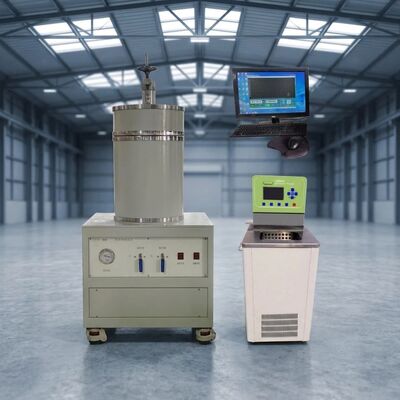

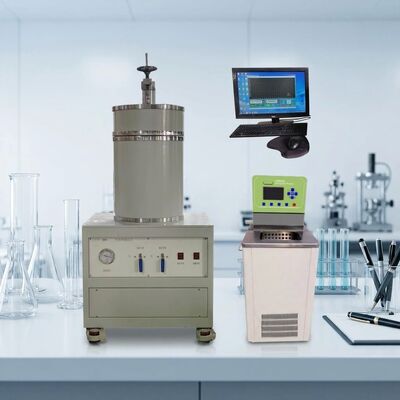

Low Temperature Adiabatic Method Specific Heat Capacity Tester High Precision Laboratory Specific Heat Analyzer With Vacuum Pump

Name: Low Temperature Adiabatic Method Specific Heat Capacity Tester High Precision Laboratory Specific Heat Analyzer With Vacuum Pump
Brand: DONGGUAN LONROY EQUIPMENT CO LTD
Availability: InStock

All Products

Lab Test Machine
(636)

Ink Proofer
(42)

Ceramic Tester
(91)

Petroleum Tester
(91)

Paint Testing Equipment
(184)

Plastic Test Machine
(118)

Universal Tensile Test Machine
(59)

Environment Test Chamber
(55)

Contact Angle Meter
(17)

Differential Scanning Calorimeter
(52)

Film Testing Equipment
(108)

Flammability Tester
(77)

Profile Projector Machine
(14)

ICP Emission Spectrometer
(74)

Vibration Test Machine
(48)

XRF Analyzer
(43)

Small Meter
(102)

Textile Testing Machine
(277)

Hydraulic Testing Machine
(27)

Thermal Analyzer
(66)

Certification

I'm Online Chat Now

Low Temperature Adiabatic Method Specific Heat Capacity Tester High Precision Laboratory Specific Heat Analyzer With Vacuum Pump

Large Image : Low Temperature Adiabatic Method Specific Heat Capacity Tester High Precision Laboratory Specific Heat Analyzer With Vacuum Pump

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Low Temperature Adiabatic Method Specific Heat Capacity Tester High Precision Laboratory Specific Heat Analyzer With Vacuum Pump

Description

Type:	Low-Temperature Specific Heat Capacity Tester	Accuracy Class:	High Accuracy
Accuracy:	/	Customized Support:	OEM, ODM, OBM
Power:	/	Protection Class:	/
Voltage:	220 V, Other	Warranty:	1 Year
Highlight:	Low Temperature Specific Heat Capacity Tester , Adiabatic Method Specific Heat Analyzer , High Precision Laboratory Thermal Analyzer

Products Description

Low Temperature Adiabatic Method Specific Heat Capacity Tester High Precision Laboratory Specific Heat Analyzer With Vacuum Pump

Instrument Principle and ApplicationThe LR-DE200 Thermal Conductivity Tester utilizes the transient plane source method to measure the thermal conductivity of solids, powders, rocks, soils, colloids, anisotropic materials, and more. Based on TPS (Transient Plane Source) technology, this instrument employs a Hot Disk sensor as the probe.Advantages of the Hot Disk method:(1) Direct measurement of heat propagation, saving significant time;(2) Immunity to the contact thermal resistance issues associated with static methods;(3) No special sample preparation required; only a relatively flat sample surface is needed.

Low Temperature Adiabatic Method Specific Heat Capacity Tester High Precision Laboratory Specific Heat Analyzer With Vacuum Pump

Specification

Main Technical Specifications

Parameter Item	Specification
Measurement temperature range	-40 to 100°C
Specific heat capacity range and accuracy	0.05–5 kJ/(kg·K); accuracy ≤ 1% ± 0.008
Sample dimensions	φ30 × 80 mm; sample volume for granules/powder: approx. 55 cm³
Calorimeter temperature measurement resolution	0.001°C
Calorimeter power supply	Voltage 0–30 V (resolution 0.1 mV); Current 0–1 A (resolution 0.01 mA)
Vacuum system	Included; vacuum level: 0.09 MPa
Adiabatic shields	Both inner and outer adiabatic shields utilize 4 pairs of differential thermopiles; temperature resolution: 0.01/4°C
Temperature control method	Constant-temperature bath
Control mode	Fully automatic computer-controlled testing
Instrument power supply	220 V / 50 Hz; power consumption < 1 kW
Standard instrument configuration	1 set of BRR-3D main testing unit, 1 set of testing software, 1 vacuum pump, 1 low-temperature constant-temperature bath, 1 computer
