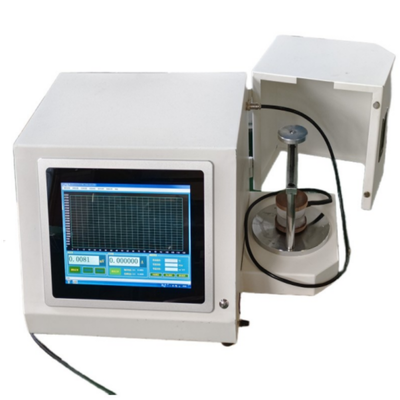

ISO 22007 Thermal Conductivity Tester (Transient Plane Source Method) Transient Plane Heat Source Thermal Conductivity Meter

Large Image : ISO 22007 Thermal Conductivity Tester (Transient Plane Source Method) Transient Plane Heat Source Thermal Conductivity Meter

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 22007 Thermal Conductivity Tester (Transient Plane Source Method) Transient Plane Heat Source Thermal Conductivity Meter

Description

Type:	Thermal Conductivity Tester	Accuracy Class:	High Accuracy
Accuracy:	/	Customized Support:	OEM, ODM, OBM
Power:	/	Protection Class:	/
Voltage:	220 V, Other	Warranty:	1 Year
Highlight:	ISO 22007 thermal conductivity tester , transient plane source thermal conductivity meter , thermal analyzer with transient plane heat source

Products Description

ISO 22007 Thermal Conductivity Tester (Transient Plane Source Method) Transient Plane Heat Source Thermal Conductivity Meter

Instrument Principle and Application The LR-DE200 Thermal Conductivity Tester utilizes the transient plane source method to measure the thermal conductivity of solids, powders, rocks, soils, colloids, anisotropic materials, and more. Based on TPS (Transient Plane Source) technology, this instrument employs a Hot Disk sensor as the probe. Advantages of the Hot Disk method: (1) Direct measurement of heat propagation, saving significant time; (2) Immunity to the contact thermal resistance issues associated with static methods; (3) No special sample preparation required; only a relatively flat sample surface is needed.

ISO 22007 Thermal Conductivity Tester (Transient Plane Source Method) Transient Plane Heat Source Thermal Conductivity Meter

Specification

Key Technical Specifications

Parameter Item	Specification
Thermal conductivity measurement range and resolution	0.0100–100 W/(m·K); Resolution: 0.0005 W/(m·K)
Measurement time	1–600 seconds
Measurement accuracy	Better than ±5%
Temperature range	Standard testing at room temperature; testing between -40°C and 150°C is possible with an optional constant-temperature chamber (additional cost applies)
Sample dimensions and requirements	Diameter ≥45 mm, thickness ≥15 mm (multiple layers can be stacked if a single layer is insufficient); requires a relatively flat surface; powder materials can be tested by directly inserting the probe
Reference standards	ISO 22007-2008; GB/T 32064-2015 (Transient plane source method for thermal conductivity and thermal diffusivity of building materials); DZ/T 0276.14-2015 (PRC Geological and Mineral Industry Standard: Test methods for physical and mechanical properties of rock – Part 14: Test for rock thermal conductivity)
Operation method	Simply clamp the test probe between two sample blocks and obtain the thermal conductivity via simple software operations
Power supply	Voltage 220V; Frequency 50Hz; Power <500W
Communication interface	USB interface
Probe diameter	15 mm or 7.5 mm (two specifications optional)
Standard instrument configuration	1 set of DRE-2C main testing unit, 1 test probe, 1 set of testing software, 1 set of communication interface and data cables, 1 sample fixture, 1 computer
Optional configuration	Constant-temperature device (available at additional cost)
