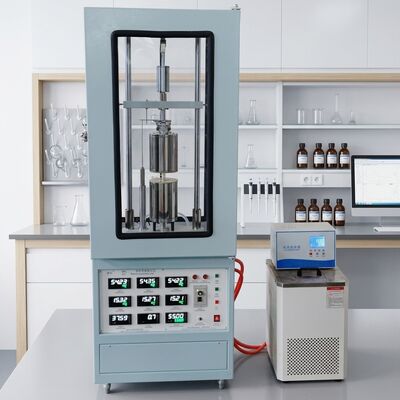

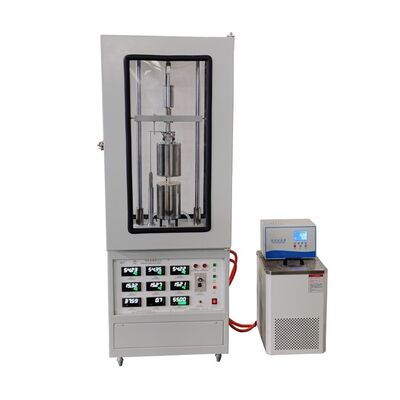

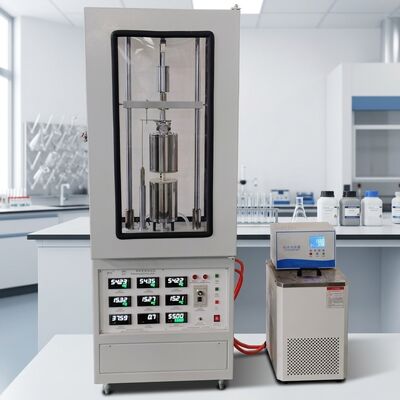

LONROY DRL-III ASTM D5470 Thermal Conductivity Testing Machine Solid Insulating Materials Thermal Conductive Test Equipment

LONROY ASTM D5470 MIL-I-49456A Thermal Conductivity Testing Machine Solid Insulating Materials Thermal Conductive Test Equipment

Overview

This instrument is mainly used to measure the thermal resistance of thin thermal conductors, solid electrical insulating materials, thermal conductive silicone, silicone grease, resins, rubber, beryllium oxide ceramics, aluminum oxide ceramics, etc. It also measures the contact thermal resistance at the solid interface and the thermal conductivity of the materials. The tested materials are in solid sheet form. With a frame, it can also test powder and paste materials.

Reference standards for the instrument

MIL-I-49456A (Insulating Sheet Materials, Thermal Conductive Resins, Thermal Conductive Fiberglass Reinforced); GB 5598-2015 (Method for Measuring Thermal Conductivity of Beryllium Oxide Ceramics - Rod Axis Method); ASTM D5470-12 (Test Standard for Heat Transfer Performance of Thin Thermal Conductive Solid Electrical Insulating Materials), GB/T38712-2020 (Experimental Method for Thermal Conductivity of Ultra-Thin Glass - Thermal Flow Method), GB/T29313-2012 (Test Methods for Thermal Conductivity Performance of Electrical Insulating Materials) and others.

Instrument features

It has an automatic pressure system and an automatic thickness measurement device, and is connected to a computer to achieve fully automatic control. The instrument uses 6-point temperature gradient detection, which improves the test accuracy. It can measure the thermal resistance curve under different pressures, and uses an optimized mathematical model to measure multiple parameters such as the material's thermal conductivity, thermal resistance, and contact thermal resistance at the interface.

It is widely used in universities, research institutions, quality inspection departments, and production factories for the thermal conductivity analysis and testing of materials.

LONROY ASTM D5470 MIL-I-49456A Thermal Conductivity Testing Machine Solid Insulating Materials Thermal Conductive Test Equipment

Technical Specification
