Large Image :  Air-Cooled Planetary Ball Mill Cryogenic Planetary Ball Mill High Accuracy Low-temperature Planetary Ball Mill

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

Air-Cooled Planetary Ball Mill Cryogenic Planetary Ball Mill High Accuracy Low-temperature Planetary Ball Mill

Description
Power: 0.75KW Protection Class: IP56
Voltage: 220 V, 110 V Total Volume: 6 L
Max Rotate Speed: 670 Rpm Dimension: 770*470*570 Mm
Temperature Range: 2-10 ℃ Type: Testing Machine
Power Consumption: 0.75 KW Model Variants: LR-A359-1(C), LR-A359-2(C), LR-A359-4(C), LR-A359-6(C)
Cooling Method: Air-Cooled Grinding Space Control: Temperature Controlled
Compatibility: Vertical, Horizontal, 360 Degree, Dual Ball Mill Refrigeration Principle: Air Conditioning
Heat Dissipation: Cycling Cold Air
Highlight:

air-cooled planetary ball mill

,

cryogenic planetary ball mill

,

low-temperature lab ball mill

Air-Cooled Planetary Ball Mill Cryogenic Planetary Ball Mill High Accuracy Low-temperature Planetary Ball Mill
Product Overview

The Cryogenic Planetary Ball Mill combines a planetary ball mill with an advanced cold-air device. Utilizing air conditioning refrigeration principles, the system efficiently removes heat generated during grinding, maintaining a controlled temperature range of 2-10°C within the grinding space. This cooling technology can be adapted to various mill configurations including vertical, horizontal, 360-degree, and dual ball mills.

Technical Specifications
Type Total Volume of 4 Pots (L) Max Rotate Speed (rpm) Power (KW) Dimension (mm)
LR-A359-1(C) 1 670 0.75 770*470*570
LR-A359-2(C) 2 670 0.75 770*470*570
LR-A359-4(C) 4 670 0.75 770*470*570
LR-A359-6(C) 6 670 0.75 770*470*570
Product Images

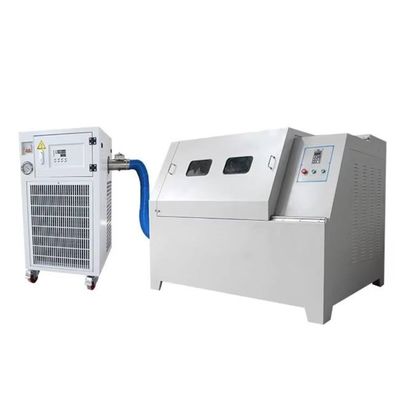

Air-Cooled Planetary Ball Mill showing full unit with control panel

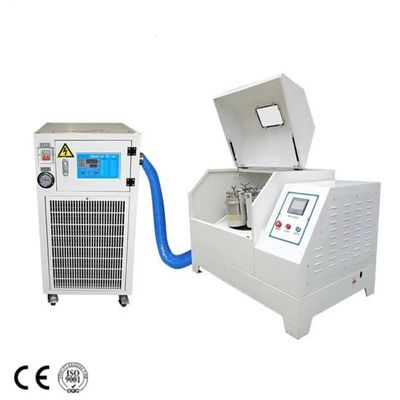

Close-up view of Planetary Ball Mill grinding chamber

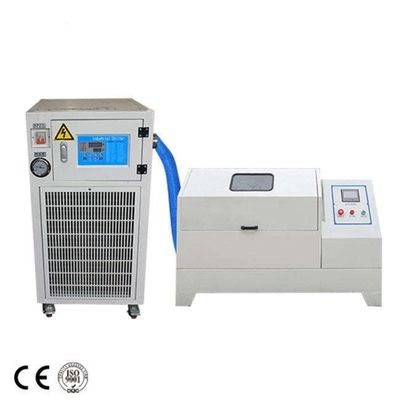

Side view of Cryogenic Planetary Ball Mill showing cooling system

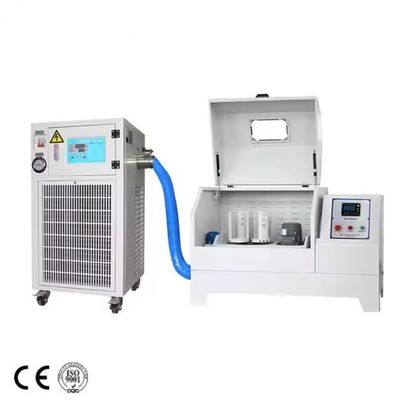

Top view of Planetary Ball Mill showing grinding pots arrangement
Detailed view of Planetary Ball Mill control interface

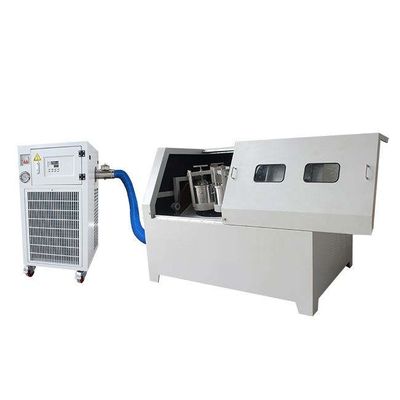

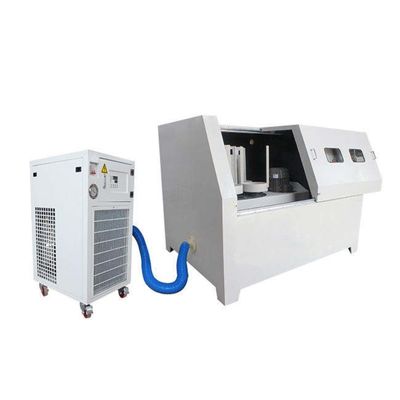

Operational view of Cryogenic Planetary Ball Mill in laboratory setting
Technical diagram of Planetary Ball Mill cooling system
