Hall Flowability Bulk Density Tester/Metal Powder Hall Flowability Meter / Powder Apparent Density Tester

Large Image : Hall Flowability Bulk Density Tester/Metal Powder Hall Flowability Meter / Powder Apparent Density Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	XF-02

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Hall Flowability Bulk Density Tester/Metal Powder Hall Flowability Meter / Powder Apparent Density Tester

Description

Funnel Hole Diameter:	2.5mm Or 5.0mm	Funnel Angle:	60 Degrees
Cup Volume:	25±0.05cm³	Cup Internal Diameter:	31±1mm
Material:	Non-magnetic Corrosion-resistant Metal (brass Or Stainless Steel)	Funnel-cup Distance:	25mm
Weight Accuracy:	0.01g	Measuring Range:	Powder Flow Velocity And Loose Packing Density
Standard Compliance:	GB1482-2010-T, ISO 3923/1-1979	Funnel Specifications:	2.5mm For Flow Velocity, 5.0mm For Density
Surface Finish:	Carefully Polished Inner Surface	Base Requirement:	Horizontal And Firm, Free From Vibration
Component Alignment:	Funnel And Cup Must Be Concentric	Wall Properties:	Sufficient Thickness And Hardness To Prevent Deformation
Power Type:	Electronic
Highlight:	metal powder hall flowability meter , powder apparent density tester , bulk density tester for metal powder

Hall Flowability Bulk Density Tester / Metal Powder Hall Flowability Meter / Powder Apparent Density Tester

Product Introduction

The XF-02 Hall flowmeter is manufactured according to GB1482-2010-T standard funnel method (Hall flowmeter replaces GB1479-84 and GB1482-84 standard specifications). It is used to test the flow velocity and loose packing density of metal powder and non-metal powder.

This method is only suitable for powder that can flow freely through a standard funnel with a diameter of 2.5mm or 5.0mm. The rest of this standard specifies a method for the determination of powder bulk density that cannot be determined through a standard funnel with an aperture of 5.0mm.

How it works: Powder falls freely from funnel hole to fill cup. In the loose packing state, the loose density of powder is expressed by the mass of powder per unit volume. This standard is equivalent to ISO 3923/1 -- 1979, Determination of loose packing density of Metallic powders -- Part 1: Funnel method.

Device Structure

Funnel: Standard funnel hole diameter D has two specifications: 2.5mm diameter and 5.0mm diameter
Funnel Angle: 60 degrees
Cylindrical cup: Volume 25±0.05cm³, internal meridian 31±1mm
Fabrication of cups and funnels: Made of non-magnetic corrosion-resistant metal (typically brass or stainless steel) with carefully polished inner surfaces
Bracket and base: Bracket fixes funnel while base must be horizontal and firm. Distance between funnel hole bottom and cup top is 25mm
Balance: Should have sufficient measuring range to accurately weigh samples to 0.01g (supplied by user)

Standard Accessories

Mounting bracket funnel (according to actual situation), 25ml measuring cup, overflow plate/receiver, height positioning block

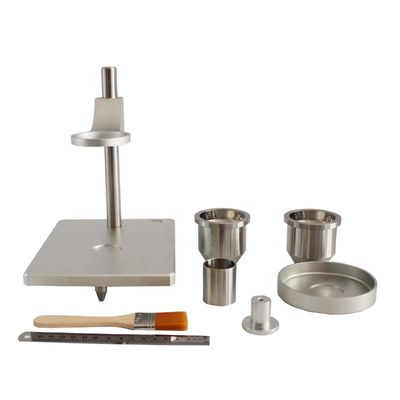

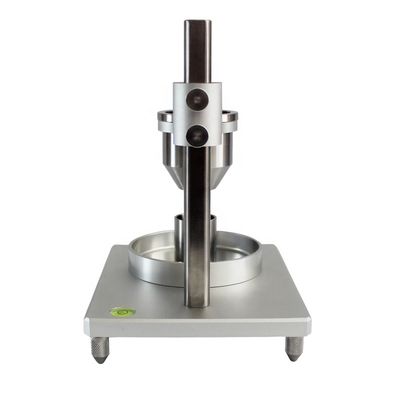

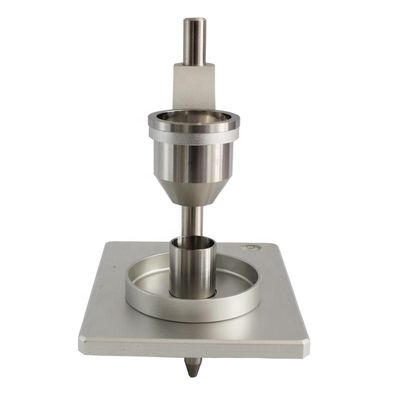

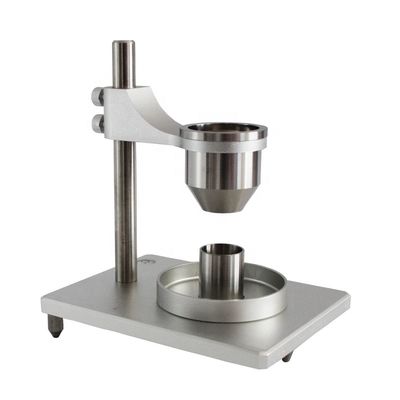

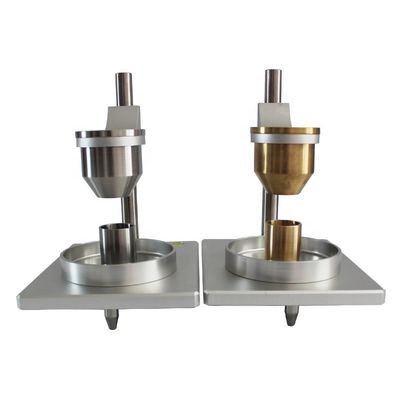

Product Images

Note: Funnel aperture 2.5mm tests powder flow velocity while 5.0mm aperture tests powder loose packing density.
