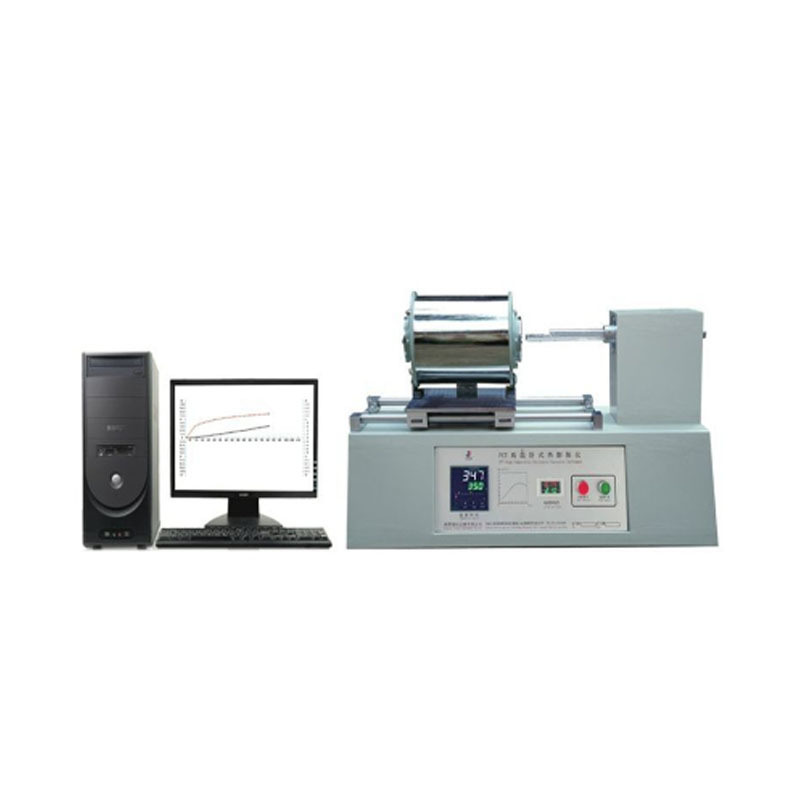

High Temperature Thermal Expansion Instrument Tester Deformation Measurement Thermal Analyzer

Large Image : High Temperature Thermal Expansion Instrument Tester Deformation Measurement Thermal Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

High Temperature Thermal Expansion Instrument Tester Deformation Measurement Thermal Analyzer

Description

Furnace Temperature Range:	1200ºC, 1400ºC, 1700ºC	Heating Speed:	0 ~ 100 Degrees/min
Expansion Measurement Range:	±5mm	Measurement Resolution:	0.1 ~ 1um
Sample Dimensions:	(2 ~ 15) × (2 ~ 15) × (20 ~ 150) Mm	System Measurement Error:	±0.1 ~ 0.5%
Power Supply Voltage:	220V±10%	Power Consumption:	2KW
Protection Class:	IP57	Temperature Spacing:	1ºC
Transmission Type:	Non-friction Linear Bearing	Computer Interface:	Standard
Voltage:	220 V	Sample Shape:	Square/round
Measurement Automation:	Automatic Calibration
Highlight:	high temperature thermal expansion meter , PCY-1200 dilatometer tester , thermal analyzer deformation instrument

High Temperature Thermal Expansion Instrument Meter Tester Deformation Dilatometer PCY-1200

Product Introduction

The PCY-1200 high temperature thermal expansion instrument measures the U(K) value of the heat transfer coefficient of vacuum glass, complying with standard JC/T2708-2022. It is also capable of testing various materials including plastics, rubber, glass, fiber, insulation materials, and more.

Key Features

Meets multiple industry standards including GB/T10294-2008, GB/T3399-1982, and GB/T17794-2008
Tests homogeneous plate materials, granular materials, bulk materials, and soft materials
Computer-controlled operation with full software support
High precision measurement with automatic calibration

Technical Parameters

Parameter	Specification
Furnace Temperature Range	1200ºC, 1400ºC, 1700ºC (customer selectable)
Heating Speed	0-100°C/min adjustable, computer program temperature control
Expansion Value Measurement Range	±5mm
Measurement Resolution	0.1-1μm, automatic calibration range
Sample Range	(2-15) × (2-15) × (20-150) mm (square/round)
System Measurement Error	±0.1-0.5%
Power Supply	220V±10%, 2KW

Advanced Functions

Automatic calculation of expansion coefficient, body expansion coefficient, and linear expansion
Automatic compensation with manual correction capability
Data recording, storage, and printing with customizable temperature spacing (1°C increments)
Imported linear bearing transmission for frictionless operation and excellent repeatability
Standard computer interface for complete test operation control
