ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V

ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V
ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V

Large Image :  ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V

Description
Voltage: 220V, 380V Protection Class: IP56
Temperature Range: -70°C To 150°C Humidity Range: 20%~98% R.H.
Temp Accuracy: ±0.5°C Humidity Accuracy: ±2.5%
Heating Rate: 4.0°C/min Cooling Rate: 1.0°C/min
Inner Material: SUS#304 Stainless Steel Outer Material: Carton Advanced Cold Plate Nano Paint
Insulation Material: High Density Formate Chlorine Ethyl Acetum Foam Cooling System: Air Cooling/Single Segment Compressor (-40°C), Air And Water Double Segment Compressor (-50°C~-70°C)
Compressor Brand: Original France Tecumseh Controller: TATO Taiwan
Power Supply: AC220V 50/60Hz & 1, AC380V 50/60Hz 3
Highlight:

ISO 9001 environmental test chamber

,

CE certified test chamber -70°C to 150°C

,

220V/380V environmental test chamber

ISO 9001 CE Constant Temperature and Humidity Testing Chamber
The Climate Test Chamber is a precise and durable conditioning system capable of maintaining constant conditions from 5% to 98% R.H. (±0.5%) and -70°C to 150°C (±0.5°C). Designed for testing heat, cold, dry, and humidity resistance, it's widely used for conditioning samples prior to testing across various industries.
Key Features
  • LCD touch screen control panel
  • Inner chamber constructed with SUS#304 stainless steel
  • TATO controller with independent R&D software (7 languages)
  • Adjustable temperature range: -70°C to 150°C/180°C
  • Customizable sizes and temperature ranges available
Standard Accessories
  • Optional inner door with operation hole
  • 50mm or 100mm entrance hole for test wires
  • Sample shelves (two layers or more)
  • R232 or R485 communication interface for remote control
Certifications & Standards
ISO 9001 Certified CE Marked RoHS Compliant FCC Certified SGS Tested SUS#304
Technical Specifications
Model LR-HS-80 (A~F) LR-HS-150 (A~F) LR-HS-225 (A~F) LR-HS-408 (A~F) LR-HS-800 (A~F) LR-HS-1000 (A~F)
Inner size: WHD(cm) 40×50×40 50×60×50 60×75×50 60×85×80 100×100×80 100×100×100
External size: WHD(cm) 105×165×98 105×175×108 115×190×108 135×200×115 155×215×135 155×215×155
Temperature range (Low: A:+25°C; B:0°C; C:-20°C; D:-40°C; E:-60°C; F:-70°C) (High: +100°C/+150°C)
Humidity range 20%~98% R.H. (10%~98% R.H.); (5%~98% R.H. special optional condition)
Temp analytic accuracy/uniformity 0.1°C/±2.0°C
Temperature Fluctuation ±0.5°C
Humidity analytic accuracy/control accuracy ±0.1%; ±2.5%
Heating/cooling time Heat up about 4.0°C/min; Cooling about 1.0°C/min
Weight (kg) 150 220 270 320 450 580
Additional Specifications
  • Inner and outer materials: SUS#304 Stainless steel for inner chamber; Carton advanced cold plate nano paint for outer
  • Insulation materials: Resistant to high temp, high density, formate chlorine, ethyl acetum foam insulation materials
  • Cooling system: Air cooling/single segment compressor (-40°C), air and water double segment compressor (-50°C~-70°C)
  • Protection devices: Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system
  • Standard parts: Watching window, 50mm testing hole, PL internal bulbs, Wet and dry bulb gauze, partition plate, castor×4, Foot Cup×4
  • Compressor: Original France "Tecumseh" brand
  • Controller: TATO Taiwan
  • Power: AC220V 50/60Hz & 1, AC380V 50/60Hz 3

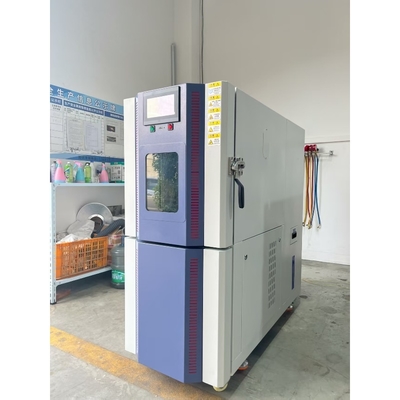

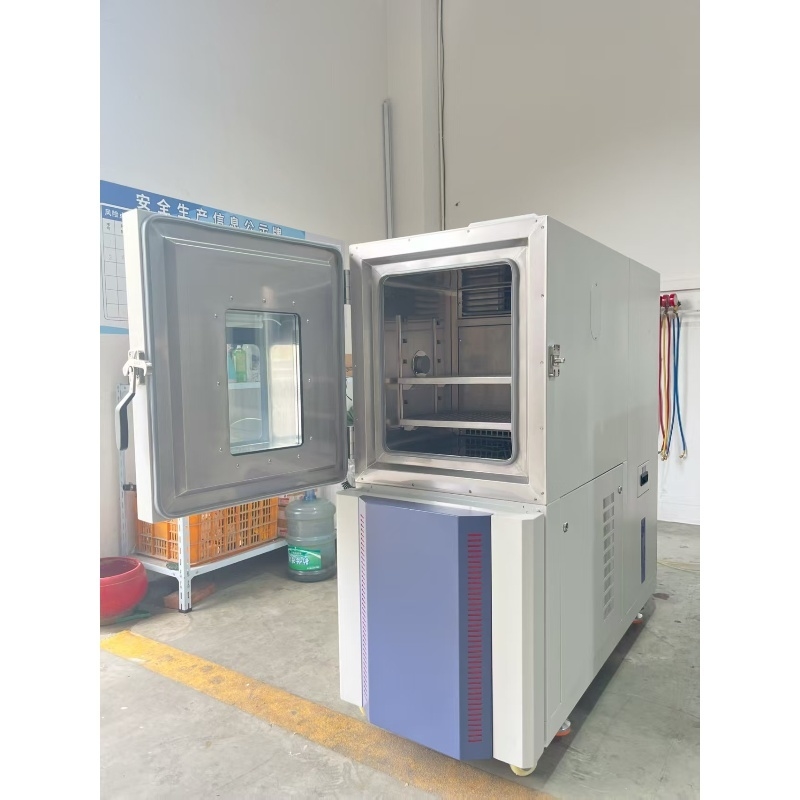

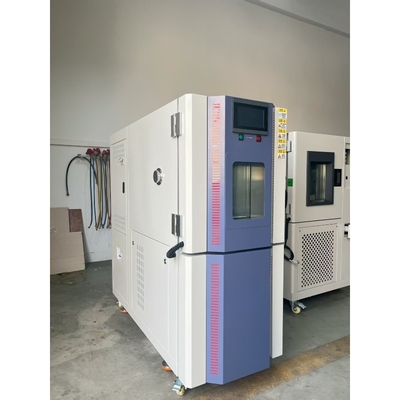

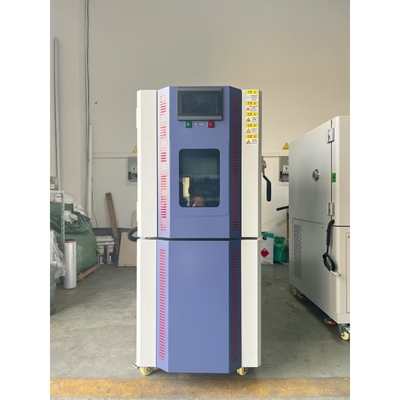

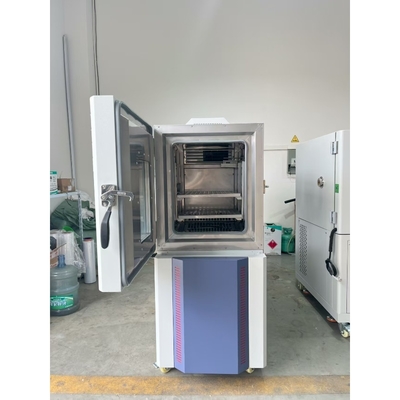

Product Images
ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V 0
ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V 1
ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V 2
ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V 3
ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V 4
ISO 9001 CE Environmental Test Chamber -70°C to 150°C 220V/380V 5
OEM customization available. High cost-performance ratio for quality control in electronics, electrical equipment, automotive, metal, food, chemical, building materials, luggage, adhesive tape, printing, and packaging industries.
