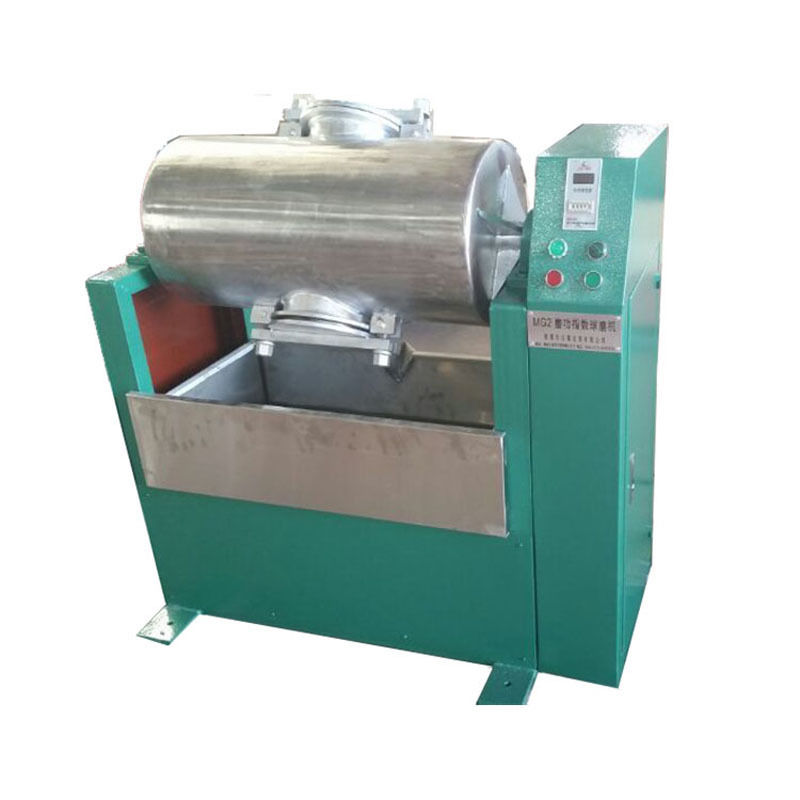

LRMG Grindability Index Ball Mill Bond Work Index Ball Mill

LRMG Grindability Index Ball Mill Bond Work Index Ball Mill
LRMG Grindability Index Ball Mill Bond Work Index Ball Mill

Large Image :  LRMG Grindability Index Ball Mill Bond Work Index Ball Mill

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: LRMG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200

LRMG Grindability Index Ball Mill Bond Work Index Ball Mill

Description
Mill Type: Ball Mill/Rod Mill Drum Dimensions: Ø305 × 305 Mm/Ø305 × 610 Mm
Rotational Speed: 70 ± 0.5 R/min/46 ± 0.5 R/min Motor Power: 0.75 KW
Warranty: 1 Year Certification: Includes Calibration Certification

LRMG Grindability Index Ball Mill Bond Work Index Ball Mill

1.Description:

The fineness index of grinding is an index indicating the grindability of cement raw materials and their mixtures. The principle of its measurement method is to grind the materials in a specified grinding machine until a balanced state is reached. Then, the fineness index is calculated based on the amount of finished product generated by the grinding machine per revolution, and it is used to represent the difficulty of grinding the materials. This ball mill is the key instrument and equipment for measuring the fineness index, also known as the Bond Fineness Index Mill. It is widely used in teaching and research departments for testing the grindability of cement raw materials and mixtures.

2.Technical Parameter

Parameter Model 1 (Ball Mill) Model 2 (Rod Mill)
Mill Type Ball Mill Rod Mill
Drum Dimensions Ø305 × 305 mm Ø305 × 610 mm
Rotational Speed 70 ± 0.5 r/min 46 ± 0.5 r/min
Motor Power 0.75 kW 0.75 kW
Total Grinding Media Weight 20.568 kg 33.38 kg
Grinding Media Composition - 25 pcs Ø38 mm
- 39 pcs Ø32 mm
- 60 pcs Ø25 mm
- 68 pcs Ø22 mm
- 93 pcs Ø19 mm
- 45 pcs Ø38 mm
- 70 pcs Ø32 mm
- 100 pcs Ø25 mm
- 120 pcs Ø22 mm
- 170 pcs Ø19 mm
Max Feed Size ≤ 3.2 mm ≤ 12.7 mm
Feed Volume per Batch 700 cm³ 1250 cm³
