220V 50Hz Ceramic Tester Clayware Permeability Tester Permeability Analyzer

Large Image : 220V 50Hz Ceramic Tester Clayware Permeability Tester Permeability Analyzer

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	DSY-II

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

220V 50Hz Ceramic Tester Clayware Permeability Tester Permeability Analyzer

Description

Power Supply:	220 V, 50 Hz	Silicone Ring Dimensions:	Ø50× Ø35× 3 Mm/Ø25× Ø15× 3 Mm
Sample Holder Diameter:	Ø50 Mm Or Ø25 Mm	Water Outlet Diameter:	Ø5 Mm
Test Pressure:	0-1.0 MPa	Warranty:	1 Year
Certification:	Includes Calibration Certification
Highlight:	50Hz Ceramic Tester , 220V Ceramic Tester , Clayware Permeability Tester

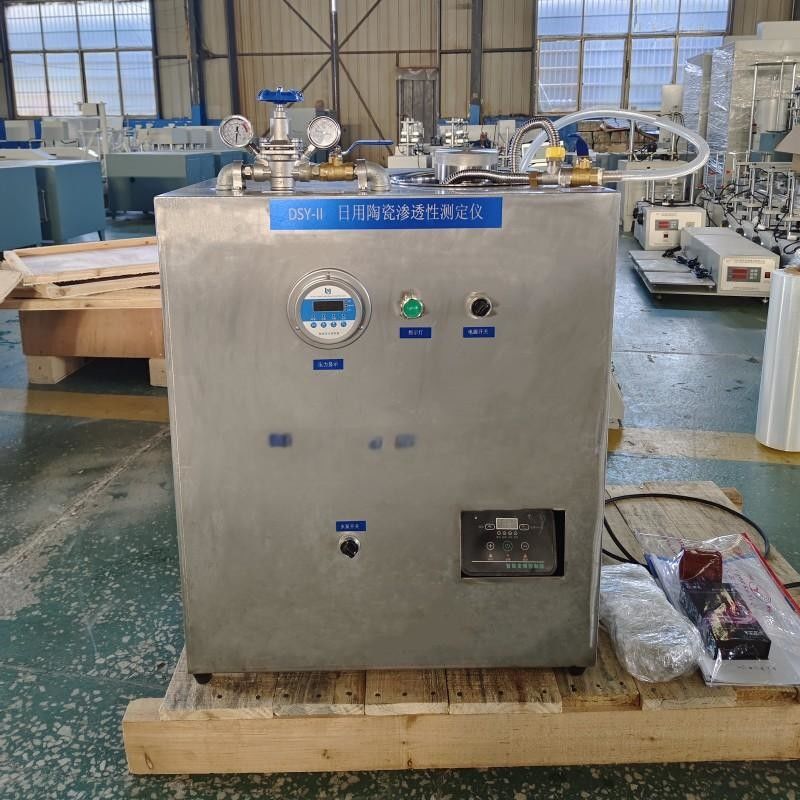

DSY-II Ceramic Permeability Tester Clayware Permeability Analyzer

1.Description:

The DSY-II Daily Ceramic Permeability Tester complies with the requirements of Clause 5.4 in the "Permeability Test Method for Daily Ceramic Products" (GB/T 4737-2020), and is applicable for the permeability tests of daily ceramic products and other types of ceramic products.
2.Working Equipment

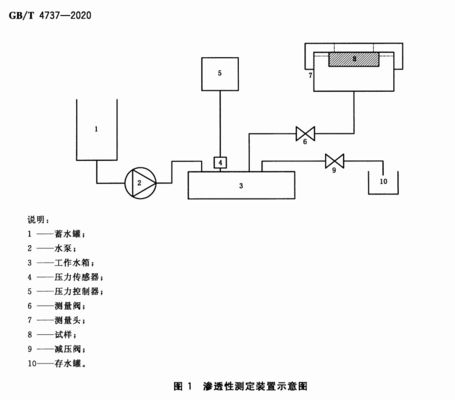

Permeability is characterized by the initial time it takes for the sample to allow water to pass through under water pressure.

3.Technical Parameter

Parameter	Specification
Test Pressure	0-1.0 MPa (adjustable)
Water Outlet Diameter	Ø5 mm
Sample Holder Diameter	Ø50 mm or Ø25 mm (for cylindrical/flat samples)
Silicone Ring Dimensions	• Ø50 mm × Ø35 mm × 3 mm • Ø25 mm × Ø15 mm × 3 mm
Measurement Accuracy	±1%
Power Supply	220 V, 50 Hz
