Product Details:
|
| Power Supply: | AC 220V ±10%, 50 Hz | Dimensions: | 850 × 1350 × 1600 (mm) |
|---|---|---|---|
| Maximum Test Force: | 4000 N | Working Pressure: | 0 - 0.70 MPa |
| Warranty: | 1 Year | Certification: | Includes Calibration Certification |
| Highlight: | Ceramic Load Bearing Tester,Sanitary Ware Load Resistance Test Machine,Ceramic Load Resistance Test Machine |
||

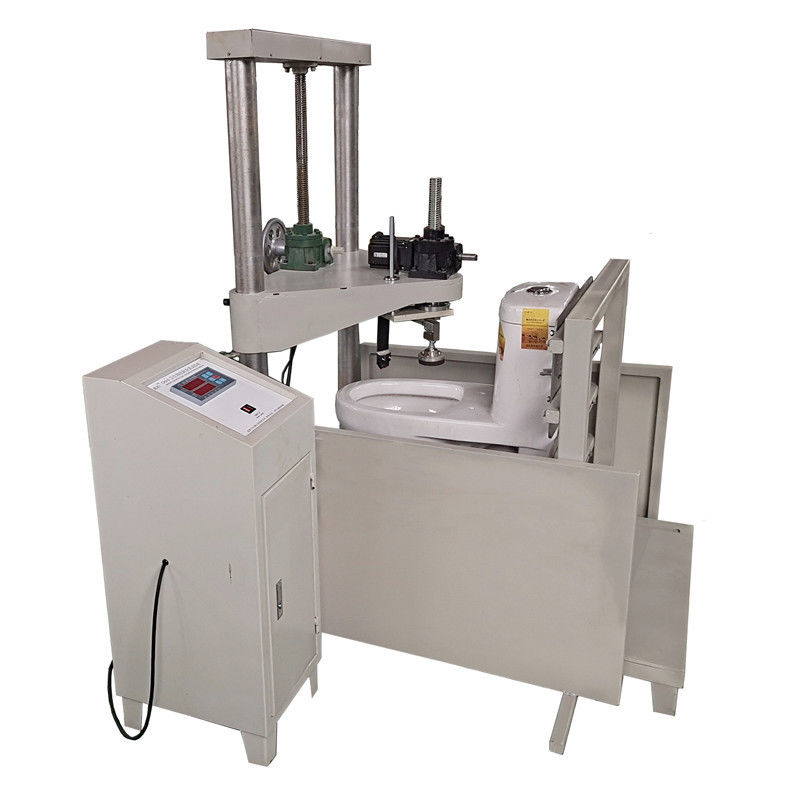

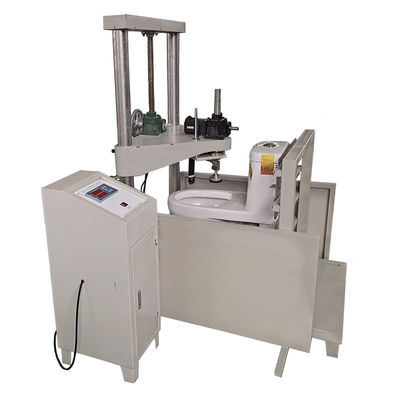

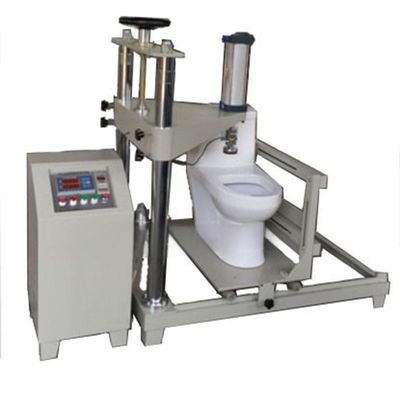

The LRHJ-II type sanitary ceramic load-bearing testing machine (hereinafter referred to as the "testing machine") adopts electric loading to test the load-bearing capacity of sanitary ceramics such as toilet seats, wash basins, urinals, washing sinks, bathtubs, and shower stalls. This equipment complies with the requirements for load-bearing testing equipment in GB/T 6952-2015 "Sanitary Ceramics". This machine has the advantages of simple operation, stable loading, high measurement accuracy, and high automation level. It is an ideal equipment for conducting load-bearing tests on various sanitary ceramic products.
2.Technical Parameter
| Parameter | Specification |
| Maximum Test Force | 4000 N (Motorized Loading) |
| Working Pressure | 0 - 0.70 MPa (Adjustable) |
| Loading Method | Motorized Loading |
| Pressure Display | Digital Pressure Display (w/ Peak Hold) |
| Power Supply | AC 220V ±10%, 50 Hz |
| Dimensions (L×W×H) | Approx. 850 × 1350 × 1600 (mm) |
