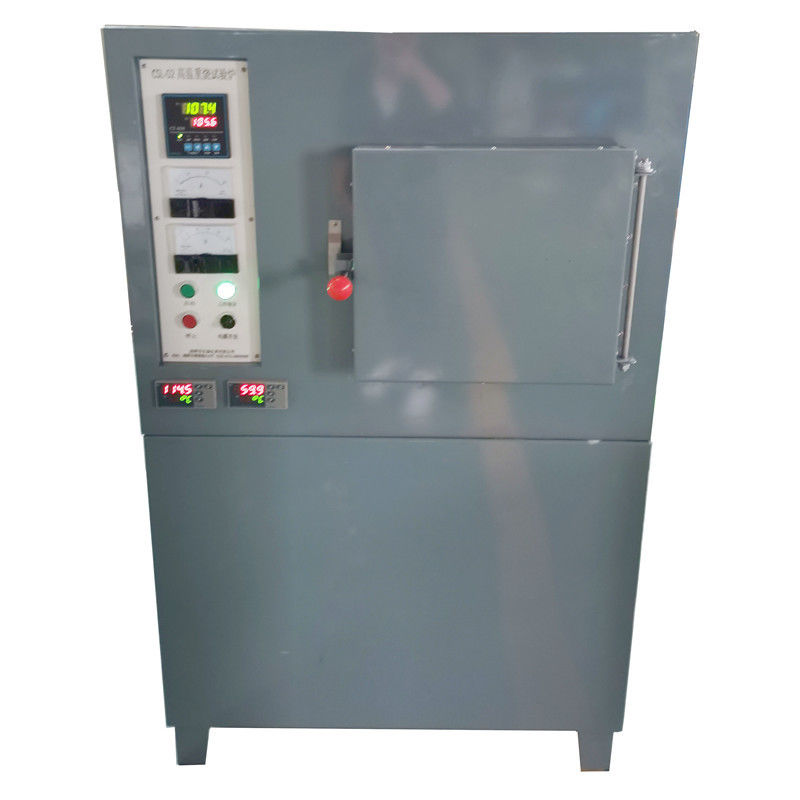

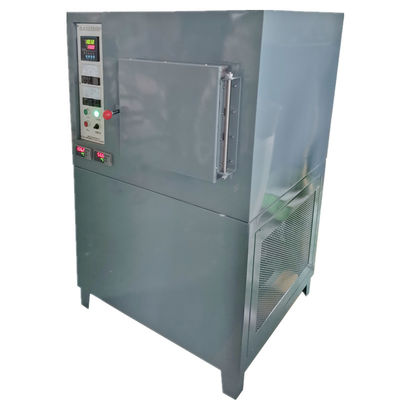

LRSL-02 High-Temperature Reheating Linear Change Box Reburning Test Furnace

Large Image : LRSL-02 High-Temperature Reheating Linear Change Box Reburning Test Furnace

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LRSL-02

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

LRSL-02 High-Temperature Reheating Linear Change Box Reburning Test Furnace

Description

Power Supply:	380 V, 50 Hz	Max. Temperature:	1600 °C
Heating Rate:	0-10 °C/min	Chamber Dimensions:	510 × 250 × 210 Mm
Warranty:	1 Year	Certification:	Includes Calibration Certification

LRSL-02 High-Temperature Reheating Linear Change Box Reburning Test Furnace

1.Description:

It is mainly used for detecting the re-crenulation line change performance of refractory materials. It can also be used as a box-type electric furnace for material sintering, melting and heat treatment.

2.Configuration:

Includes 1 electric furnace body, 2 B-type thermocouples, and 1 set of silicon-molybdenum rods.

3.Technical Parameter

Parameter / Feature	Specification / Description
Design	Integrated controller and furnace body
Temperature Sensor	Type B (PtRh-PtRh) thermocouple
Temperature Controller	Microcomputer programmable controller
	Multi-segment heating curves
	AI PID control
	Automatic heating, soaking, shutdown
Atmosphere	Oxidizing atmosphere
Safety Features	Thermocouple break protection & alarm
	Current limiting & short circuit protection
Furnace Lining	Polycrystalline mullite fiber
	High temperature resistance
	Low heat capacity
	Fast heating rate
	Excellent insulation
Max. Temperature	1600 °C
Heating Rate	0-10 °C/min
Temperature Control Accuracy	±1 °C (thermocouple)
Chamber Dimensions (L×W×H)	510 × 250 × 210 mm
	(Custom sizes available)
Max. Chamber Temperature Difference	< ±5 °C (dual-zone)
Power Supply	380 V, 50 Hz
