Wide Plasma Surface Processor Surface Activation Treatment Plasma cleaner

Wide Plasma Surface Processor Surface Activation Treatment

1. Outline

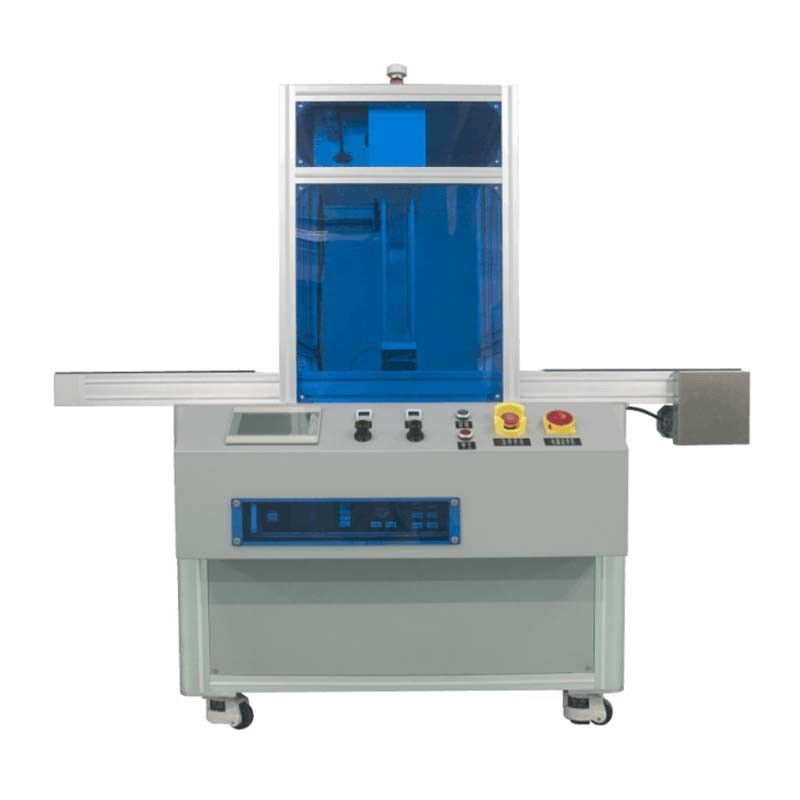

SPK-500S Wide Plasma Cleaning Machine(Plasma cleaner), the gas is separated into plasma state through the excitation power supply, and the plasma ACTS on the product surface to clean the pollutants on the product surface, so as to improve the surface activity and enhance the adhesion. Plasma cleaning is a new, environmental protection, efficient and stable surface treatment.

2. Product feature
1. A dielectric is placed between the metal electrodes, and a uniform electric field is formed and a plasma is generated by taking advantage of the polarization phenomenon on the surface of the dielectric.
2. It can form plasma on a large scale and can be used with automatic pipeline;
3. More reliable power amplifier and dc module, using automatic vacuum capacitor matcher to provide long-term stable process time guarantee;
4. Suitable for mass production of large size products;
5. Low treatment temperature, conventional treatment temperature < 40ºC

3. Industry application
1. Display industry: TP fitting, panel surface activation, surface cleaning before ITO coating;
2. Glass cover industry: AF coating pretreatment, AF/AS overflow plating removal, ink printing;
3. Semiconductor: integrated package bonding, Wire bond pretreatment, ceramic packaging, BGA/LED surface activation;
4. Circuit board: FPC/PCB organic cleaning and surface activation;
5. Plastic industry: surface modification, surface coarsening.

4. Specification of equipment

2.2 Factory specifications

2.3 General Requirements

Equipment dimension drawings:
