BGD 860 Xenon Test Chamber Solar Simulator Xenon Lamp Weather Resistant Aging Machine

BGD 860 Xenon Test Chamber Solar Simulator Xenon Lamp Weather Resistant Aging Machine

1.Description

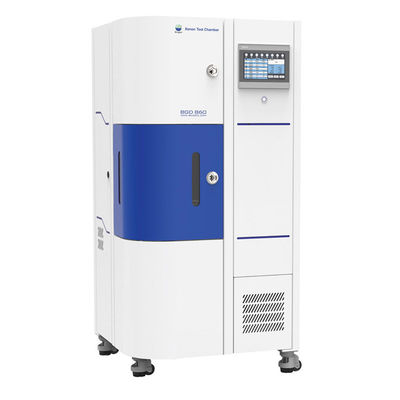

BGD 860---Xenon Test Chamber is a high-performance, economical, and easy-to-maintain xenon aging tester designed for reliability and simplicity. It utilizes an authentic U.S.-sourced air-cooled xenon lamp to precisely replicate the full solar spectrum, delivering lab test results that closely align with real-world outdoor material behavior. The rotating sample holder ensures uniform light exposure across all test specimens during operation.

Compatible with global xenon testing standards, this chamber holds 22 standard-sized samples (150×70mm) and combines advanced spray functionality with humidity regulation. Users can effortlessly configure test parameters (irradiance, exposure duration, black panel temperature, humidity, spray cycles, etc.) through an interactive touchscreen, track real-time performance, and export data via USB for analysis.

Features:
◆ Rotating sample rack for even light distribution.
◆ Authentic U.S.-manufactured xenon lamp ensures data accuracy and repeatability.
◆ Closed-loop irradiance control dynamically adjusts for lamp aging, maintaining stable energy output across a broad range.
◆ Durable air-cooled xenon lamp (1,500-hour life) meets international certification requirements.
◆ Three filter options (daylight, extended UV, window glass) for varied test scenarios.
◆ Multi-parameter precision control including irradiance (340nm, 420nm, 300-400nm, 300-800nm), temperature (black panel/black standard: ambient +30℃ to 100℃), and humidity (20%-95% RH).
◆ Customizable testing with 9 user-defined programs and 6 preloaded international standards, each allowing 10-stage parameter adjustments.
◆ Automated Excel reporting with USB data export enables unmanned operation.

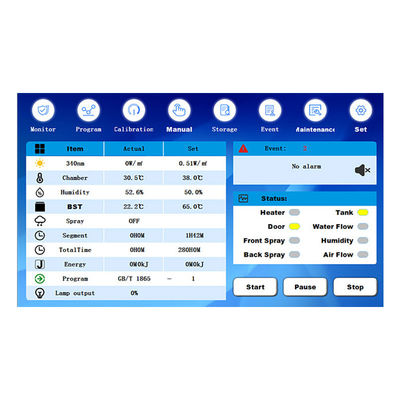

◆ User-friendly touchscreen for seamless setup and monitoring.
◆ Pt100 sensors ensure precise temperature measurement and control.
◆ Comprehensive safety alerts for irradiance errors, temperature/humidity shifts, low water levels, lamp faults, and overheating.
◆ Budget-friendly solution with low initial investment, affordable lamp replacements, and minimal operating costs—ideal for labs of all sizes.

2.Technical Parameter
