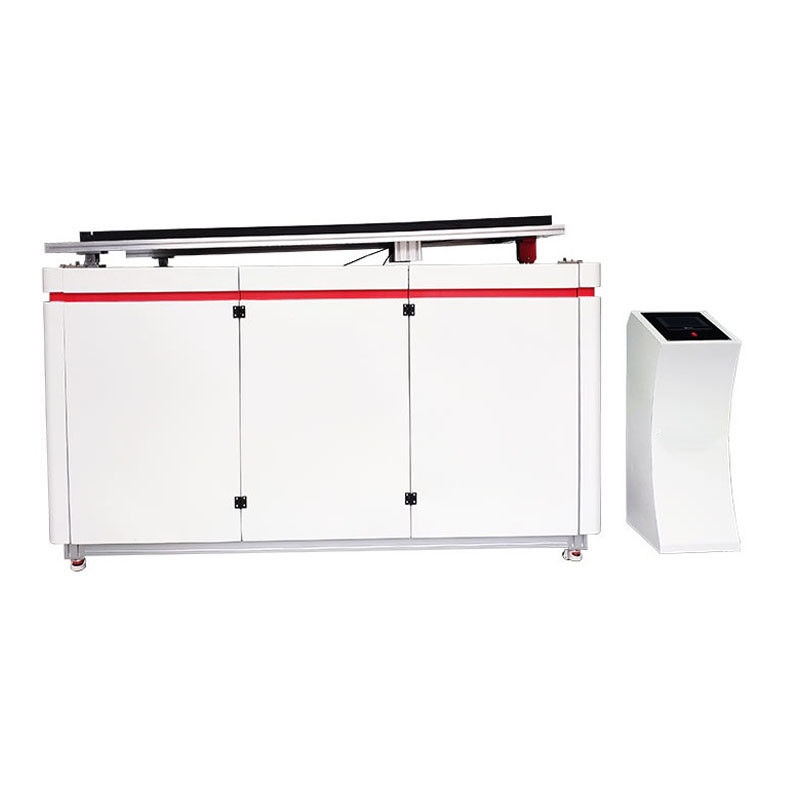

Lead Terminal Fatigue Tensile Strength Testing Machine Photovoltaic Module Test Machine

Lead Terminal Fatigue Tensile Strength Testing Machine Photovoltaic Module Test Machine
Lead Terminal Fatigue Tensile Strength Testing Machine Photovoltaic Module Test Machine

Large Image :  Lead Terminal Fatigue Tensile Strength Testing Machine Photovoltaic Module Test Machine

Product Details:
Place of Origin: China
Brand Name: LONROY
Certification: ISO CE ASTM
Model Number: LR-P1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden pakage
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200 pieces
Contact Now

Lead Terminal Fatigue Tensile Strength Testing Machine Photovoltaic Module Test Machine

Description
Power: 220v Warranty: 1 Year
Highlight:

Fatigue Tensile Strength Testing Machine

,

Lead Terminal Tensile Strength Testing Machine

,

Fatigue Strength Testing Machine 220v

Lead Terminal Strength Testing Machine Photovoltaic Module Test Machine Tensile Fatigue Test Machine
1. This equipment is mainly used for the attachment of the lead end and the component body, whether the attachment of the lead and the component body can withstand the force in the normal installation and operation process.
Applicable standard: IEC 61215-2:2016 standard requirements

2. Technical specifications

 Component test size 2000x 1000mm (customizable)
Measurement accuracy  ≤3%
Configure conventional lead terminal fixture
1. Install surface junction box retention test
a. 40N is applied to the center of the box to prevent torque from being applied to the junction box

Holding time 10+1sc
Force application method weight
Timing method stopwatch
Tension test
Use motor to provide power source
Weight 30N, 42N, 55N, 70N, 80N, 90N, 100N, 115NC
Tension cycle  1s
Number of times 54 times (settable)
Displacement: manual measurement

Torque test
Force device: servo motor Power supply 220V 50Hz
Power 400W
continuous Output current 2.6
Arms Feedback resolution 17-bit (1 60000p/rve)
speed control range 1:5000
output signal pulse signal
test time 1min (can be set, automatically maintained)
automatic display of torque, angle d. touch screen control
