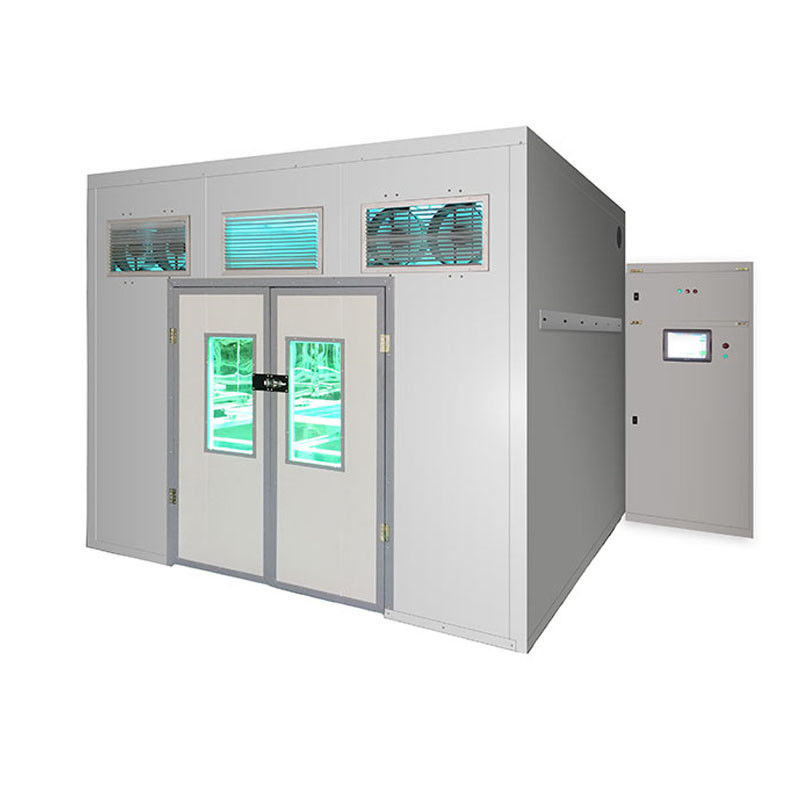

Photovoltaic Module UV Aging Testing Machine Solar Panel Test Chamber IEC 61215

Photovoltaic Module UV Aging Testing Machine Solar Panel Test Chamber IEC 61215
Photovoltaic Module UV Aging Testing Machine Solar Panel Test Chamber IEC 61215

Large Image :  Photovoltaic Module UV Aging Testing Machine Solar Panel Test Chamber IEC 61215

Product Details:
Place of Origin: China
Brand Name: LONROY
Certification: CE ISO ASTM
Model Number: LR-V15
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden pakage
Delivery Time: 5-8 work days
Payment Terms: ,L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200 pieces
Contact Now

Photovoltaic Module UV Aging Testing Machine Solar Panel Test Chamber IEC 61215

Description
Warranty: 1 Year Power: 220v
Highlight:

Photovoltaic Module UV Aging Testing Machine

,

UV Aging Testing Machine IEC 61215

,

Solar Panel Test Chamber IEC 61215

Photovoltaic Module Testing Machine UV Aging Test Chamber  Solar Panel Testing Machine IEC 61215

1. Product Description
Purpose of UV pretreatment tester: The UV aging tester for photovoltaic modules simulates the damage caused by the UV rays in sunlight when the modules are exposed outdoors for a long time. This equipment only takes a few days or weeks to reproduce the anti-UV aging performance of the module-related materials that takes months or years outdoors.



Applicable standards for  UV Aging Test Chamber : IEC 61215, IEC 61646 standard requirements



Materials used high-quality materials that can completely block ultraviolet rays, have good sealing and thermal insulation propertie
Total UV irradiation
 area of the equipment
 		 greater than 2000mm×2000mm, meeting the requirements for testing two 2m×1m components at the same tim
Light source life
 		 The system uses a single set of xenon lamps with a life of about 1000 hours. A set of spare parts is provided when the equipment is delivered, with a service life of more than 2000 hours
Relative energy ratio of single lamp UVA and UVB
 		 UVB accounts for about 3% to 10% of the total energ
Irradiation intensity
 		 The irradiation intensity of the wavelength of 280nm to 385nm can reach about 100W/m², 280nm to 320nm <=10%, ensuring that the test cycle is shortened as much as possible

Irradiation uniformity  better than ±15
Real-time monitoring and display of UVA and UVB intensity
One UVA (320nm to 385nm) and one UVB (280nm to 320nm) fiber optic probe
Component surface temperatur 60ºC±5ºC

Temperature resolution
 		 0.1ºC
Ozone
 		  Almost no ozone is generated

Lighting method
 		 top lighting, the component test plane is perpendicular to the light source

Touch screen control and real-time monitoring, automatically cut off the light source when the set value is reached
 Real-time graphical display of component surface temperature, measurement accuracy ±0.1ºC
