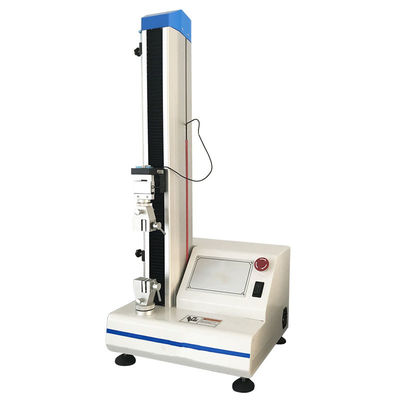

ASTM D3330 ISO 7500 Universal Tensile Test Machine 100W Foam Testing Machine For Polymers

ISO 7500 Foam Compression Testing Machine Compression Testing of Polymer Materials
1. Scope of application
It is widely used in the compression test of polymer materials, adhesives, tapes, films, wires, containers and other products and semi-finished products, and can test the compressive force value and compression rate of different thickness points to meet the physical performance tests such as compression ratio, compression force, compression displacement, etc., and obtain test data and report curves.

2. Comply with standards
ISO 7500 - 1,JJG475 - 88,ASTM E4,DIN 5122,JIS B7721/B7733,EN 10002 - 1,EN 1002 - 2,BS 1610,GB/T228,GB/T2792,ASTM D3330,GB/T15598 - 1995,HGT 2 - 163,GT/T7753 - 1987,GT/T7754 - 1987,GB/T7124 - 86 , GB/T7124 - 2008, etc

3. Product features
1. Powerful test function, with different fixtures, can carry out various test requirements to meet user needs.
2. The software is more powerful and can get various test results. The test curve can be displayed at will and automatically marked in the interval, etc., and can be upgraded at any time to achieve positioning, concentration, timing, repeated fatigue testing, etc.
3. The machine design is beautiful and generous, easy to operate, strong software scalability and high accuracy.
4. Servo motor driven, high-precision ball screw drive, low failure rate and simple maintenance.
Machine Structure:
45# steel is selected, sandblasted electrostatically sprayed, and the surface does not peel off;
The dust cover adopts mold processing and extrusion molding process, and the surface is anodic silver sandblasting, which is beautiful and durable;
Servo motor control system, equipped with precision synchronous wheel and precision ball screw transmission;
The force measurement system adopts the latest high-speed, high-resolution, high-precision AD converter, continuous acquisition without division; It has reached ± 500,000 subdivision codes, reaching the international advanced level.
Force measurement range: 0.5--100% FS
Measurement accuracy: 0.5 class
Resolution: 1/500,000
Equipped with precision tensile and compression sensor, it can meet the requirements of high stability and high-precision force acquisition;
The displacement measurement system unit adopts the latest high-speed, high-resolution, high-precision AD converter, continuous acquisition, no subdivision; It has reached ± 500,000 subdivision codes, reaching the international advanced level.
Deformation measurement range: 1 - 100%FS
Measurement accuracy: 0.5 class
Resolution: 1/500,000
The servo motor is equipped with a high-line photoelectric encoder to output a displacement signal, which has the characteristics of fast transmission speed and high precision.

4.Product Parameter

Measurement and control software

The software meets the requirements of testing various materials, such as tension, compression, bending, shear, tearing, peeling and so on.

1, can carry out tensile, compression, bending, shear, tear, peel test;

2, can calculate the maximum value, damage value, tensile strength, compressive strength, bending strength, elongation, elongation, average peel force, elastic modulus, yield strength and other maximum deformation, yield point, elastic modulus and other parameters;

3, automatic return: select the automatic return function, after the test interrupt, automatically return to the initial position at high speed;

4, curve processing can be carried out, support multi-sensor, graphical interface, flexible data processing, support Windows as a system;

5, convenient docking office software; test results can be accessed arbitrarily, data curve can be re-analyzed;

6. Comparison of results: It can be superimposed, reproduced, enlarged, and presented with multiple test characteristic curves in different colors to analyze and compare a group of samples;

7. Test report: The report can be printed directly or exported in PDF, Word, Excel and other formats;

8. Support multiple languages, switch at will, display the name of the database field of the test data to follow the selected text and automatically translate, so that the data can be easily browsed in the local text, basically meeting the use of test machines around the world;

9. Support 3 types: SI international standard unit, kg-cm unit, Lb-Inch imperial unit, 6 common units: N-mm-MPa, kN-mm-MPa, gf-cm-kgf/cm2, kgf-cm-kgf/cm2, Lb-Inch-kpsi, kP-Inch-kpsi, easy to switch units, can meet the use standards of different regions.

10. Test mode structure output:

Tensile: maximum force, tensile strength, yield strength, elongation after fracture, elastic modulus, etc.

Bending: maximum force, bending strength, deflection, elastic modulus, etc.

Compression: maximum force, compressive strength, yield strength, elastic modulus, etc.

Tear: maximum force, tear strength, etc.

Peeling: maximum peeling force, average peeling force, minimum peeling force, maximum peeling intensity, average peeling intensity, minimum peeling intensity, etc.

11. Support raw data view function, provide raw data archive for material test analysis;

12. The photoelectric isolation communication interface is adopted to completely solve the damage of computer serial port or circuit board serial port caused by different grounding, and realize the hot plug of computer and test circuit;

13. The software adopts hierarchical authority management: tester level authority, test management authority, tester manufacturer authority, giving consideration to convenience and security of use.

14. One key measurement is completed, the analysis curve can be output, and the test report can be printed.
