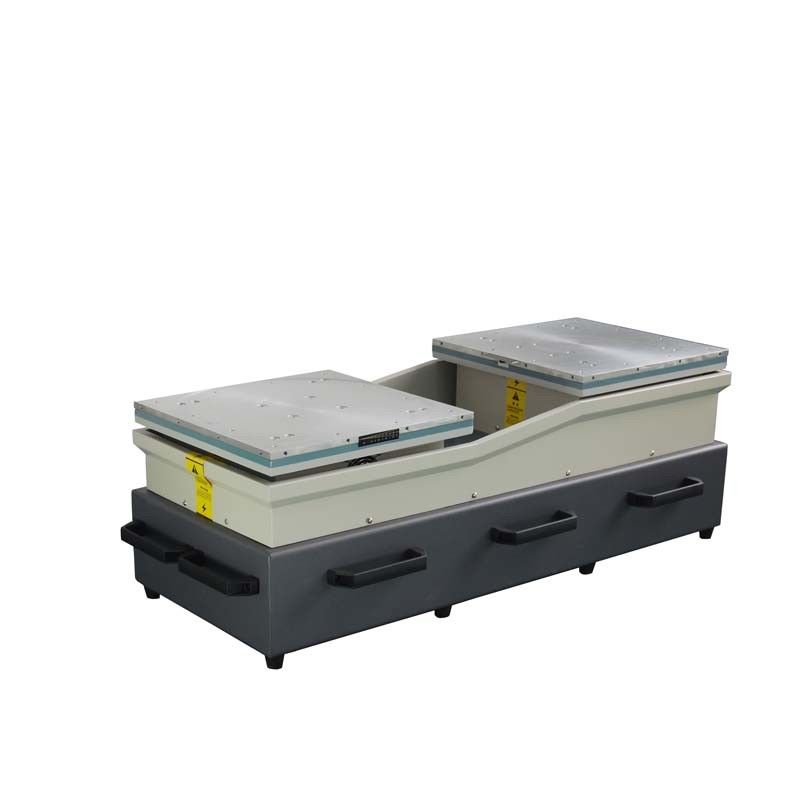

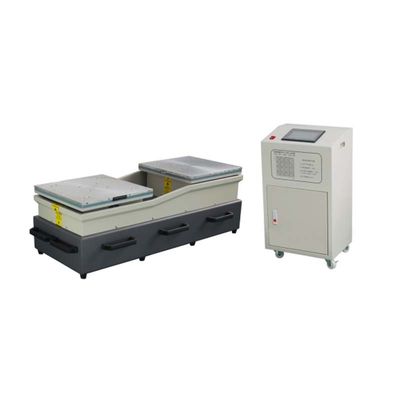

Vertical Horizontal Vibration Testing Machine Electromagnetic Load Cell Testing Machine

Electromagnetic Vertical And Horizontal Tester With Load Cell

1. Product overview
1. The electromagnetic vibration test series is widely applicable to industries such as national defense, aerospace, communications, electronics, automotive, and home appliances. This type of equipment is used for detecting early faults, simulating actual working condition assessment, and structural strength testing. The product features a wide range of application fields, broad applicability, and remarkably reliable test results.
2. Humanized operation and control, using professional control software control, make the equipment work more stable and reliable
3. The whole machine is made of composite industrial materials with precise processing and ultra-low noise.
4. The table top is made of magnesium-aluminum alloy, which can completely isolate the magnetic field interference and effectively prevent the measured object from magnetization.

5. Sweep and fixed frequency operation modes, adapting to the test requirements of different industries
6. High-precision frequency output, four-point synchronized vibration, uniform shaker
7. High anti-magnetic and anti-interference capability
8. It has the safe and reliable protection function
9. The main body of the platform adopts high-efficiency, low-noise fan cooling to ensure long-time continuous operation.
10. It has constant vibration amplitude vibration and constant acceleration vibration
11. The system is equipped with high-precision vibration sensors, which can collect acceleration, amplitude and frequency indicators in real time.

2. Technical parameters

3. Sensor parameters

Signal input channel	1 channel input, the input impedance is greater than 220 k Ω, channel automatically set range, preset the sensitivity of the sensor, the coupling method (DC)
Resolution	24 bit A/D converter
Filter	analog anti-aliasing filter +160dB/oct digital filter eliminates nonlinear phase distortion and aliasing
Signal conditioning	charge input, built-in sensor constant current source and charge amplifier.
Signal-to-noise ratio	>100 dB
Operating mode	Constant frequency mode (constant amplitude mode and constant acceleration mode) Sweep mode (constant amplitude scan and constant acceleration scan) Multistage model
Sweep frequency	linear
Operation mode	touch screen control
Cooling mode	air cooling
Operating temperature requirement (ºC)	0~+40
Operating humidity requirements (%RH)	0-90, no condensation
Power requirements	three-phase AC 380V/50Hz ±10%
System power consumption (KVA)	3.8
Touch screen LCD	10 "TFT LCD
Brightness of touch screen	350cd/m2
Touch screen color	65536 colors
Touch screen resolution	800*480
Work table material	magnesium aluminum alloy
Table screw size (standard)	M8 (customizable)
Number of table screws	8 (customizable)
Total weight (kg)	75
Table size W.D.H. (mm)	550*550*43
Table size W.D.H. (mm)	1100*800*450
Control cabinet size W.D.H. (mm)	420*300*750
