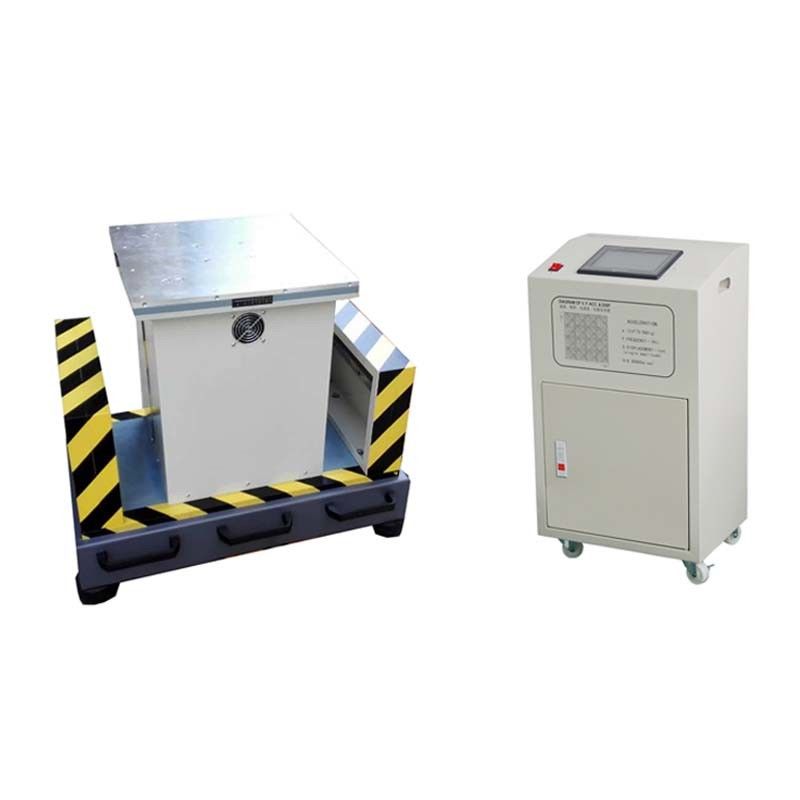

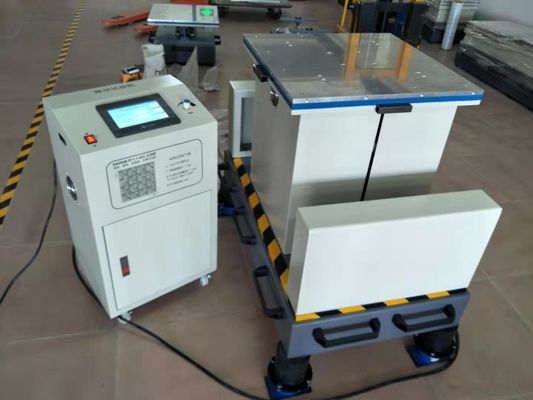

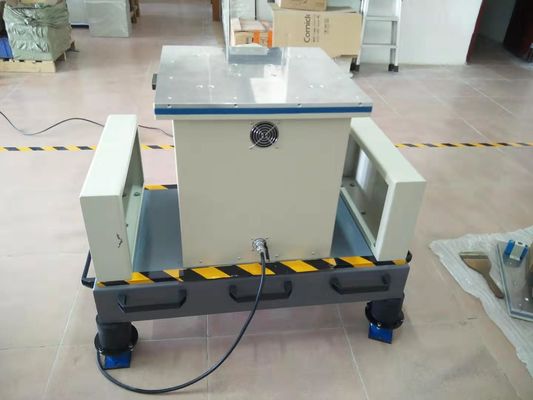

X Y Z Vibration Test Machine Three Axis Triaxial Vibration Test Table

X Y Z Vibration Tester Three-Axis Vibration Test Table

1. Product overview
1. Electromagnetic vibration test series are widely applicable to national defense, aerospace, communications, electronics and automobiles, home appliances and other industries.This type of equipment is used for detecting early faults, simulating actual condition assessment and structural strength test. The product has a wide range of applications, wide applicable surface, and remarkable and reliable test results.
2. Featuring humanized operation and control, the equipment is controlled by professional control software, ensuring more stable and reliable performance.
3. The whole machine is made of compound industrial materials, precision processing, super quiet
4. The table panel is made of magnesium aluminum alloy material, which can completely isolate the magnetic field interference and effectively prevent magnetization of the measured object
5. Featuring both sweep frequency and fixed frequency operation modes, it adapts to testing requirements across diverse industries.
6. High precision frequency output, four-point synchronous vibration, even vibration table
7. Strong anti-magnetic and anti-interference ability
8. It incorporates safe and reliable protective functions
9. The platform body adopts high efficiency and low noise fan to cool down, ensuring a long time of continuous operation

2. Technical parameters

Frequency range (Hz)	5~400
Sweep frequency range (Hz)	5~400
Maximum acceleration (m/s2)	170
Maximum test load (kg)	60
Maximum no-load displacement (mmp-p)	0~5
Vibration waveform	sine wave
Axial vibration	up and down, right and left, and front and rear (3-axis all-in-one machine)
Excitation mode	electromagnetic excitation
Control mode	touch screen control
Operation mode	fixed frequency, sweep frequency
Sweep frequency	linear
Cooling mode	air cooling
Operating temperature requirement (ºC)	0~+40
Operating humidity requirements (%RH)	0-90, no condensation
Power requirements	single-phase AC 220V/50Hz ±10%
System consumed power (KVA)	2.2
Touch screen LCD	7 "TFT LCD
Brightness of touch screen	350cd/m2
Touch screen color	65536 colors
Touch screen resolution	800*480
Work table material	magnesium aluminum alloy
Table screw size (standard)	M8 (customizable)
Number of table screws	8 (customizable)
Total weight (kg)	75
Table size W.D.H. (mm)	550*550*43
Table size W.D.H. (mm)	1100*800*450
Control cabinet size W.D.H. (mm)	720*450*750

Touched screen controller menu

Computer Menu
