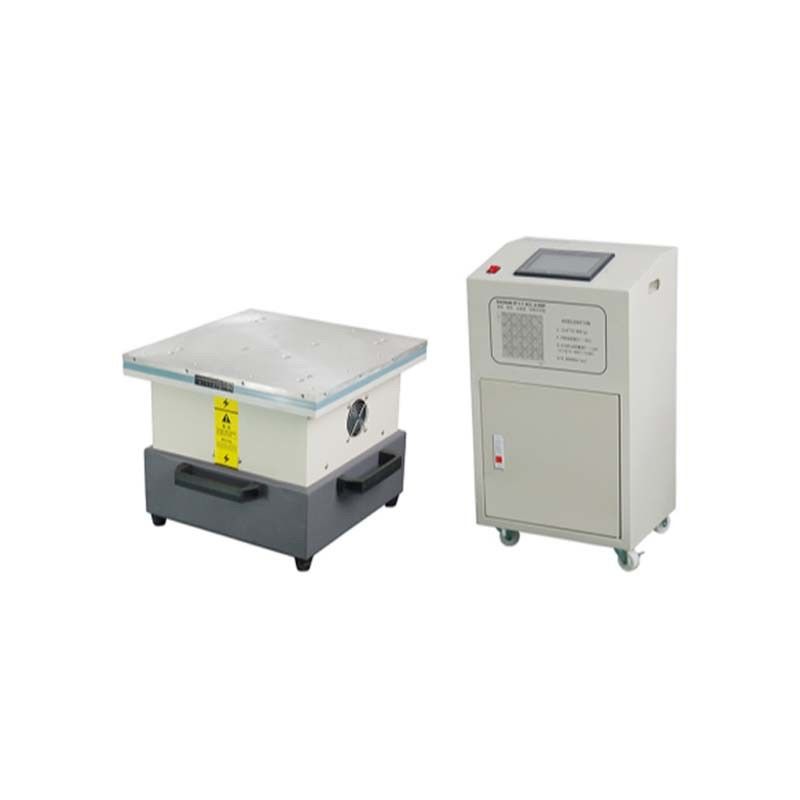

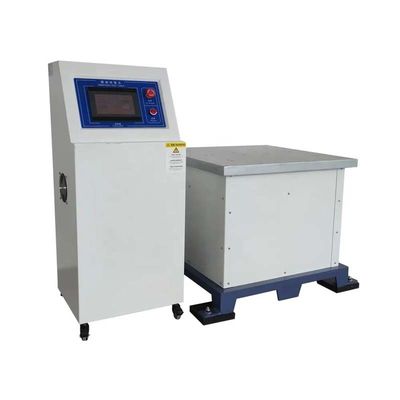

Lab Vertical Vibration Test Machine Electromagnetic Shaking Table Aluminum Alloy

Electromagnetic Type Vertical Vibration Tester Shaking Table

1. Product overview
The electromagnetic vibration test series is widely applicable to industries such as national defense, aerospace, communication, electronics, automobiles, and home appliances. This equipment is used for early fault detection, simulation of actual working conditions assessment and structural strength tests. This product has a wide range of applications and a broad application scope, and the test results are significantly reliable.
1. humanized operation and control, using professional control software control, make the equipment work more stable, more reliable
2. the whole machine is made of compound industrial materials, precision processing, super quiet
3. the table panel is made of magnesium aluminum alloy material, which can completely isolate the magnetic field interference and effectively prevent magnetization of the measured object
4. sweep frequency and fixed frequency operation mode, adapt to different industry testing requirements
5. high precision frequency output, four-point synchronous vibration, even vibration table
6. strong anti-magnetic and anti-interference ability
7. has the safe and reliable protection function
8. the platform body adopts high efficiency and low noise fan to cool down, ensuring a long time of continuous operation.

2. Technical parameters

Frequency range (Hz)	5~400
Sweep frequency range (Hz)	5~400
Maximum acceleration (m/s2)	170
Maximum test load (kg)	20
Maximum no-load displacement (mmp-p)	0~2 (automatic adjustment) and 0~5 (manual adjustment)
Vibration waveform	sine wave
Vibration axial	vertical
Excitation mode	electromagnetic excitation
Vibration control mode	closed-loop control
Data acquisition mode	vibration data acquisition instrument + acceleration sensor
Acceleration sensor	1 (built-in vibration table body)
Sensor type	piezoelectric acceleration sensor
Signal input channel	1 channel input, input impedance is greater than 220K ω, channel automatically set range, preset sensor sensitivity, coupling mode (DC)
Resolution	24 bit A/D converter
Filter	Analog anti-aliasing filter +160dB/ OCT digital filter eliminates nonlinear phase distortion and aliasing
Signal conditioning	charge input, built-in sensor constant current source and charge amplifier.
SNR	> 100 dB
operation mode	Fixed frequency mode (constant amplitude mode and constant acceleration mode) Sweep mode (constant amplitude sweep and constant acceleration sweep) Multi-stage mode (constant amplitude mode and constant acceleration mode)
the body shock absorption device	1 set (suitable for high floors and laboratories)
sweep mode	linear
Operation mode	touch screen control (operation language: Simplified Chinese and English)
cooling mode	air cooling
operating temperature requirements (ºC)	0~+40
working humidity requirements (%RH)	0-90, no condensation
power supply requirements	single-phase AC 220V/50Hz ±10%
System power consumption (KVA)	2.5
touch screen display LCD	Vellon 7.1 inch TFT LED
Touch screen parameters	Touch screen brightness: 400CD /m2 Touch screen colors: 16.2m colors Touch screen resolution: 1024 x 600 Touch screen contrast: 600:1
work table materia	aluminum alloy
table screw size (standard)	M8 (customizable)
number of mesa screws	8 (customizable)
total weight (kg)	150
table size W.D.H (mm)	450*450*43
body size W.D.H (mm)	450*450*385
control cabinet size W.D.H (mm)	500*400*860
