ISO 4649 Finished Shoe Leather Heel Surface Grinding Machine Face Abrasion Test Instrument

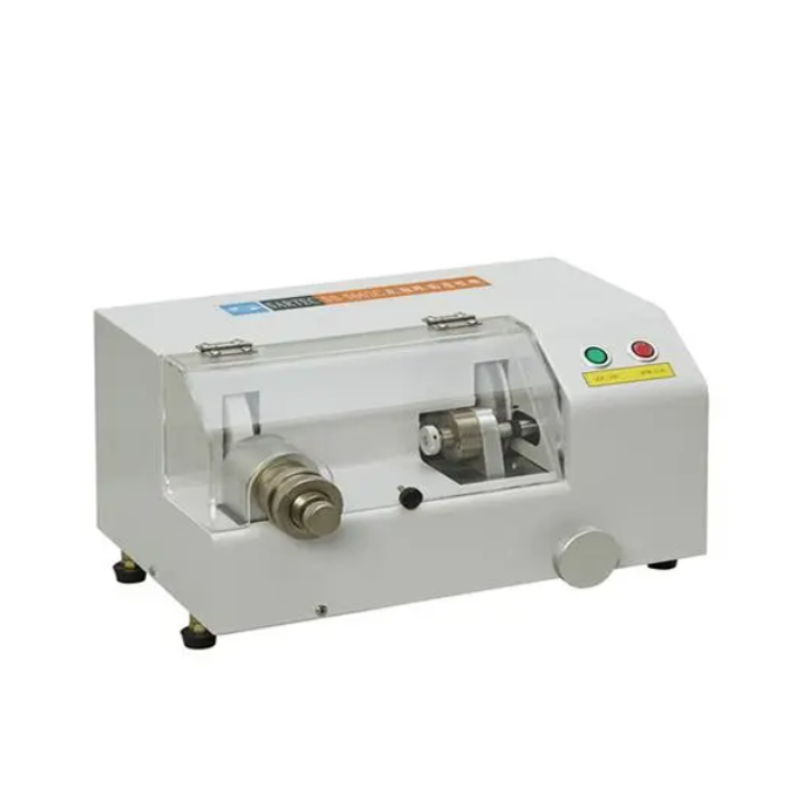

Large Image : ISO 4649 Finished Shoe Leather Heel Surface Grinding Machine Face Abrasion Test Instrument

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-A174

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 4649 Finished Shoe Leather Heel Surface Grinding Machine Face Abrasion Test Instrument

Description

Product Name:	Finished Shoe Leather Heel Surface Grinding Machine	Customization:	Available
Warranty:	1 Year	Overall Dimensions:	430×260×210 Mm
Power Supply:	1-phase, AC 220V 3A	Power:	120 W
Highlight:	ISO 4649 shoe leather abrasion tester , heel surface grinding machine , textile abrasion test instrument

ISO 4649 Finished Shoe Leather Heel Surface Grinding Machine Face Abrasion Test Instrument

Introduction

The shoe heel and upper surface abrasion sample machine is used to shape the samples that are not suitable for cutting into 16mm abrasion test samples for the heel and upper surface.

Usage

Grind and prepare the samples for the face abrasion test.

Meet the standards

GB/T 9867-2008, ISO 4649:2002 "Determination of abrasion resistance of vulcanized rubber or thermoplastic rubber - Rotating cylinder abrasion tester method", sample preparation, GBT 26703-2021 "Test method for abrasion resistance of heel coverings of leather shoes - Rotating cylinder abrasion tester method".

QB/T1002-2015 and GB/T26703-2011 standards

Instrument Characteristics

Fully enclosed design.

Technical specifications

Grinding Wheel Drive Mode	High-speed motor
Grinding Wheel Speed	2800 r/min
Grinding Wheel Peripheral Speed	15 - 20 m/s
Grinding Wheel Diameter	100 - 120 mm
Power	120 W
Dimensions	430×260×210 mm
Diameter of Test Sample After Making Upper of Leather Shoe Heel	16 ± 0.2 mm
Left-Right Movement Stroke of Right Bracket	25 mm
Forward-Backward Movement Stroke of Right Bracket	30 mm
Left-Right Movement Stroke of Left Bracket	40 mm
Power Supply	1-phase, AC 220V 3A

Tag:

Contact Person: Ms. Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
