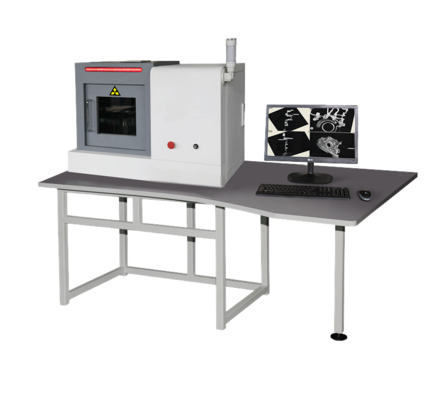

AL 9865 Table model CT（μCT）device CT lab test machine CT composite device

AL 9865 Table model CT(μCT)device CT lab test machine
Description:

This system, based on computerized tomography technology, can generate three-dimensional volume data and perform 2D and 3D inspections. It features automatic defect detection, non-destructive measurement, material analysis, reverse engineering and other functions. This system is ideal for the detection of metals, ceramics, cores, complex castings, plastic parts, auto parts, jewelry, new materials and semiconductors, etc.

Main functions

Multiple detection methods such as cone-beam CT scanning and DR Real-time imaging are adopted. Depending on the size of the inspected workpiece, a single scan can obtain tomographic images ranging from dozens to thousands of layers.

X-ray source, suitable for the inspection of small objects.

It can be placed on the desktop and takes up little space.

 Imaging methods: 2D and 3D.

It has the functions of defect and pore analysis as well as the designated area for the inspected workpiece.

Mark the volume and location dimensions of the detected defects with different colors.

Analyze the defect size and make statistics, calculate the total percentage of pores, and generate a histogram of pore volume.

Analyze wall thickness: Mark the analysis results with different colors.Measuring tools: Measure parameters such as the position, distance, radius, and Angle of the workpiece.Reverse engineering: Comparison between CAD design and physical objects.Segmentation tool: In the dataset, segmentation is carried out based on materials and geometric structures.

It can achieve precise measurement of the internal dimensions of the inspected workpiece.

Fiber composite material analysis function

Design comparison function with physical objects

Main parameters

Tube voltage: 20kV to 90kV

Focus size: 5μm

Density resolution: 0.3% to 0.5%

Scanning method: Cone-beam scanning

Application field

3D Printing technology

Geological research

Teaching Experiment

 Machinery

Biological experiments

Military industry

Electronic devices

Catalysts

Automotive components

Resin

Aerospace

 Molecular sieves

Casting

New materials

Model processing

Gemstone identification

Medical Engineering

Archaeology
