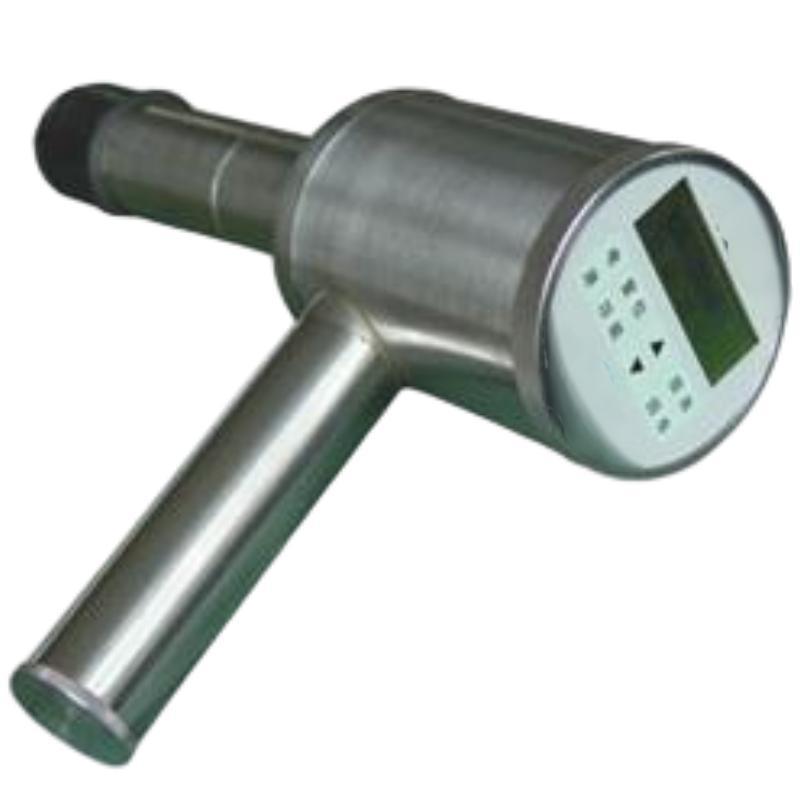

DM5200 Intelligent χ-γ Radiation Meter Smart X Radiation Meter

DM5200 Intelligent χ-γ Radiation Meter Smart X Radiation Meter
DM5200 Intelligent χ-γ Radiation Meter Smart X Radiation Meter

Large Image :  DM5200 Intelligent χ-γ Radiation Meter Smart X Radiation Meter

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: DM5200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200
Contact Now

DM5200 Intelligent χ-γ Radiation Meter Smart X Radiation Meter

Description
Dimension: 330mm × 230mm × 90mm Power Requirements: Two 1.5V Size D Batteries
Weight: 1.5kg Warranty: 1 Year
Certification: Includes Calibration Certification

DM5200 Intelligent χ-γ Radiation Meter Smart X Radiation Meter
Description:

Instrument Usage

The DM5200 radiation meter is a type of χ-γ radiation dose rate measuring instrument used for environmental monitoring. It is widely applied in scenarios where the level of radioactive dose rate needs to be measured, such as in building materials, imported and exported goods, transported items, nuclear medicine, and isotope applications.

Main features

a. Use a highly sensitive NaI(TI) crystal as the detector

b.  Touch keyboard and Chinese prompts, making operation convenient

c.  Matrix-type liquid crystal display, with Chinese display, intuitive

d.  The measurement time and alarm threshold can be set as desired.

e. The measurement unit is the internationally standardized unit of µSv/h, and it can be set to µR/h.

f. Automatically monitor battery voltage and have a low voltage alarm function.

Technical Parameters

Parameter

Specification / Value

a. Measurement Range

0.01 µSv/h ~ 200 µSv/h

b. Energy Range & Response

0.048 MeV ~ 3.00 MeV; Response ≤ ±20% (normalized to ¹³⁷Cs γ)

c. Relative Intrinsic Error

≤ ±10%

d. Repeatability

Relative Standard Deviation (RSD) of a single measurement ≤ 5%

e. Measurement Precision

Single reading ≤ ±10% (at 95% confidence level, with 15s measurement time)

f. Alarm Thresholds

User-selectable: 0.25 µSv/h, 2.5 µSv/h, 10 µSv/h, 20 µSv/h

g. Measurement Time

Selectable: 1s, 3s, 5s, ... 29s

h. Operating Environment

Temperature: -10°C ~ 40°C; Relative Humidity: ≤95%

i. Power Supply

Two 1.5V Size D batteries

j. Power Consumption

≤150 mW

k. Dimensions & Weight

330mm × 230mm × 90mm; Weight: 1.5kg
