CNGTX 501 Intelligent Spinning Drop Interfacial Tensiometer IFT Liquid Tension Analyzer SDT Rotating Interfacial Tension Tester

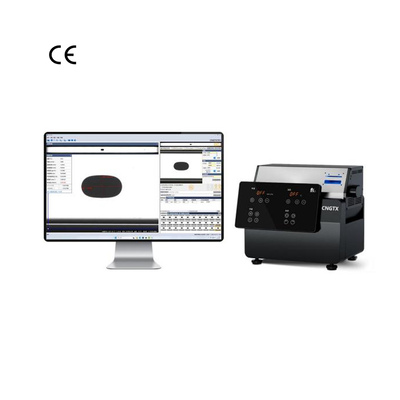

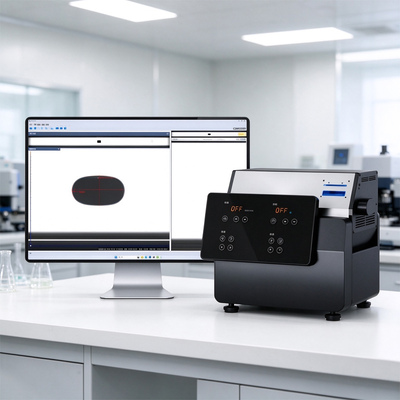

Large Image : CNGTX 501 Intelligent Spinning Drop Interfacial Tensiometer IFT Liquid Tension Analyzer SDT Rotating Interfacial Tension Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

CNGTX 501 Intelligent Spinning Drop Interfacial Tensiometer IFT Liquid Tension Analyzer SDT Rotating Interfacial Tension Tester

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±0.2%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM, Software Reengineering	Power:	/
Protection Class:	Ip56	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	Spinning Drop Interfacial Tensiometer , Rotating Interfacial Tension Tester , Intelligent Liquid Tension Analyzer

PRODUCT HIGHLIGHTS

AI-Driven Measurement: Incorporates artificial intelligence for precise interfacial tension analysis.
Ultra-Low Range Detection: Measures interfacial tension from 10^-6 to 100 mN/m with 10^-6 mN/m accuracy.
Real-Time Data Sync: Synchronizes instrument host and software data in real-time.
Automated Reporting: Auto-generates tension curves and exports to Word or Excel.
Remote Control Support: Compatible with Windows, iOS, and Android for remote operation.

CNGTX 501 Intelligent Spinning Drop Interfacial Tensiometer IFT Liquid Tension Analyzer SDT Rotating Interfacial Tension Tester

Product Introduction Building upon the TX-500C spinning-drop interfacial tensiometer, Dongguan Lonroy Equipment Co., Ltd. has developed the CNGTX intelligent spinning-drop interfacial tensiometer by incorporating artificial intelligence technology. This instrument is designed for research and production applications within the field of interfacial science.

CNGTX 501 Intelligent Spinning Drop Interfacial Tensiometer IFT Liquid Tension Analyzer SDT Rotating Interfacial Tension Tester

Technical Specifications

Measurement Parameters
Interfacial Tension Measurement Range	10-6 ~ 100 mN/m
Interfacial Tension Measurement Accuracy	10-6 mN/m
Interfacial Tension Measurement Method	AI measurement
Rotational Speed Control Parameters
Rotational Speed Control Range	1000 ~ 10000 rpm
Rotational Speed Control Accuracy	± 1‰
Rotational Speed Control Mode	Stepless speed regulation
Motor Type	Brushless DC motor
Stable Centrifugal Field Essential Parameters
Rotating-shaft Coaxiality Tolerance	2 μm
Instrument Noise	< 55dB (Ambient temperature +5℃, at 5000rpm)
Measuring Tube Vibration	< 0.05mm/s (at 5000rpm)
Temperature Control
Temperature Control Range	Ambient temperature +5℃ ~ 100℃ (no external temperature-control device required)
Temperature Display Resolution	±0.1 ℃
Temperature Control Accuracy	±1 ℃
Measurement Stage Control Parameters
Stage Angle Adjustment Range	±20°
Stage Angle Control Accuracy	±0.05°
Stage Level Control Mode	Manual control
Measuring Tube Parameters
Measuring Tube Inner Diameter	2mm, 4mm
Measuring Tube Sealing Method	Threaded drain sealing; one-piece quick-connect end cap
Measuring Tube End-cap Connection	One-piece quick-connect
Imaging Functions
Local Observation Length Range	0-4.4 mm (within measurement window)
Local Imaging Resolution	768 × 576
Image Sensor Type	CMOS
Video Frame Rate	30 fps
Local Imaging Functions	Video recording & editing
Auxiliary Measurement Functions
Auxiliary Measurement	AI-assisted interfacial tension measurement
Programmable Measurement	Custom combined sequences of speed, temperature and measurement cycles
Data Synchronization	Real-time data sync between instrument host and software
Quick-access Image Windows	30 sets
Tension Curve	Auto-generate tension data curves
Data Saving	Auto-save tension results and spinning drop images
Historical Data	Review and edit historical tension measurement data
Report Export	Microsoft Word experiment report; Microsoft Excel measurement data export
Other Parameters
Supported Operating System	Windows 10, Windows 11
Software Language	English, Chinese
Remote Control	Support Windows, iOS, Android
Communication Interface	USB 3.0 ×1
Overall Dimension	L×W×H 421mm×295mm×345mm
Net Weight	20kg (excluding accessories)
Power Input	100~240V, 50/60Hz
Power Consumption	Rated 150W, Peak 210W
