Microcomputer Controlled Rotary Bending Fatigue Tester for Light Alloy Wheel Motorcycle Wheels Durability Testing Machine

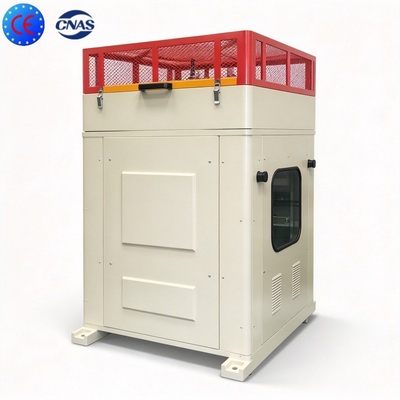

Large Image : Microcomputer Controlled Rotary Bending Fatigue Tester for Light Alloy Wheel Motorcycle Wheels Durability Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Microcomputer Controlled Rotary Bending Fatigue Tester for Light Alloy Wheel Motorcycle Wheels Durability Testing Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Lab Testing, Laboratory Testing
Customized Support:	OEM, ODM, OBM	Power:	/
Protection Class:	/	Voltage:	Other
Warranty:	1 Year

PRODUCT HIGHLIGHTS

Designed for rotary bending fatigue test of motorcycle and moped light alloy wheels
Max test bending moment reaches 1000 N·m for reliable fatigue evaluation
Adjustable base arm length: 670 ± 0.25 mm to fit different test demands
Wide test rotational speed range from 100 r/min to 600 r/min
Compatible with wheel diameters between 125 mm and 590 mm
Total motor power within 5 kW for stable and energy-saving operation
Vertical welded main frame for easy and fast wheel specimen mounting
VFD motor adopted to realize smooth stepless speed regulation
Stepper motor plus worm gear structure for stable bending moment loading
Industrial computer with signal amplification and A/D conversion card
Windows-based control software supports dynamic real-time data display
Supports automatic data storage and editable test report output
Shows real-time test speed and cumulative fatigue cycles clearly
Independent high-power control cabinet for safe and centralized operation

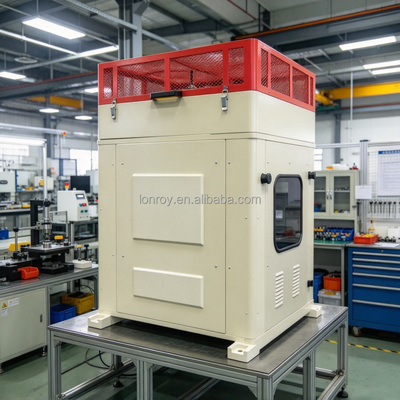

Microcomputer Controlled Rotary Bending Fatigue Tester for Light Alloy Wheel Motorcycle Wheels Durability Testing Machine

PRODUCT INTRUDUCTION

Main Application: This testing machine is primarily used for rotary bending fatigue testing of light-alloy wheels for motorcycles and mopeds. Reference Standards: GB/T 38183—2019: Disc-type wheels for motorcycles and mopeds QC/T 211-1996: Test methods for light-alloy wheels of motorcycles and mopeds GB/T 6147-92: Technical requirements for test packaging, package marking, storage, and transportation Functional Features: The testing machine consists mainly of the main unit, parameter measurement and display unit, high-power control unit, and testing fixtures. The main unit features a vertical welded structure designed for convenient specimen installation. A variable-frequency drive (VFD) motor provides the rotational power, driving the rotating disc to achieve stepless speed regulation. A loading mechanism utilizing a stepper motor and a worm gear assembly applies the bending moment to the rotating main spindle. A high-power control cabinet is included to manage motor drive and control. The microcomputer control unit features an industrial control computer equipped with an integrated signal amplification and A/D conversion card to handle sensor signal amplification and analog-to-digital conversion. The software runs on the Windows platform and supports functions such as dynamic display, data storage, and test report output.

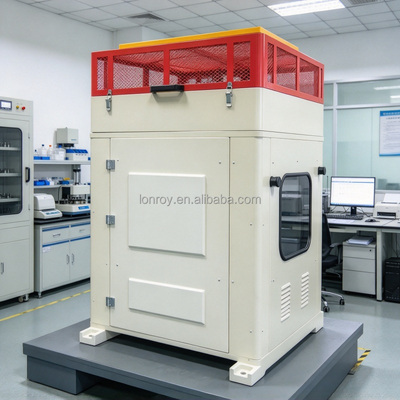

Microcomputer Controlled Rotary Bending Fatigue Tester for Light Alloy Wheel Motorcycle Wheels Durability Testing Machine

Technical Specifications

No.	Technical Parameter	Specification
1	Test bending moment	1000 N·m
2	Base arm length	670 ± 0.25 mm (adjustable, provided test requirements are met)
3	Test rotational speed range	100–600 r/min
4	Test wheel diameter	125–590 mm
5	Total motor power	≤ 5 kW
6	Function	Display of test speed and cumulative test cycles

No.	Item Name	Quantity	Remarks
1	Welded main unit frame	1 unit	In-house manufactured
2	Variable-speed motor	1 unit
3	Variable-speed motor control system	1 unit
4	Loading lever arm	1 piece
5	Loading mechanism	1 set
6	High-precision displacement sensor	1 unit
7	Electrical control cabinet & power section (vertical)	1 unit	Self-manufactured
8	Computer (commercial model)	1 unit
9	Printer (HP A4 printer)	1 unit
10	Testing software	1 set	Self-developed
11	Fixtures	1 set	Self-manufactured
