360ﾰ Rotation Planetary Ball Mill Colloidal Pulverizer Nano Grinding Machine Omnidirectional Grinder Refine Pulverization Device

Large Image : 360ﾰ Rotation Planetary Ball Mill Colloidal Pulverizer Nano Grinding Machine Omnidirectional Grinder Refine Pulverization Device

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

360ﾰ Rotation Planetary Ball Mill Colloidal Pulverizer Nano Grinding Machine Omnidirectional Grinder Refine Pulverization Device

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±0.2%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM, Software Reengineering	Power:	/
Protection Class:	Ip56	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	360° rotation planetary ball mill , colloidal pulverizer nano grinding machine , omnidirectional lab grinding pulverizer

PRODUCT HIGHLIGHTS

360° Omnidirectional Nanoscale Planetary Ball Mill
Non-destructive size reduction down to the sub-micron range
Wet milling capability for achieving nanoparticle-scale particle sizes (<100 nm)
Variable speed from 10 to 900 rpm; 1:2 speed ratio; belt-driven mechanism
Batch processing: accommodates up to 4 samples (30/60 ml each) simultaneously
360° rotation effectively minimizes material settling, ensuring more uniform grinding
Storage capacity for 3 operating modes and 15 customized protocols
Power-loss protection with memory function and automatic restart
Supports dry, wet, vacuum, and inert-atmosphere (protective gas) milling
Safety features include automatic stop upon lid opening and a self-locking, anti-loosening jar-clamping design
Equipped with both rollers and swivel casters: rollers facilitate effortless transport, while swivel casters ensure stability during operation

360° Rotation Planetary Ball Mill Colloidal Pulverizer Nano Grinding Machine Omnidirectional Grinder Refine Pulverization Device

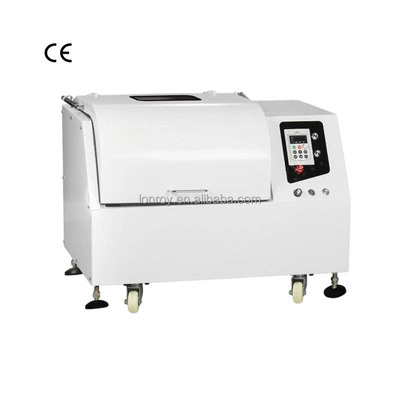

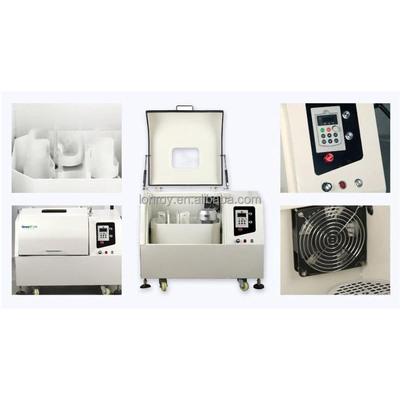

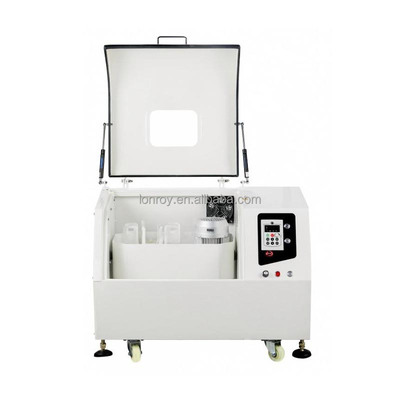

Product Introduction The LR-Z274 omnidirectional planetary ball mill (for laboratory use) is a powerful, stable, and highly efficient laboratory grinding instrument. Unlike vertical planetary ball mills, this system allows the main planetary disk to perform continuous 360°rotation—or operate at any chosen angle—while the grinding jars are in motion. This ensures that the sample material inside the jars is thoroughly involved in the grinding and mixing process, effectively minimizing the settling of material at the bottom of the jars. It is suitable for both wet and dry grinding and pulverization of hard, medium-hard, brittle, and fibrous materials, capable of achieving a final particle size of less than 0.1 μm (colloidal range). It is also highly effective for grinding solids in suspensions, mixing and homogenizing samples, and performing tasks such as metal alloying. The system offers comprehensive functionality and high efficiency, with a design that significantly reduces material settling. It features four grinding stations, allowing for the simultaneous processing of four different samples. The exceptionally high centrifugal force generated by the omnidirectional planetary ball mill results in intense grinding energy; combined with the 360° rotation, this ensures shorter processing times and a more uniform output. It is ideal for industries and applications where quality control processes demand high standards for purity, speed, fineness, and reproducibility. This series of mills can be equipped with vacuum grinding jars, enabling samples to be processed under vacuum conditions. It is perfectly suited for research institutions, universities, and corporate laboratories—whether for advanced research tasks, such as the production of nano-scale particles, or for routine laboratory operations like the mixing and homogenization of soft, hard, brittle, or fibrous materials.

360° Rotation Planetary Ball Mill Colloidal Pulverizer Nano Grinding Machine Omnidirectional Grinder Refine Pulverization Device

Technical Specification

Application	Crushing, mixing, homogenizing, colloid milling, mechanical alloying, mechanochemistry
Application Fields	New energy, geology/metallurgy, glass/ceramic/engineering/electronics, building materials, environment/recycling, agriculture, chemistry, pharmaceuticals, biology
Sample Characteristics	Soft, hard, brittle, fibrous - dry or wet
Grinding Principle	Impact force, friction force
Max Feed Size	< 5 mm, soil < 10 mm
Final Fineness	For colloid grinding, output < 0.1 micron
Number of Grinding Stations	4
Grinding Mode	Dry, wet, vacuum, protective-atmosphere grinding
Grinding Jar Material	Stainless steel, hard alloy, zirconia, alumina, silicon carbide, silicon nitride, polyurethane, nylon, PTFE, agate
Rotational Speed Ratio Setting	1:2
Operating Modes	3 types: unidirectional, alternating forward/reverse, multi-stage
Storable Programs	15
Time Setting	Run/pause time: 0-9999 min
Power Failure Protection	Memory and auto-restart upon power recovery
Grinding Jar Volume	50-100 ml
Vacuum Jar Volume	50 ml
Revolution Speed	5-450 r/min
Rotation Speed	10-900 r/min
Power	0.55 KW
Power Supply	Single-phase, 220V/50Hz
Machine Dimensions (W x D x H)	890 x 560 x 680 mm
Weight	130 kg
