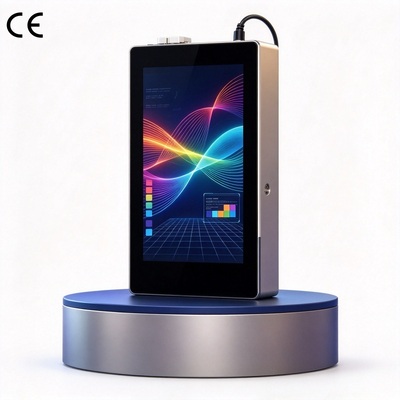

Retinal Blue Light Hazard Tester CRI Test Machine Color Rendering Index Test System Blue Light Hazard Irradiance Analyzer

Large Image : Retinal Blue Light Hazard Tester CRI Test Machine Color Rendering Index Test System Blue Light Hazard Irradiance Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Retinal Blue Light Hazard Tester CRI Test Machine Color Rendering Index Test System Blue Light Hazard Irradiance Analyzer

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Lab Testing, Laboratory Testing
Customized Support:	OEM, ODM, OBM	Power:	/
Protection Class:	/	Voltage:	Other
Warranty:	1 Year

PRODUCT HIGHLIGHTS

Integrates spectrum, illuminance, CCT, CRI, blue light hazard and multiple photometric measurement functions
Covers 380–780nm visible wavelength range for testing various narrow-band and broad-spectrum LED light sources
Complies with EN 62741 and GB/T 20145-2006 standards for reliable blue light hazard assessment
Adopts long focal crossed asymmetric CT spectroscopic system for stable and precise spectral analysis
Features high spectral resolution of 0.2nm and wavelength accuracy up to ±0.5nm
Equipped with 5-inch HD IPS display to show real-time measurement data and spectral curves
Supports single and continuous measurement modes with auto and manual exposure control
Class 1 illuminance accuracy of ±4%, CRI accuracy reaches ±1.5% for trustworthy test results
Built with 3648-pixel CCD sensor and 16-bit high AD resolution for sensitive signal capture
Wide CCT testing range from 1000K to 100000K, illuminance range 5–200000 lx
Multi-language interface including Simplified Chinese, Traditional Chinese and English
Comes with 8GB SD card storage and USB2.0 data export for convenient report output
Compact portable size, lightweight design suitable for laboratory and on-site lighting inspection
Widely applicable for eye-care lamps, classroom lighting, blue-light-blocking glasses and phototherapy lights
Outputs test data in table and image formats to facilitate lighting quality verification and documentation

Retinal Blue Light Hazard Tester CRI Test Machine Color Rendering Index Test System Blue Light Hazard Irradiance Analyzer

PRODUCT INTRUDUCTION

Introduction Integrates measurement functions for spectrum, illuminance, color temperature, color rendering index (CRI), blue light hazard irradiance, R9, wavelength, irradiance, color coordinates, color tolerance, and more. Features a large 5-inch screen for real-time display of measurement parameters and curves, ensuring ease of use and efficiency. Capable of measuring various light sources (such as LEDs with broad or narrow spectra) and products like blue-light-blocking glasses, red/blue light therapy devices, dental curing lights, full-spectrum eye-care desk lamps, and classroom lighting fixtures; it measures parameters including irradiance, spectrum, and wavelength, and assesses blue light hazard weighted irradiance in compliance with EN 62741 and GB/T 20145-2006 standards.

Retinal Blue Light Hazard Tester CRI Test Machine Color Rendering Index Test System Blue Light Hazard Irradiance Analyzer

Measurable parameters Wavelength range: 380–780 nm

Parameter
Correlated Color Temperature CCT (K)	Irradiance (mW/cm²)	CIE1931 Chromaticity Diagram
Dark Signal	Black Body Deviation Duv	CIE1960 Chromaticity Diagram
TLCI-2012	R1-R15	CIE1976 Chromaticity Diagram
Coordinate x, y	Red Ratio (%)	Chromatic Tolerance Ellipse Graph
Coordinate u, v	Green Ratio (%)	Color Rendering Index Graph
Coordinate u', v'	Photopic / Scotopic Vision Ratio S/P	Integration Time (ms)
Half Bandwidth (nm)	CIE1931 X, Y, Z	Permissible Irradiation Time (s)
Central Wavelength (nm)	Blue Ratio (%)	Spectral Power Distribution
Illuminance (lx)	Color Rendering Index CRI (Ra)	Total Bilirubin Irradiance (mW/cm²)
Foot-candle (fc)	Color Tolerance SDCM	Average Optical Power (mW/lm)
Centroid Wavelength (nm)	Color Purity (%)	Blue Light Radiance Ratio (mW/cm²/nm)
Peak Wavelength (nm)	Dominant Wavelength (nm)	Blue Light Hazard Irradiance (mW/cm²)
Hazard Level

Parameter	Specification
Spectroscopic Platform	Long Focal Crossed Asymmetric CT Spectroscopic System
Optical Bandwidth	2nm (FWHM)
Spectral Resolution	0.2nm
Sensor	CCD, 3648 dots
Integration Time	10us–10s
Display Screen	5' HD IPS LCD
Resolution	480×854
Measurement Mode	Single / Continuous
Exposure Mode	Auto / Manual
Display Mode	6 optional parameters
Display Mode	Spectral Distribution Curve
Output Format	Table, Image
Probe Window	Φ10mm
Illuminance Measurement Range	5–200000 lx
CCT Measurement Range	1000–100000K
x,y Accuracy	±0.001
x,y Repeatability	±0.0005
Illuminance Accuracy	±4% (Class 1)
CRI Accuracy	±1.5%
Wavelength Accuracy	±0.5nm
Wavelength Interval	1nm
AD Resolution	16bits, 250kSPS
Language	Simplified Chinese / Traditional Chinese / English
File Storage	8GB SD Card
Data Output Interface	SD Card/USB2.0
Dimension (L × W × H)	138×81×23mm
