ASTMF2476 DIN53380 Carbon Dioxide Transmission Rate Test Machine Isostatic Infrared CO2 Barrier Tester for Packaging Material

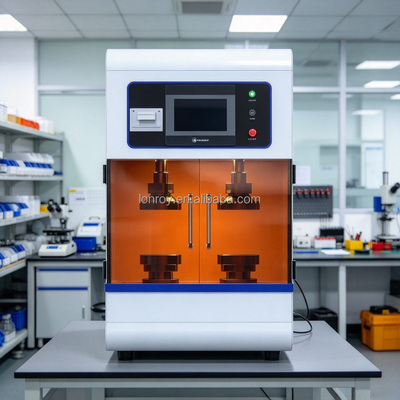

Large Image : ASTMF2476 DIN53380 Carbon Dioxide Transmission Rate Test Machine Isostatic Infrared CO2 Barrier Tester for Packaging Material

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTMF2476 DIN53380 Carbon Dioxide Transmission Rate Test Machine Isostatic Infrared CO2 Barrier Tester for Packaging Material

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Lab Testing, Laboratory Testing
Customized Support:	OEM, ODM, OBM	Power:	/
Protection Class:	/	Voltage:	Other
Warranty:	1 Year

PRODUCT HIGHLIGHTS

Professional instrument for testing carbon dioxide barrier performance of packaging materials
Adopts isobaric infrared method, complies with ASTM F2476 and DIN 53380-4 standards
Dual independent horizontal test cavities, supports simultaneous testing of two film samples
Equipped with high-precision infrared CO₂ sensor with pressure adjustment structure
Ultra-low resolution up to 0.0001 cc/m²/day with excellent test repeatability
Supports both film specimen and finished package CO₂ permeation testing
Combined PLC and Windows control system with 12-inch color touch screen
Full touch operation, test programs can be saved, recalled and modified freely
Built-in intelligent automatic test method matching for unknown samples
Pneumatic clamping design, no extra auxiliary air compressor needed
Comes with nitrogen circulation purging function to effectively reduce test errors
Precise temperature control from 10℃ to 40℃ with ±0.2℃ high accuracy
Supports built-in two-point temperature calibration, no external water bath required
Real-time automatic control of temperature, pressure and flow parameters
Supports WIFI printer connection for convenient test report output

ASTMF2476 DIN53380 Carbon Dioxide Transmission Rate Test Machine Isostatic Infrared CO2 Barrier Tester for Packaging Material

PRODUCT INTRUDUCTION

Product Introduction Introduction: The carbon dioxide transmission rate tester is a specialized instrument designed to measure the CO2 barrier properties of packaging materials; it serves as a core tool for quality control in applications such as modified atmosphere packaging and gas-flushed packaging. Reference Standards: Complies with standards for measuring carbon dioxide transmission rates using the equal-pressure infrared method (e.g., ASTM F-2476, DIN 53380-4); this is not a differential-pressure method instrument.

ASTMF2476 DIN53380 Carbon Dioxide Transmission Rate Test Machine Isostatic Infrared CO2 Barrier Tester for Packaging Material

Technical Specifications

Parameter Item	Specification
Control System	PLC control system + Windows system
Operation Interface	12-inch color touch screen, embedded industrial computer
Operation Mode	Full touch control; test programs can be set, recalled and modified
Printer	WIFI connection
CO₂ Permeation Test Range	0.5~8000 cc/m²/day (for films and sheets, test area 50 cm²), 0.0025~40 cc/pkg/day
Sensor	Infrared CO₂ sensor with pressure adjustment structure
Resolution	0.0001 cc/m²/day
Repeatability	0.25 cc/m²/day or 2%
Test Chamber	2 independent horizontal test cavities, capable of testing two groups of film samples; compatible with external cabin

Parameter Item	Specification
Chamber Sealing	Fully automatic dual horizontal test chambers. Pneumatic clamping for test cells without auxiliary air compressor. Equipped with nitrogen circulation purging function to reduce errors. Nitrogen circulation function is also required for package testing.
Temperature Control Range	10~40℃; Accuracy: ±0.2℃
Temperature Calibration Function	Built-in two-point temperature calibration program, no external water bath required
Relative Humidity Control Range	0% (RH)
Parameter Control	Parameters including temperature, pressure and flow rate are automatically adjusted by computer to user-defined values and controlled in real time.
Test Method	Adopt pressure-modulated infrared sensor, conduct high-precision CO₂ permeability test by isobaric method.
Power Supply Voltage	AC220V 50Hz
Intelligent Automatic Method Selection	Equipped with intelligent automatic method selection function. For unknown samples, only input temperature, and the instrument will automatically search for the test method and start testing.
