ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device

ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device

Large Image :  ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device

Description
Type: Testing Machine Accuracy Class: High Accuracy
Accuracy: ±0.2% Application: Auto Testing, Laboratory Testing, Lab Testing
Customized Support: OEM, ODM, OBM, Software Reengineering Power: /
Protection Class: Ip56 Voltage: 220 V, Other
Warranty: 1 Year

PRODUCT HIGHLIGHTS
  • Compliance with ASTM D5191: Designed and manufactured in strict accordance with ASTM D5191 and SH/T 0794 standards.
  • Ultra-Low Sample Volume: Requires only 3 mL of oil sample for each test, saving valuable materials.
  • Fast Test Cycle: Completes an average test in 3 to 8 minutes, ensuring high laboratory efficiency.
  • LIMS System Integration: Capable of connecting directly to laboratory LIMS systems for data management.
  • Automated Vacuum Pump: Vacuum pump starts automatically without requiring manual intervention.
  • Touchscreen Interface: Features an embedded computer with touchscreen control for easy operation.
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device

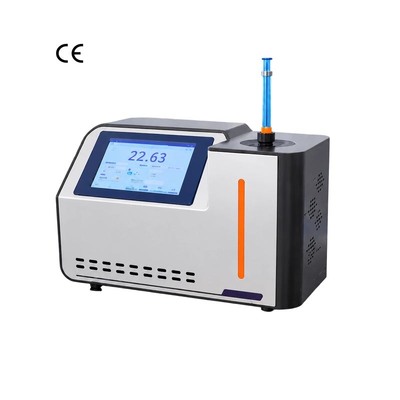

Product introduction The LR-112 micro-vapor pressure tester is designed and manufactured in accordance with the standards of SH/T 0794 and ASTM D5191. It is suitable for measuring the vapor pressure of gasoline, solvent oil, light crude oil and similar petroleum products with a boiling point above 0℃, and a vapor pressure of 7KPa to 130KPa at 37.8℃ and an air-liquid ratio of 4:1. Executive standard Applicable standards: SH/T 0794, ASTM D5191 Instrument features 1. Embedded computer, with a full Chinese interface and touchscreen control; 2. Automatically provides results of the Redfield saturated vapor pressure; 3. Efficient and fast database function, allowing easy access and use of saved test results; 4. Only 3 mL of oil sample is required for each test; 5. Each test takes only about 7 minutes; 6. The instrument can be connected to the laboratory LIMS system; 7. The vacuum pump automatically starts without the need for manual control; 8. Key components are selected from internationally renowned brands, ensuring the performance and reliability of the instrument.
PRODUCT PARAMETERS
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device
Technical Specification
Total power
400W
Operating temperature range
10 - 30℃ , humidity ≤ 85%
Operating power supply
AC 220V ± 10%, 50Hz
Pressure measurement range
7kPa - 130kPa (resolution: 0. 1kPa)
Average test time
3 - 8 minutes
Sample volume
3mL
Temperature control accuracy
±0.1 ℃ from 37.8℃
Injection septum
Diameter 10mm, thickness 3mm
Vacuum pump
Achieve a vacuum degree of 1Pa
Overall size
420mm × 220mm × 325mm
Overall weight
11kg
PRODUCT IMAGES
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device
COMPETITIVE ADVANTAGES
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device
COMPANY OVERVIEW
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device
CERTIFICATION & EXHIBITION
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device
PACKAGING & DELIVERY
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device
FAQ
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device
ASTM D5191 Micro Vapor Pressure Tester Oils Petroleum RVP Measuring Machine Fuel Volatility Analyzer Gasoline DVPE Test Device
