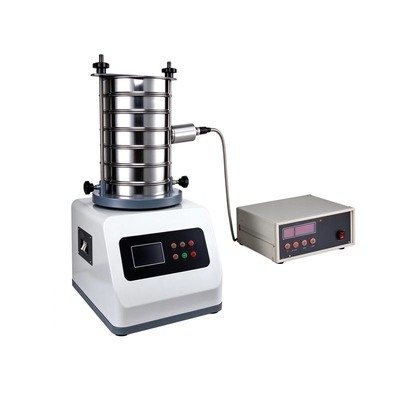

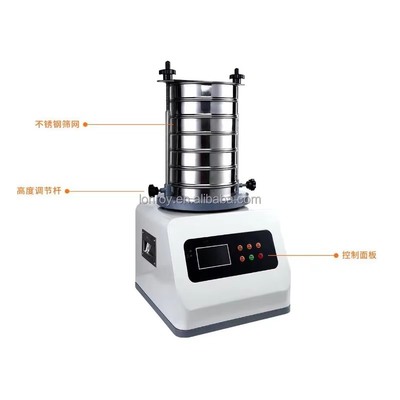

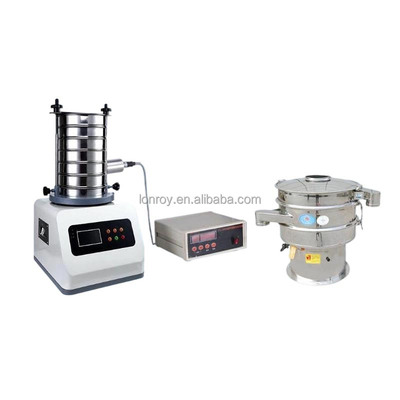

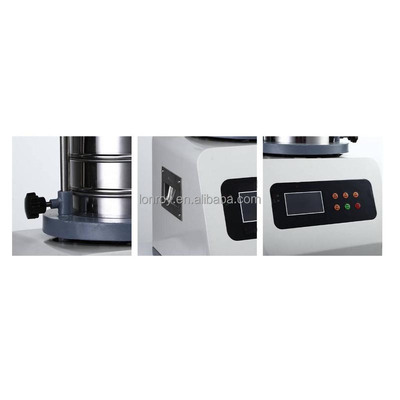

Ultrasonic Vibrating Sieve Shaker Laboratory Sieving Generator Automatic Sieve Separator Screen Sifter Powder Screening Machine

Large Image : Ultrasonic Vibrating Sieve Shaker Laboratory Sieving Generator Automatic Sieve Separator Screen Sifter Powder Screening Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Ultrasonic Vibrating Sieve Shaker Laboratory Sieving Generator Automatic Sieve Separator Screen Sifter Powder Screening Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±0.2%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM, Software Reengineering	Power:	/
Protection Class:	Ip56	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	Ultrasonic Vibrating Sieve Shaker , Automatic Powder Screening Machine , Laboratory Sieve Separator Sifter

PRODUCT HIGHLIGHTS

Multi-layer Separation: Accommodates up to 8 sieves to separate materials into 2-7 distinct particle-size fractions simultaneously.
Optional Ultrasonic System: Available for processing ultra-fine powders to enhance separation efficiency.
Compact and Portable: Small footprint design with lightweight construction for easy benchtop operation and movement.
Versatile Material Handling: Capable of sieving both powders and liquids with high efficiency.
Precise Particle Sizing: Sieving range from 0.025 to 3 mm with mesh selection from 5 to 1000 mesh.
Low Noise Operation: Operates at less than 50 dB for a quiet laboratory environment.
Automatic Timer Control: Equipped with a timer for automatic shutdown to ensure experimental reproducibility.
Durable Screen Materials: Screens available in stainless steel or nylon to prevent sample contamination.

Ultrasonic Vibrating Sieve Shaker Laboratory Sieving Generator Automatic Sieve Separator Screen Sifter Powder Screening Machine

Introduction to Screening Machines Standard vibrating screening machines utilize a vibrating motor as their source of vibration. The vibrations from this motor cause the base of the machine to oscillate; this motion is then transmitted to the standard test sieves mounted on the base. As a result, material particles smaller than the mesh openings of a given sieve pass through to the layer below. Through this multi-layered screening process, each sieve retains only particles of a specific size. This enables the separation of materials by particle size, the determination of their particle-size distribution, and the effective screening, classification, and filtration of the materials within the test sieves. Applications Widely used in fields such as agricultural research, mining, construction, chemical engineering, pharmaceuticals, and food processing. To prevent sample contamination, nylon mesh screens can be selected for the sieving process. Product Features 1.High efficiency; features a compact, durable design capable of sieving both powders and liquids. 2.Small footprint; space-saving and easy to move. 3.Can accommodate up to eight test sieves (including the bottom pan), allowing for the precise separation of granular materials into 2–7 distinct particle-size fractions simultaneously. 4.Equipped with a timer for automatic shutdown. 5.Ensures experimental reproducibility. 6.Comprehensive functionality with simplified operation. 7.Low noise level and lightweight. 8.Designed for benchtop operation; no fixed installation required. 9.Optional ultrasonic system available for processing ultra-fine powders. 10.Screens are available in stainless steel or nylon.

Ultrasonic Vibrating Sieve Shaker Laboratory Sieving Generator Automatic Sieve Separator Screen Sifter Powder Screening Machine

Technical Specification

Name	Laboratory Vibrating Sieve Shaker
Model	LR-Z277-A
Sieve Mesh Diameter	200 mm
Number of Sieve Layers	6 layers
Sieving Particle Size	0.025 – 3 mm
Sieve Mesh Material	Nylon / Metal
Sieve Selection Range	5 – 1000 mesh
Power Supply	220 / 50 (V / Hz)
Power	0.125 kW
Noise	< 50 dB
Vibration Frequency	1420 cycles/min
Product Dimensions (cm)	Sieve 6 cm/layer; Body 354 × 395 × 370
Name	Ultrasonic Sieving Generator
Model	LR-Z277-B
Power Input	AC 120 V ± 10%, 50 – 60 Hz
Total Machine Current	≤ 0.6 A
High-Frequency Current	≤ 0.5 A
Working Frequency	38 kHz
Working Mode	Continuous, Pulse
Ambient Temperature	-10 to 40 °C
