Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1,000
Contact Now

Peg Bead Mill Wet Dispersing Machine Wet Grinding Unit Slurry Refining Instrument Paint Grinder Ink Milling Equipment

Description
Output (kg/h): / Application: Other
Type: Peg Bead Mill Voltage: 220 V, 380 V
Weight (kg): 40 Warranty: 1 Year

PRODUCT HIGHLIGHTS
  • High-performance laboratory horizontal pin bead mill for continuous wet grinding and dispersion
  • Adopts zirconia ceramic grinding chamber lining to effectively avoid material contamination
  • Built-in self-circulation system, no external feed pump required and easy to clean
  • Comes with enlarged cooling surface and double-layer cooling jacket for outstanding heat dissipation
  • Uses imported high-purity zirconia grinding beads with optional bead sizes from 1.0 mm to 2.2 mm
  • Variable frequency stepless speed regulation to match different grinding and fineness requirements
  • Suitable for materials with viscosity up to 6000 cP, covering a wide viscosity range
  • CNC integrated separation plate with anti-clogging property and long service life
  • Double-end mechanical seal design for stable operation and zero leakage
  • Main grinding parts made of zirconia ceramic for superior wear resistance
  • Compact lab-scale structure, simple operation, ideal for formula research and sample testing
  • Available with multiple grinding chamber volumes: 0.5L, 1L and 2L for flexible selection
  • Supports customizations including explosion-proof type and SS316L stainless steel version
  • Widely applicable for coatings, inks, pigments, cosmetics, agrochemicals and pharmaceutical slurries
  • Widely applicable for coatings, inks, pigments, cosmetics, agrochemicals and pharmaceutical slurries
Peg Bead Mill Wet Dispersing Machine Wet Grinding Unit Slurry Refining Instrument Paint Grinder Ink Milling Equipment
PRODUCT INTRUDUCTION
Equipment Overview The laboratory-scale horizontal pin-type bead mill is a high-performance wet grinding unit. Operating continuously and utilizing imported ultra-fine pure zirconia beads, it offers high grinding efficiency, excellent fineness, broad applicability, and superior wear resistance. Key features include a zirconia-lined grinding chamber to minimize contamination; an enlarged cooling surface area for efficient heat dissipation; and a self-circulation system that eliminates the need for an external feed pump, thereby simplifying the cleaning process. It is widely used in industries such as coatings, inks, pigments, color pastes, cosmetics. Applications [Suitable Materials]: Materials requiring high fineness, such as coatings, pigments, cosmetics, interior latex paints, industrial paints, wood coatings, various color pastes, water-based and solvent-based inks. Machine Features Ease of Operation: Compact size, high efficiency, and user-friendly design suitable for laboratory testing; Wide Viscosity Range: Standard configuration handles viscosities up to 6,000 cP; Stable Performance: A standard laboratory model featuring a robust structure and high reliability; Self-Circulation System: Eliminates the need for an external feed pump and simplifies cleaning.


Peg Bead Mill Wet Dispersing Machine Wet Grinding Unit Slurry Refining Instrument Paint Grinder Ink Milling Equipment
PARAMETERS
Technical Specifications
No.
Technical Parameter
Technical Specification
1
Voltage
220V/380V, 50Hz (specific voltage selected based on customer requirements)
2
Speed Control
Variable frequency stepless speed regulation
3
Structure
Pin-type configuration
4
Materials
Core grinding components made of zirconia ceramic
5
Grinding Media
Pure zirconia beads (selectable sizes: 1.0–2.2 mm)
6
Grinding Chamber Volume
0.5 L – 2 L
Selection Table for Laboratory and Pilot-Scale Pin-Type Bead Mills
Model
Power (kW)
Rotating Speed (rpm)
Grinding Chamber Volume (L)
Grinding Media
Throughput
Power Supply Voltage
Dimensions (mm)
Equipment Weight (Kg)
LR-BX3000-B0.5
1.5
0–3000
0.5L
1.0–2.2mm
≥0.3L
220/380V
600*250*500
40
LR-BX3000-B1
1.5
0–3000
1
1.0–2.2mm
≥0.6L
220/380V
630*300*600
72
LR-BX3000-B2
4
0–1500
2
1.0–2.2mm
≥1.2L
220/380V
760*500*700
98

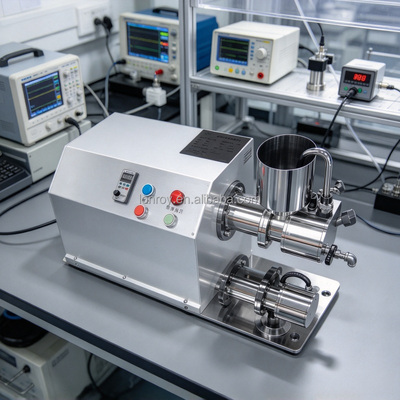

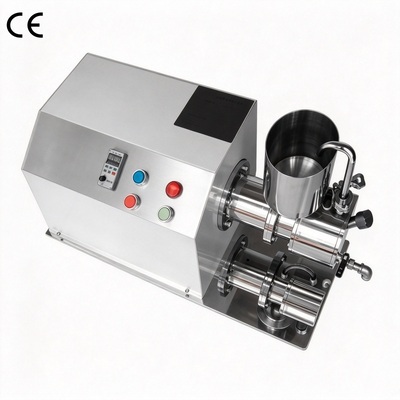

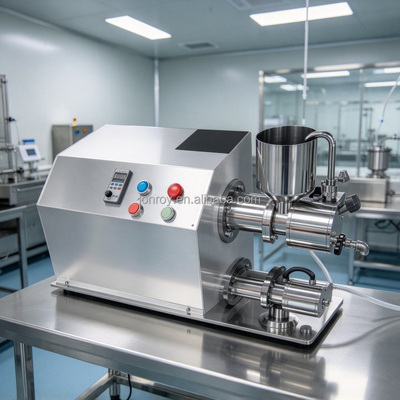

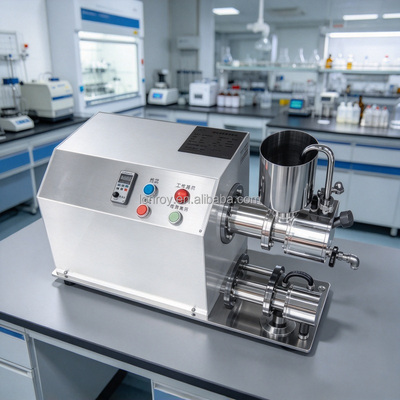

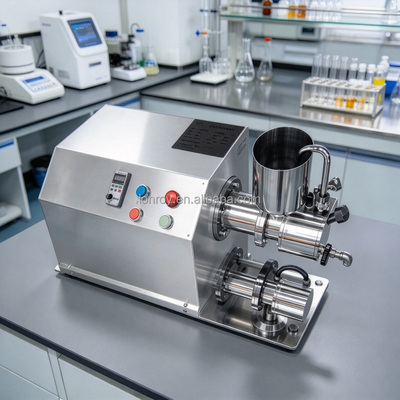

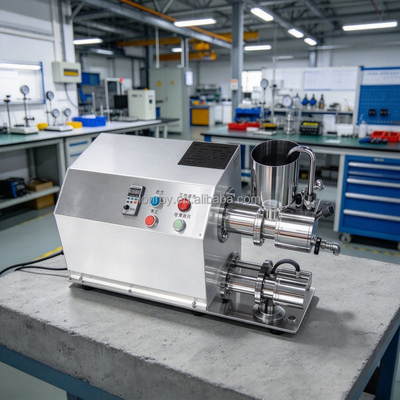

PRODUCT IMAGES
