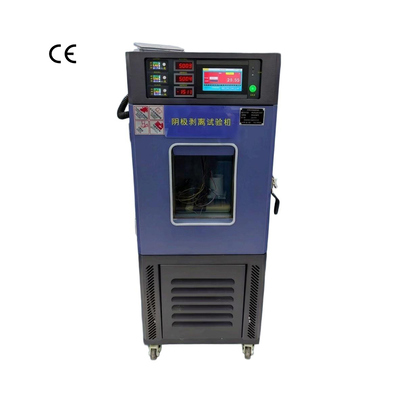

ISO 15711 ASTM G8 Cathodic Disbondment Rresistance Tester ISO 21809 DIN 30670 Pipe Anti-corrosion Coating Varnishes Test Machine

Large Image : ISO 15711 ASTM G8 Cathodic Disbondment Rresistance Tester ISO 21809 DIN 30670 Pipe Anti-corrosion Coating Varnishes Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 15711 ASTM G8 Cathodic Disbondment Rresistance Tester ISO 21809 DIN 30670 Pipe Anti-corrosion Coating Varnishes Test Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1.5%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, OBM, ODM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	Cathodic Disbondment Resistance Tester , Pipe Anti-corrosion Coating Test Machine , ISO 15711 ASTM G8 Lab Tester

PRODUCT HIGHLIGHTS

3-Channel Independent Power: Supports three parallel test groups simultaneously for high throughput.
Corrosion Resistant Tank: Inner tank made of 304 stainless steel for excellent resistance to electrolytes.
Multi-Standard Compliance: Meets ISO 15711, ASTM G8, ISO 21809, DIN 30670, and CSA Z245.20 standards.
Computer Control System: Fully integrated digital display and computer control for real-time monitoring.

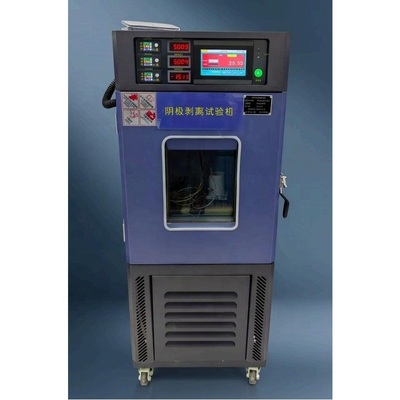

ISO 15711 ASTM G8 Cathodic Disbondment Rresistance Tester ISO 21809 DIN 30670 Pipe Anti-corrosion Coating Varnishes Test Machine

Features: 3-channel Independent Power Supply, High Precision, Research Grade Regional Standards 1.ISO 15711:2003 — Paints and varnishes — Determination of resistance to cathodic disbonding of coatings used for the protection of buried or immersed structures 2.ISO 21809-1:2018 — Petroleum and natural gas industries — External coatings for buried/submerged pipelines, Annex H Cathodic disbondment test (main global standard for 3LPE/3LPP)ISO 3.DIN 30670:2012 (German Standard) — Polyethylene coatings on steel pipes and fittings, cathodic disbondment test for European pipeline projects 4.CSA Z245.20-02 (Canadian Standard) — External polyethylene coating for steel pipe, widely adopted in North America & CIS oil&gas projects 5.ASTM G8 — Standard Test Methods for Cathodic Disbonding of Coated Steel (widely used in American oil & gas industry) Product Overview Cathodic Disbondment Tester is high-precision testing equipment independently developed by LONROY. It is designed for evaluating the cathodic disbondment resistance of pipeline anti-corrosion coatings such as 3LPE, 3LPP, FBE coatings. The instrument adopts three-channel independent power supply architecture, which allows three parallel test groups to run at the same time and greatly improves laboratory test throughput. It integrates a high-precision temperature control system with temperature control accuracy up to ±0.5°C. The inner tank is made of 304 stainless steel for excellent corrosion resistance against sodium chloride electrolyte solution. This tester is widely used in research institutes, universities, coating manufacturers and pipeline inspection laboratories where high test repeatability and precision are required. It simulates the service condition of buried pipelines under cathodic protection, to assess whether the coating will delaminate from steel substrate. Working Principle The tester applies constant cathodic protection potential to the coated steel specimens immersed in NaCl electrolyte inside the temperature-controlled tank. Under preset temperature and polarization potential, the test runs for a specified duration. After the test cycle finishes, operators measure the disbonded radius of coating around the artificial defect, so as to judge the anti-cathodic-disbondment performance of the coating material. Application Scope 1. 3LPE / 3LPP / FBE anti-corrosion coating for oil & gas steel pipelines

2. Coating quality inspection for pipe manufacturers 3. R&D and formulation test of protective coatings 4. Third-party material testing laboratories, university & institute research

ISO 15711 ASTM G8 Cathodic Disbondment Rresistance Tester ISO 21809 DIN 30670 Pipe Anti-corrosion Coating Varnishes Test Machine

Technical Specifications

Item	Parameter
Product Name	Cathodic Disbondment Tester
Model	LR-J017
Power Channels	3 independent power supplies, three specimens tested in parallel
Temperature Range	0℃ ~ 150℃, adjustable
Temperature Control Accuracy	±0.5℃
Temperature uniformity	≤±1℃
DC power supply system	The electrochemical workstation has a 0-12V adjustable range and can handle a 10A current.
Voltage accuracy	±0.05V, allowing for direct viewing of the cathode voltage value.
Power control method	The DC power supply output is controlled in real time using the reference electrode potential.
Electrode configuration	Reference electrode (saturated calomel electrode), test anode platinum electrode.
Cathode voltage value -	-1.5 to 3V adjustable
Test medium	3% sodium chloride solution (or configured according to standard requirements)
Test tank material	304 stainless steel, corrosion-resistant and easy to clean
Power voltage	220V ± 10% 50Hz
