High-speed Plasma Cleaner Material RF Plasma Etching Ashing Processor Plasma Surface Treater Plasma Surface Modification Machine

Large Image : High-speed Plasma Cleaner Material RF Plasma Etching Ashing Processor Plasma Surface Treater Plasma Surface Modification Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

High-speed Plasma Cleaner Material RF Plasma Etching Ashing Processor Plasma Surface Treater Plasma Surface Modification Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1.5%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, OBM, ODM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	RF plasma etching processor , plasma surface modification machine , high-speed plasma cleaner

PRODUCT HIGHLIGHTS

High-Speed Cleaning: Conveyor speed up to 45 mm/s and spot-treatment speed up to 120 mm/s.
Adjustable Speed Control: Logistics conveyor speed adjustable from 0-150mm/s; stroke speed 0-1000mm/s.
Touch Screen Operation: Features a user-friendly touch screen for easy control and monitoring.
Versatile Material Treatment: Ideal for mobile phone glass, computer glass, and electronic hardware components.
Manual Height Adjustment: Equipped with manual height adjustment for precise positioning.
Compact Design: Overall dimensions of 2500x1350x1650 mm fit various production lines.

High-speed Plasma Cleaner Material RF Plasma Etching Ashing Processor Plasma Surface Treater Plasma Surface Modification Machine

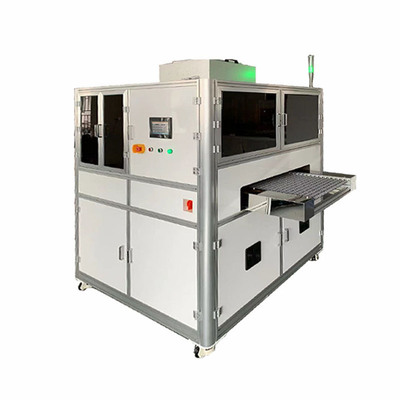

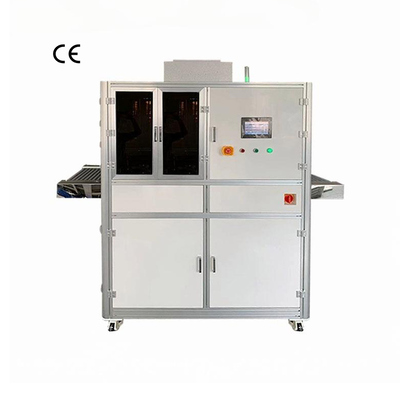

Product Introduction The LR-Z257 is a high-speed plasma cleaning system designed for the surface treatment and cleaning of various materials—such as mobile phone glass, computer glass, and electronic hardware components—to achieve specific surface dyne levels or perform de-plating processes. It features a conveyor speed of up to 45 mm/s and a spot-treatment speed of up to 120 mm/s.

High-speed Plasma Cleaner Material RF Plasma Etching Ashing Processor Plasma Surface Treater Plasma Surface Modification Machine

Technical Specifications

Logistics Conveyor Line Width	600mm
Speed	0—150mm/s, adjustable
Control Mode	Touch Screen
Effective Stroke	600mm
Stroke Speed	0—1000mm/s, adjustable
Height Adjustment	Manual adjustment
Overall Dimension	2500(L)1350(W)1650(H) mm
Power Supply	220V/20A, 10kw
Air Source	0.6MPa
