Precision Gantry Nano-coating Machine Offline Sprayer Coater Automated AF Spraying Device Anti-Fingerprint Film Coating Device

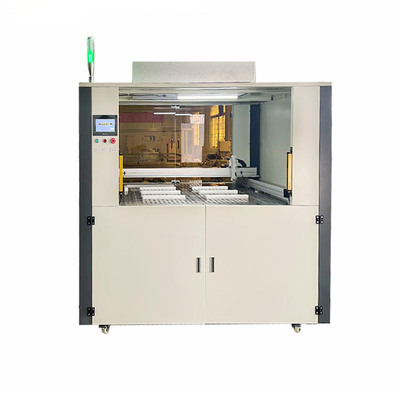

Large Image : Precision Gantry Nano-coating Machine Offline Sprayer Coater Automated AF Spraying Device Anti-Fingerprint Film Coating Device

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Precision Gantry Nano-coating Machine Offline Sprayer Coater Automated AF Spraying Device Anti-Fingerprint Film Coating Device

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1.5%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, OBM, ODM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	Gantry nano-coating machine , Offline anti-fingerprint sprayer coater , Automated AF spraying device

PRODUCT HIGHLIGHTS

Class 100 Filtration System: Internal high-efficiency filtration ensures clean coating environment.
Programmable Motion Paths: X and Y axis paths are programmable for complex part coating.
Adjustable Speed and Flow: Speed up to 800mm/s and flow rate adjustable for optimal results.
Versatile Application Scope: Suitable for AF nano-coating on semiconductors and irregular parts.
Optional Control Modes: Choice between Touch Screen or Industrial PC control systems.
Compact Design Dimensions: Overall size 2100x1400x1980mm fits standard production lines.

Precision Gantry Nano-coating Machine Offline Sprayer Coater Automated AF Spraying Device Anti-Fingerprint Film Coating Device

Product Introduction This equipment is a precision offline nano-coating machine (also known as an AF spraying machine). It features fully enclosed X- and Y-axis guide rails and an internal Class 100 high-efficiency filtration system. The X- and Y-axis motion paths are programmable, while speed and flow rates are fully adjustable, allowing customers to configure settings to achieve optimal results. Application Scope This equipment is used for AF (anti-fingerprint) nano-coating on semiconductors and irregularly shaped parts.

Precision Gantry Nano-coating Machine Offline Sprayer Coater Automated AF Spraying Device Anti-Fingerprint Film Coating Device

Technical Specifications

X Axis Travel	1300mm
Y Axis Travel	850mm
Z Axis Travel	200mm
Flow Rate	5g/30s, adjustable
X/Y Axis Speed	0~800mm/s
Control Mode	Touch Screen / Industrial PC (Optional)
Air Pressure	0.6Mpa
Voltage	200V,16A
Overall Dimension	2100mmx1400mmx1980mm
