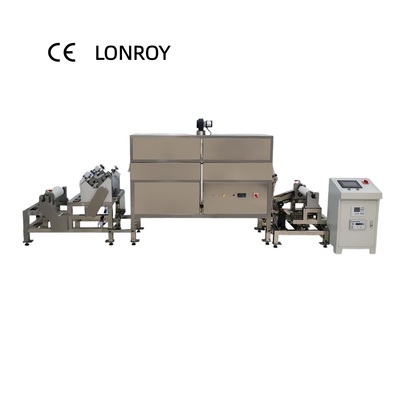

Servo Motor Continuous Coating Machine Roll-to-Roll Coater Wire-bar Coating Device R2R Film Coating Tester Web Coating System

Large Image : Servo Motor Continuous Coating Machine Roll-to-Roll Coater Wire-bar Coating Device R2R Film Coating Tester Web Coating System

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Servo Motor Continuous Coating Machine Roll-to-Roll Coater Wire-bar Coating Device R2R Film Coating Tester Web Coating System

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1.5%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, OBM, ODM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	Servo Motor Roll-to-Roll Coater , Wire-bar Film Coating Tester , R2R Web Coating System

PRODUCT HIGHLIGHTS

Customizable Production Speed: Standard speed 0.2-2m/min, other speeds customizable to suit specific process requirements.
Dual Unwinding Shaft Options: Includes manual mechanical shaft; optional 3-inch air expansion shaft available for flexibility.
High-Quality Coating Bars: Comes with 2 standard bars (1-400 microns); selectable specifications available for different needs.
Stainless Steel Construction: Oven inner walls and ducts made of 304 stainless steel for durability and corrosion resistance.
Servo Motor Drive System: Uses servo motors for coating and rewinding to ensure active synchronization and precise tension control.
Comprehensive Safety Features: Equipped with emergency stop buttons, warning indicators, and independent start/stop controls.

Servo Motor Continuous Coating Machine Roll-to-Roll Coater Wire-bar Coating Device R2R Film Coating Tester Web Coating System

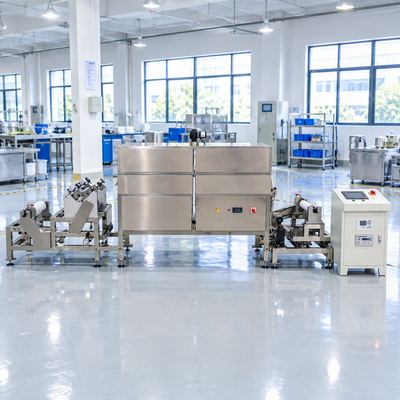

Introduction:This machine is primarily designed for roll-to-roll coating of various materials. Main Raw Materials:Paper, film, and other roll materials. Adhesive:Water-based coatings, solvent-based coatings, etc. Coating Method:Wire-bar coating. Main Equipment 1.Unwinding unit (dual-station type) 2.Coating unit (multi-functional coating) 3.Drying oven (1.5m length, single temperature zone) 4.Rewinding unit (single-station center winding) 5.Machine frame and transition section 6.Electrical control system Unwinding unit (1 set) 1.Type: Single unwinding station 2.Effective unwinding width: 300mm 3.Effective unwinding diameter: ≤φ350mm 4.Unwinding shaft: Manual mechanical type / 3" (Φ76mm) air expansion shaft (optional) 5.Unwinding tension control: Automatic tension control (magnetic powder brake, tension controller) 6.Frame: Welded stainless steel Coating unit 1.Coating method: Wire-bar coating 2.Effective coating width: 260mm 3.Coating parameters: 4.Backing roller: Material: Chrome-plated steel roller 5.Coating bar: 1–400 microns (selectable; one specification per bar; machine comes with 2 bars as standard) 6.Drive: Servo motor 7.Coating roller operation: Reverse rotation 8.Control box: Small control box equipped with warning indicators and an emergency stop button; controls include independent start/stop, speed adjustment, and pneumatic controls for coating operations 9.Exhaust hood: Exhaust hood installed at the coating section; allows for direct connection of piping to vent exhaust gas Drying system 1.Type: Vertical arch-bridge style; pneumatic top-opening (single-sided) 2.Length: Oven: 1.5 meters, 2 temperature zones 3.Temperature:30–120°C ±3°C; heated by external stainless steel electric heating tubes; hot air circulation via centrifugal fan; automatic proportional temperature control using solid-state voltage regulators (SCR modules) 4.Thermal Insulation:60mm thick fiberglass insulation layer 5.Guide Rollers:Hard aluminum alloy guide rollers (Φ60mm, surface treated with brown hardening process to HV700, precision ground); 3 rollers per temperature zone 6.Oven Structure:Oven inner walls and internal air ducts made of 304 stainless steel; adjustable baffles installed on both hot air circulation and cold air intake vents 7.Hot Air Circulation: Hot air circulation driven by one 0.55kW centrifugal fan; airflow control dampers installed on both circulation ducts and exhaust ducts Rewinding Mechanism 1.Type:Single-station center winding 2.Effective Rewinding Width: 300mm 3.Effective Rewinding Diameter:φ350mm 4.Rewinding Shaft:3" (Φ76mm) automatic air-expansion shaft (optional) 5.Drive System: Active synchronization via servo motor 6.Rewinding Tension Control: Servo motor torque control 7.Tension Control Method: Digital display for target value input 8.Machine Frame and Transition Section 9.Type:Column-supported arch bridge style 10.Transition Rollers: Aluminum alloy transition rollers (Φ60mm, precision ground, statically balanced); surface treated with brown hardening process to HV700 Electrical Control System 1. Type: Centralized control system with one control console (touchscreen program control with HMI interface) Servo motor: Domestic brand; Pneumatic components: Taiwan brand; Low-voltage electrical components: Domestic brand; Temperature controller: Domestic brand; Electric heating system: Domestic brand; 2.Small control boxes are provided for both the coating head and the conditioning section, allowing for independent start/stop and speed adjustment; emergency stop buttons are also included. 3.Operation manual.

Servo Motor Continuous Coating Machine Roll-to-Roll Coater Wire-bar Coating Device R2R Film Coating Tester Web Coating System

Technical Specifications

Effective coating width	260mm
Roll surface width	300mm
Mechanical speed	2m/min (Production speed 0.2~2m/min, subject to process; other speeds customizable)
Unwinding diameter	≤φ350mm
Winding diameter	≤φ350mm
Heating & drying method	External stainless steel electric heating tube heating, hot air circulation by centrifugal fan
Oven length	1.5m X2
Temperature control	30~120℃±2℃
Total installed power	Approx.9kW (Electric heating power approx.8kW)
Tension control mode	Automatic control
Web guiding control mode	Automatic web guiding
Overall equipment dimension	(L×W×H) 4800x500x1700mm
