Dual Plasma Surface Activation Coater In-line Plasma Nano Coating Machine Glass Screen Protectors Cleaning AF Coating Processor

Large Image : Dual Plasma Surface Activation Coater In-line Plasma Nano Coating Machine Glass Screen Protectors Cleaning AF Coating Processor

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Dual Plasma Surface Activation Coater In-line Plasma Nano Coating Machine Glass Screen Protectors Cleaning AF Coating Processor

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1.5%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, OBM, ODM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	Dual Plasma Surface Activation Coater , In-line Plasma Nano Coating Machine , AF Coating Processor for Glass Protectors

PRODUCT HIGHLIGHTS

Customizable Conveyor Width: Conveyor width is 600mm and can be customized as per customer requirements.
High Production Capacity: Capable of processing 2500 pieces per hour for 5.5-inch workpieces.
Dual Plasma Stations: Equipped with 2 plasma stations and 2 spray guns for efficient coating.
AF Coating Application: Specifically designed for anti-fingerprint coating on tempered glass screen protectors.
Touch Screen Control: Features a user-friendly touch screen for easy operation and control.
Compact Footprint:Designed with a compact size to save space in production lines.

Dual Plasma Surface Activation Coater In-line Plasma Nano Coating Machine Glass Screen Protectors Cleaning AF Coating Processor

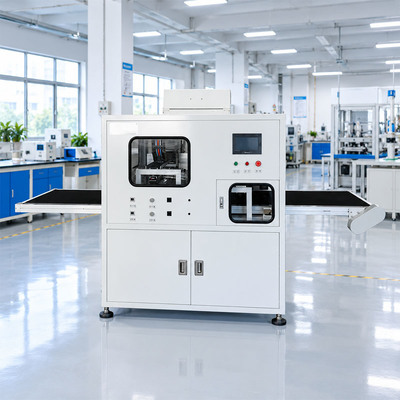

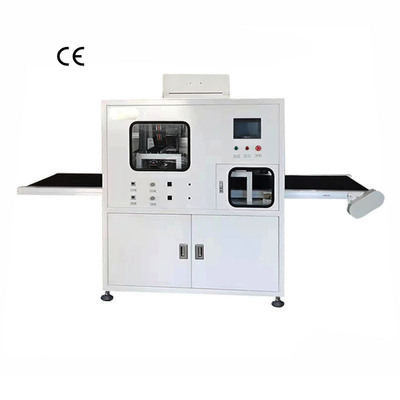

Product Overview The LR-Z262 is an economical, in-line plasma nano-coating machine. Its process is specifically tailored for applying anti-fingerprint (AF) coatings to high-end tempered glass screen protectors and cover glass for mobile phones and tablets, enhancing wear resistance. The system features a compact footprint and is designed for the cleaning and AF coating of these components.

Dual Plasma Surface Activation Coater In-line Plasma Nano Coating Machine Glass Screen Protectors Cleaning AF Coating Processor

Technical Specifications

Conveyor width	W=600mm (customizable as per customer requirements)
Quantity of plasma stations	2 pcs
Quantity of spray guns	2 pcs (1 pc optional)
Feeding port size	500mm
Discharging port size	500mm
Capacity	2500pcs/h (for 5.5-inch workpiece)
Control mode	Touch screen
Voltage	220V
Power	3.5kW
Overall dimension	3000mm×1450mm×1650mm
