3-axis Precision Spraying Machine AF AG AR Nano Functional Coating Sprayer Thin Film Nano Coating Equipment XYZ Coating Device

Large Image : 3-axis Precision Spraying Machine AF AG AR Nano Functional Coating Sprayer Thin Film Nano Coating Equipment XYZ Coating Device

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

3-axis Precision Spraying Machine AF AG AR Nano Functional Coating Sprayer Thin Film Nano Coating Equipment XYZ Coating Device

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1.5%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, OBM, ODM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	3-axis nano coating sprayer , XYZ thin film coating equipment , AF AG AR functional coating machine

PRODUCT HIGHLIGHTS

3-Axis Precision System: Fully enclosed 3-axis automatic spraying with 1130mm X, 205mm Y, and 1065mm Z travel.
Nano Coating Application: Specialized for AF, AS, AG, and AR nano-coatings on glass, lenses, plastics, and irregular parts.
PLC Control Interface: Advanced PLC control combined with a touch screen for precise operation and monitoring.
High-Speed Reciprocation: Adjustable reciprocating speed ranging from 0 to 1200mm/s for versatile processing needs.
Safety & Environmental Design: Integrated exhaust collection system ensures safety and compliance in enclosed chamber.

3-axis Precision Spraying Machine AF AG AR Nano Functional Coating Sprayer Thin Film Nano Coating Equipment XYZ Coating Device

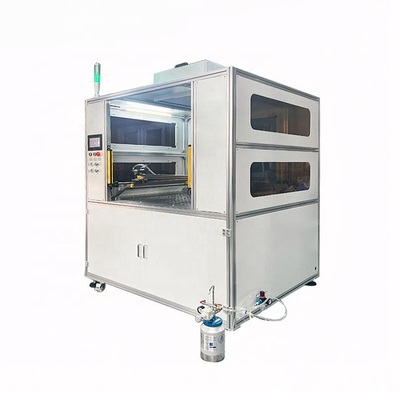

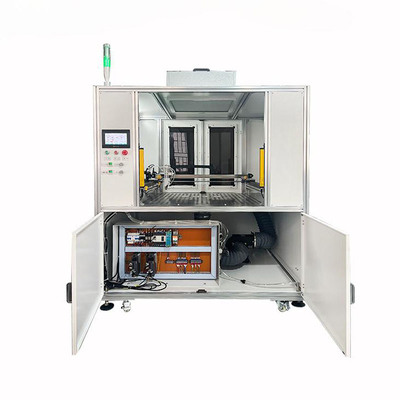

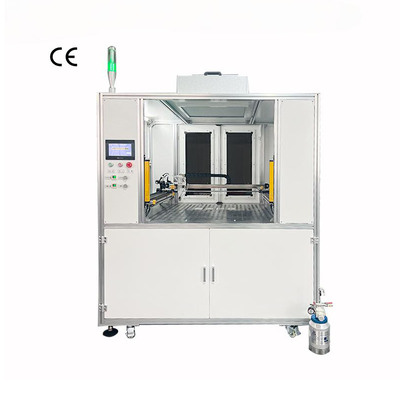

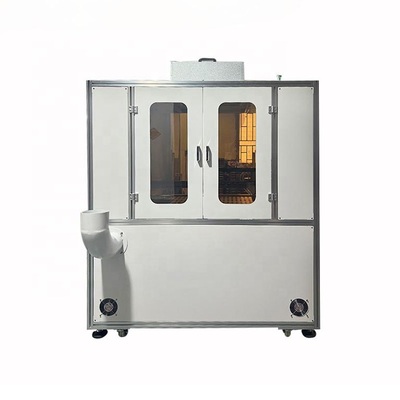

Product Introduction The LR-Z261 3-axis precision spraying machine is a fully enclosed, 3-axis automatic precision spraying system developed by LONROY. Primarily used for applying nano-coatings—such as AF (anti-fingerprint), AS, AG, and AR—it performs precision liquid spraying on workpiece surfaces. Featuring a fully enclosed chamber design with an integrated exhaust collection system, it ensures safety and environmental compliance, making it ideal for nano-coating applications on glass, cover lenses, plastics, and irregularly shaped components.

3-axis Precision Spraying Machine AF AG AR Nano Functional Coating Sprayer Thin Film Nano Coating Equipment XYZ Coating Device

Technical Specifications

X-axis travel	1130MM
Y-axis travel	205MM
Z-axis effective travel	1065MM
Control mode	PLC + Touch Screen
Power supply	220V 1500W
Air source	0.6MPA
Number of axes	3
Reciprocating speed	0~1200MM/S (adjustable)
Product dimension	1540MM(L) × 1600MM(W) × 2200MM(H) (subject to actual size)
