Compact Inline Plasma Nano-coating Machine Plasma Surface AF Coating System Coater Anti-Fingerprint Nano Film Deposition Device

Large Image : Compact Inline Plasma Nano-coating Machine Plasma Surface AF Coating System Coater Anti-Fingerprint Nano Film Deposition Device

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Compact Inline Plasma Nano-coating Machine Plasma Surface AF Coating System Coater Anti-Fingerprint Nano Film Deposition Device

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1.5%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, OBM, ODM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	Inline Plasma Nano-coating Machine , Plasma Surface AF Coating System , Anti-Fingerprint Nano Film Deposition Device

PRODUCT HIGHLIGHTS

Customizable Conveyor Width: Standard 600mm width with full customization options available.
Adjustable Flow Rate: Flow rate of 16g/60s is fully adjustable to meet specific production needs.
High Production Capacity: Capable of processing 3500 pieces per hour for 5.5-inch screens.
Precision Three-Axis System: Features a three-axis system with a single spray gun for precise coating.
Touch Screen Control: Equipped with an intuitive touch screen for easy operation and monitoring.

Compact Inline Plasma Nano-coating Machine Plasma Surface AF Coating System Coater Anti-Fingerprint Nano Film Deposition Device

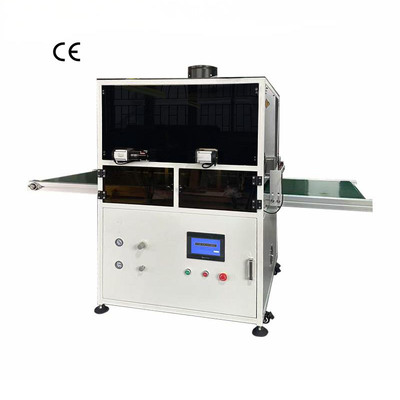

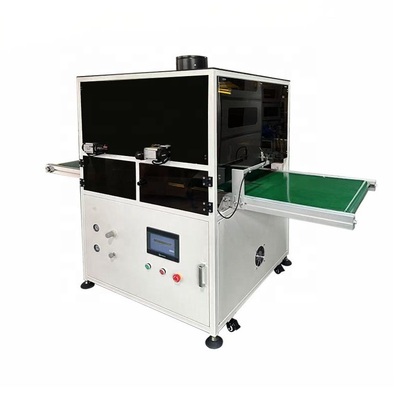

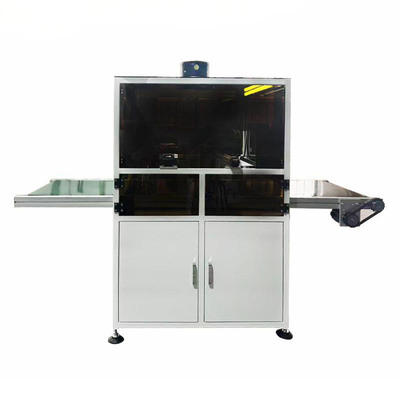

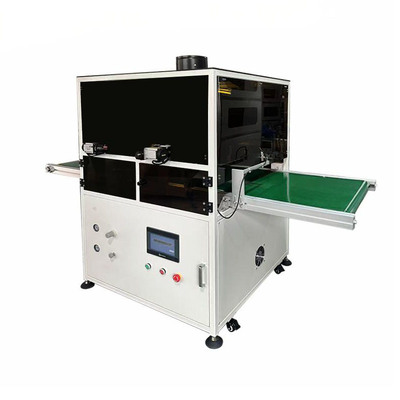

Product Introduction The LR-Z260 is a compact, inline plasma nano-coating machine. It features a three-axis system and a single spray gun, with precision-adjustable settings and an analog pressure gauge. The process is specifically designed for applying anti-fingerprint (AF) coatings to large-format tempered glass and cover glass used in high-end smartphones and tablets, thereby enhancing wear resistance. Key advantages include high efficiency, superior coating quality, and reduced consumption of anti-fingerprint fluid, with fully adjustable speed and flow rates. Applications This equipment is used for applying AF coatings to smartphone cover glass or touch panels (TP). Compared to vacuum coating methods, it offers significant advantages in terms of lower costs and higher efficiency.

Compact Inline Plasma Nano-coating Machine Plasma Surface AF Coating System Coater Anti-Fingerprint Nano Film Deposition Device

Technical Specifications

Conveyor Width	W=600mm (Customizable)
Flow Rate	16g/60s (Adjustable)
Capacity	3500 pcs/h (5.5 inch)
Control Mode	Touch Screen
Axis Quantity	3 Axes
Plasma Unit Quantity	1 pc
Spray Gun Quantity	1 pc
Air Pressure	0.6Mpa
Power Supply	220V, 3KW
Baking Oven	Optional
Overall Dimension	2000mm×1100mm×1100mm
