Film Transfer Glue Coater Roll Sizing Machine Roll Glue Applicator Electric Film Transfer Sizer Heating Glue Coating Equipment

Large Image : Film Transfer Glue Coater Roll Sizing Machine Roll Glue Applicator Electric Film Transfer Sizer Heating Glue Coating Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Film Transfer Glue Coater Roll Sizing Machine Roll Glue Applicator Electric Film Transfer Sizer Heating Glue Coating Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1.5%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, OBM, ODM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	Electric Film Transfer Glue Coater , Heating Roll Glue Applicator Machine , Lab Film Transfer Sizing Machine

PRODUCT HIGHLIGHTS

Simple to operate;
Wide adjustment range for sizing application rate;
Low material consumption; only a small amount of sizing solution is needed for sampling;
Application rate is minimally affected by the solids content of the sizing solution;
Application rate is minimally affected by the paper's absorbency;
Application rate is minimally affected by the moisture content of the base paper;
Sizing application rates can differ between the two sides of the paper.

Film Transfer Glue Coater Roll Sizing Machine Roll Glue Applicator Electric Film Transfer Sizer Heating Glue Coating Equipment

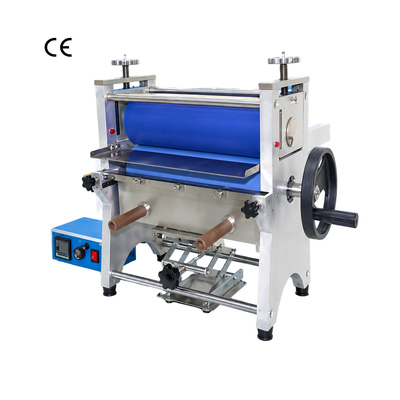

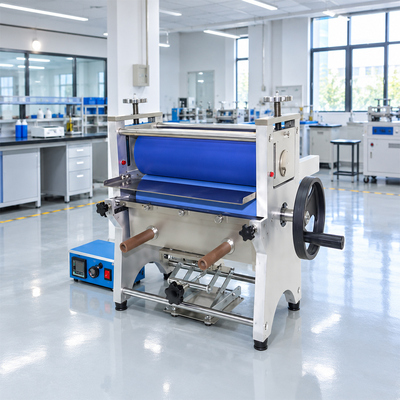

Product Introduction The film transfer sizer is suitable for surface sizing, pigmented sizing, and coating applications, accommodating a wide range of paper grades with sizing or coating weights ranging from 0.5 to 12 g/m² (applied to either one or both sides). The process begins by using a metering rod to pre-meter the sizing solution or coating—maintained at a specific temperature—onto the sizing roll, creating a uniform film. This film is then transferred to the material positioned on the sizing bed within the nip; as the paper passes through the nip formed by two counter-rotating sizing rolls, the film transfers onto the paper web, resulting in a uniform coating layer. Because the film is pre-metered, it is both thin and consistent. Key features of this equipment include uniform coating application, high repeatability of coating thickness, ease of operation, and low material consumption. It is ideal for laboratory demonstrations, small-scale sizing trials and sample preparation, and research into sizing formulations.

Film Transfer Glue Coater Roll Sizing Machine Roll Glue Applicator Electric Film Transfer Sizer Heating Glue Coating Equipment

Technical Specifications

Upper roller	Stainless steel with rubber coating, hardness 45
Lower roller	Stainless steel with rubber coating, hardness 70
Coated roller diameter	100mm
Pressurization mode	Manual / Automatic (optional)
Metering method	Coating bar
Rubber coating thickness	30mm
Effective width	300mm
Glue application plate	330X420mm
Power	80W
Heat preservation mode	Electric heating
Temperature display mode	Digital display (programmable)
Temperature range	Ambient temperature - 100℃
Coating weight range	0.5-12g/㎡
Glue application method	Single-sided coating / Double-sided coating (optional)
Power supply voltage	220V 50Hz
